Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 18, 2019, 07:26 AM

  • B 1347_B 1346 _09182019_004737.mp4

Date
09/18/2019
W/O
787657
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z01126
PipeID
P25242
Time
12:26 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6934
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Woods
Location Code
E
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
08
Purpose
Routine Assessment
Project
WO_787657_TV30028_SEP2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
B 1347
Downstream MH
B 1346
Dir. of Survey
Downstream
Length Surveyed
235.9 ft.
Total Length
235.9 ft.
Structural Index
3
Structural Quick
4121
Structural Rating
6
O&M Index
2
O&M Quick
3H2H
O&M Rating
227
Overall Index
3
Overall Quick
—
Overall Rating
233
Pipe schematic from manhole B 1347 to B 1346
MH: B 1347MH: B 1346downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 13470 ft. MWM - Water Mark, 40 %of cross sectional area5.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start9.5 ft. DSC - Deposits Settled Compacted, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start33.5 ft. MGO - General Observation - CAMERA UNSTABLE DUE TO DEBRIS223 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO232.1 ft. FM - Fracture Multiple, from 10 to 03 o'clock, within 8 inches of joint: NO235.2 ft. DSC - Deposits Settled Compacted, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish235.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish235.3 ft. MGO - General Observation - CONNECTION AT 9 O'CLOCK ABANDONED235.9 ft. AMH - Downstream Manhole, Survey Ends - B 1346

Observation photos (3)

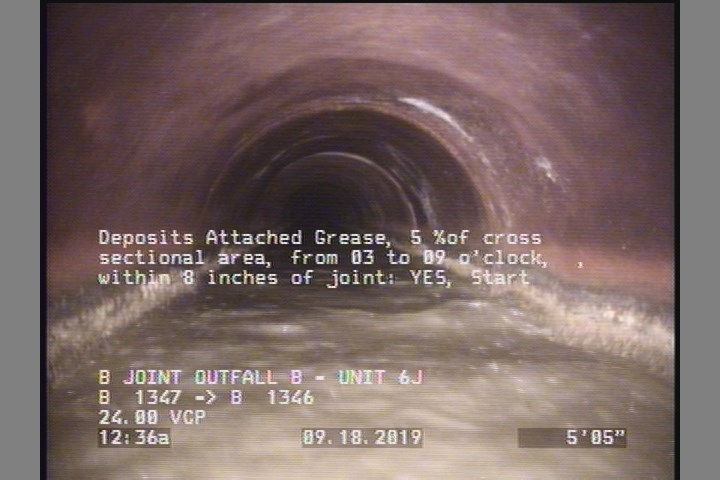

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    5.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

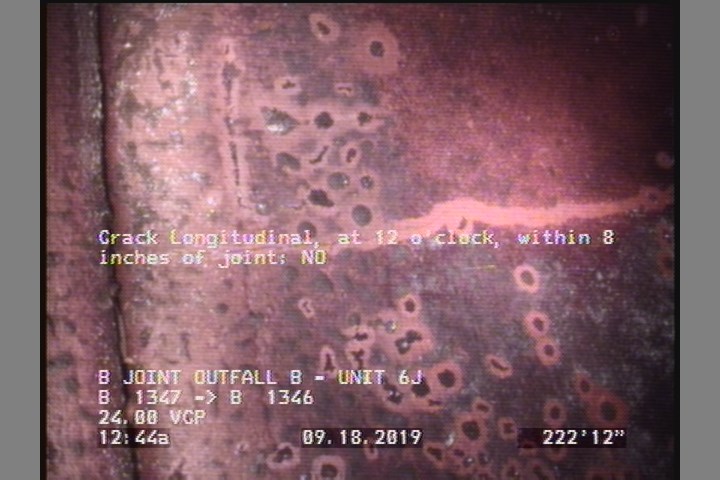

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO

    223 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO

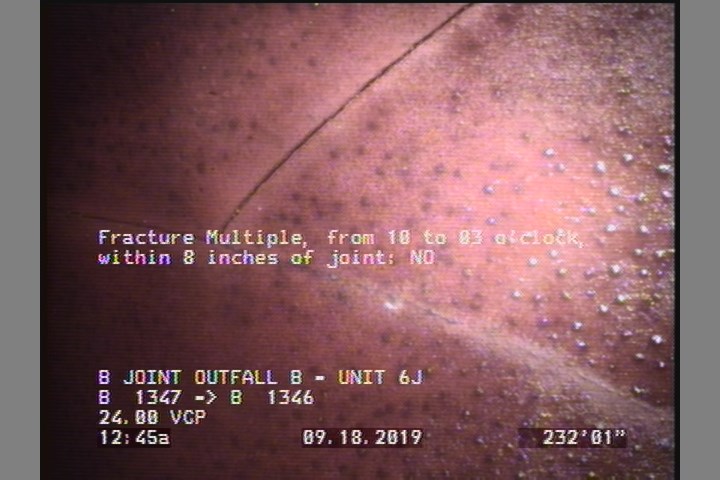

  • Fracture Multiple, from 10 to 03 o'clock, within 8 inches of joint: NO

    232.1 ft. - Fracture Multiple, from 10 to 03 o'clock, within 8 inches of joint: NO

All inspections of P25242Work order 787657

Observations (12)

DistanceCodeObservation
235.9AMHB 1346
235.3MGOCONNECTION AT 9 O'CLOCK ABANDONED
235.2DSC—
0MWL—
5.4DAGS—
235.2DAGS—
9.5DSC—
33.5MGOCAMERA UNSTABLE DUE TO DEBRIS
232.1FM—
0AMHB 1347
223CL—
0MWM—

Properties (6)

additional_info
SC378533
custom_field_two
3
customer
LACSD
datetime
2019-09-18T00:26:49-07:00
documentation
PROPIPE
is_lateral_inspection
false
