Wastewater/Activity/PacpInspection/1.0Oct 25, 2019, 11:53 AM
B 1315_B 1314 _10252019_050708.mp4
- Date
- 10/25/2019
- W/O
- 787657
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z01126
- PipeID
- P25210
- Time
- 4:53 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K7072
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Woods
- Location Code
- E
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_787657_TV30028_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 22 in.
- Width
- 22 in.
- Upstream MH
- B 1314
- Downstream MH
- B 1315
- Dir. of Survey
- Upstream
- Length Surveyed
- 77.1 ft.
- Total Length
- 77.1 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

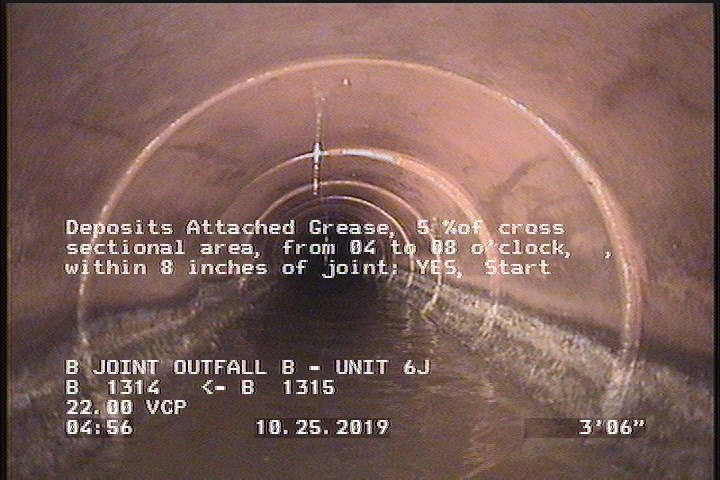

3.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

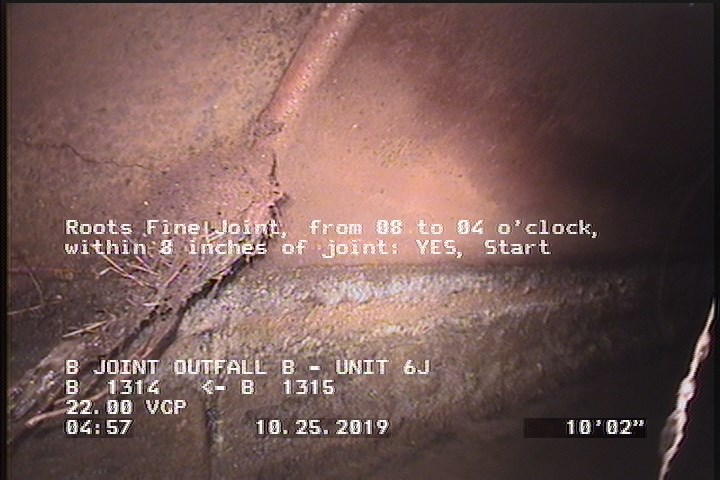

10.2 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

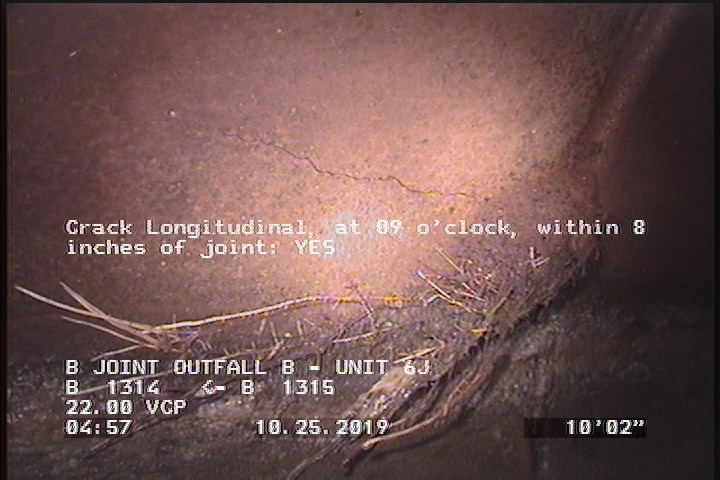

10.2 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

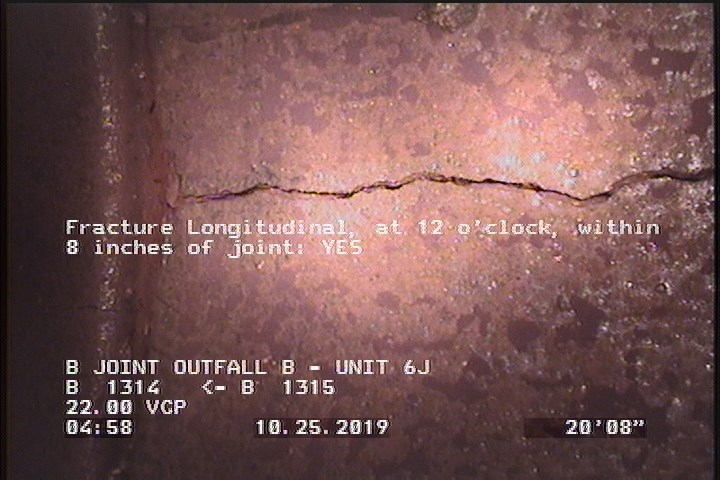

20.7 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 77.1 | AMH | B 1315 |
| 0 | MWL | — |
| 74.3 | DAGS | — |
| 10.2 | RFJ | — |
| 77.1 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 10.2 | CL | — |
| 74.3 | RFJ | — |
| 20.7 | FL | — |
| 0 | MWM | — |
| 3.5 | DAGS | — |
| 0 | AMH | B 1314 |
Properties (6)
- additional_info
- SC378672
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-10-25T04:53:02-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
