Wastewater/Activity/PacpInspection/1.0Oct 22, 2019, 05:48 PM
B 1311_B 1310 _10222019_110332.mp4
- Date
- 10/22/2019
- W/O
- 787657
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z01126
- PipeID
- P25206
- Time
- 10:48 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K7068
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASEDENA
- Loc. details
- Woods
- Location Code
- E
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_787657_TV30028_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 22 in.
- Width
- 22 in.
- Upstream MH
- B 1311
- Downstream MH
- B 1310
- Dir. of Survey
- Downstream
- Length Surveyed
- 103.5 ft.
- Total Length
- 103.5 ft.
- Structural Index
- 3
- Structural Quick
- 4123
- Structural Rating
- 10
- O&M Index
- 3
- O&M Quick
- 4111
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (5)

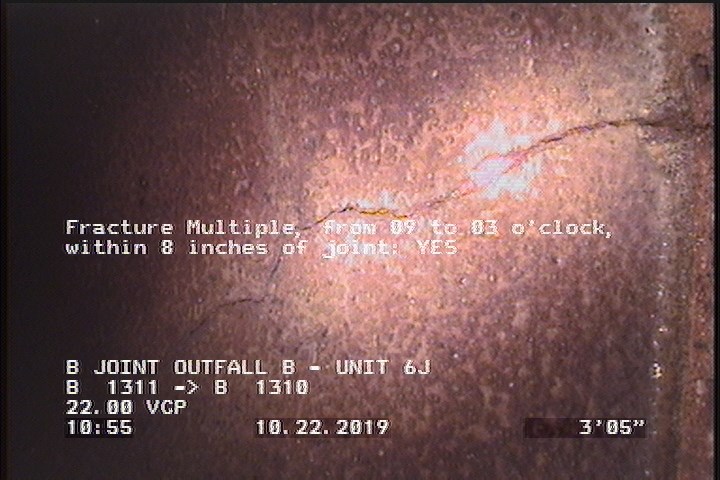

3.4 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

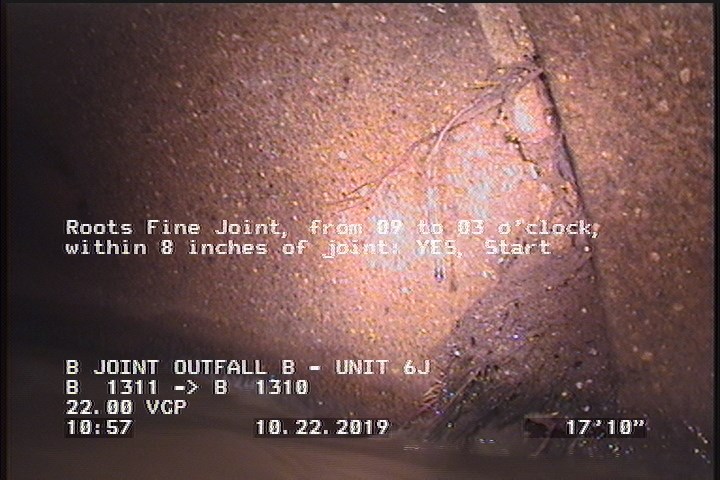

17.9 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

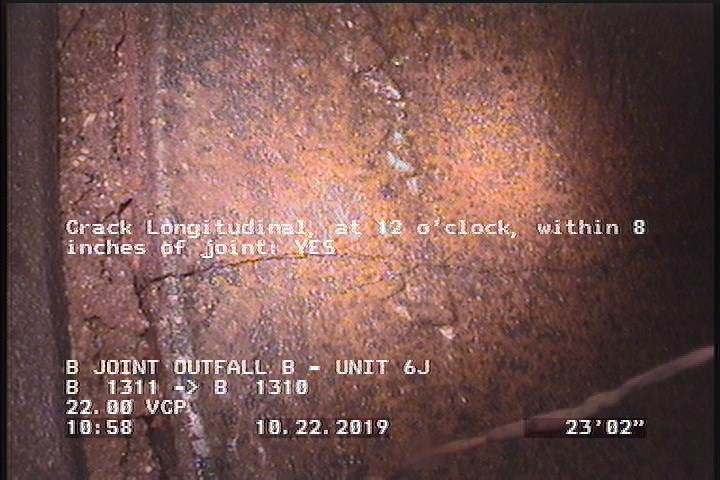

23.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

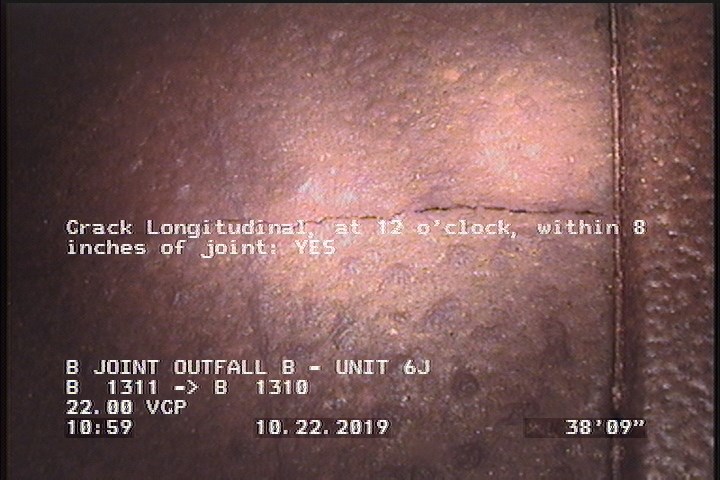

38.8 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

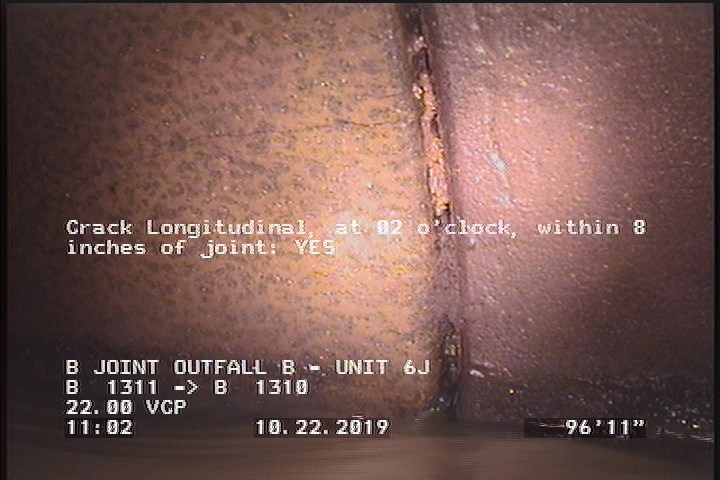

96.8 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 38.8 | CL | — |
| 103.5 | AMH | B 1310 |
| 17.9 | RFJ | — |
| 3.4 | FM | — |
| 23.1 | CL | — |
| 0 | MWL | — |
| 0 | AMH | B 1311 |
| 0 | MWM | — |
| 101.8 | RFJ | — |
| 96.8 | CL | — |
Properties (6)
- additional_info
- SC378668
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-10-22T10:48:39-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
