Wastewater/Activity/PacpInspection/1.0Oct 16, 2019, 06:33 PM
B 1290_B 1289 _10162019_114742.mp4
- Date
- 10/16/2019
- W/O
- 787657
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z01126
- PipeID
- P25185
- Time
- 11:33 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6818
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_787657_TV30028_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 22 in.
- Width
- 22 in.
- Upstream MH
- B 1290
- Downstream MH
- B 1289
- Dir. of Survey
- Downstream
- Length Surveyed
- 91.6 ft.
- Total Length
- 91.6 ft.
- Structural Index
- 3
- Structural Quick
- 4131
- Structural Rating
- 11
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (5)

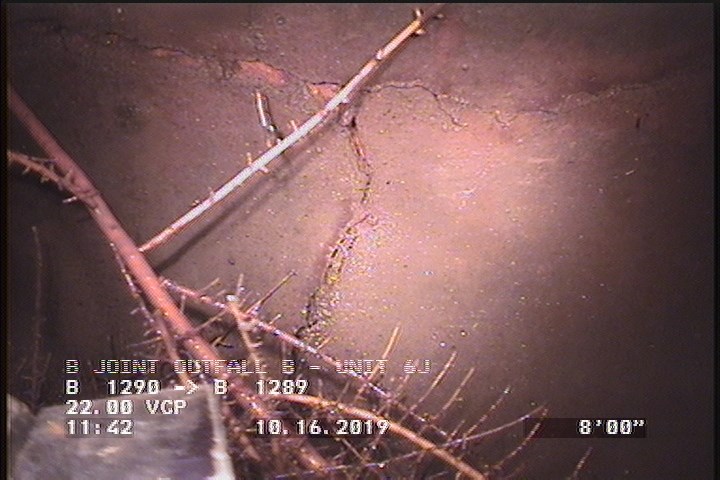

8 ft. - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR, Start

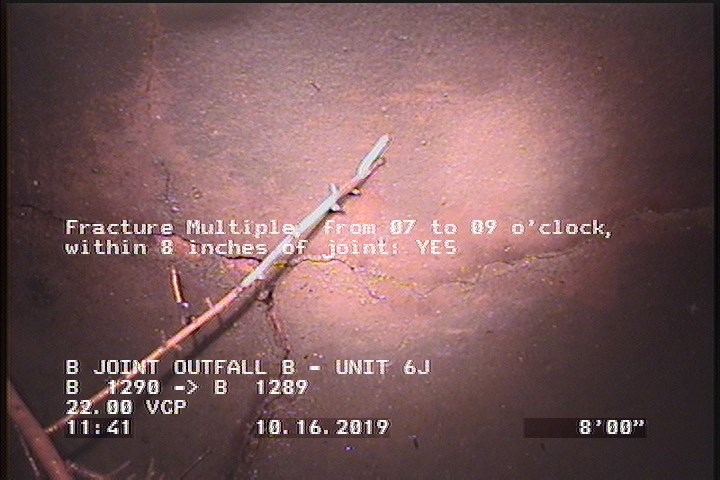

8 ft. - Fracture Multiple, from 07 to 09 o'clock, within 8 inches of joint: YES

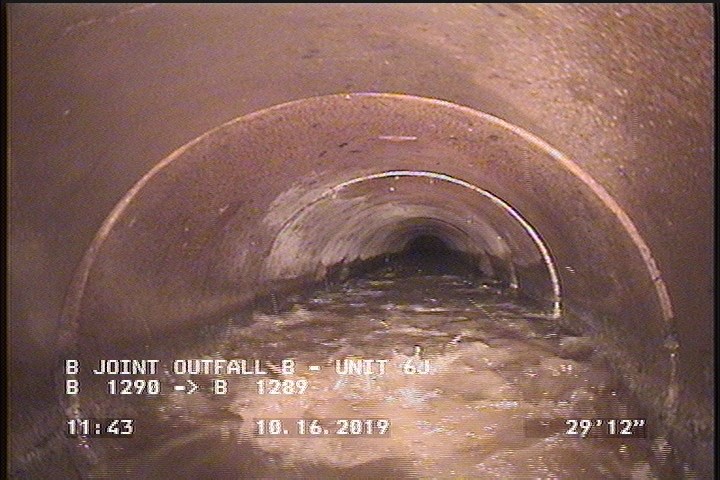

30 ft. - Water Level, Sag in pipe, 15 %of cross sectional area, Start

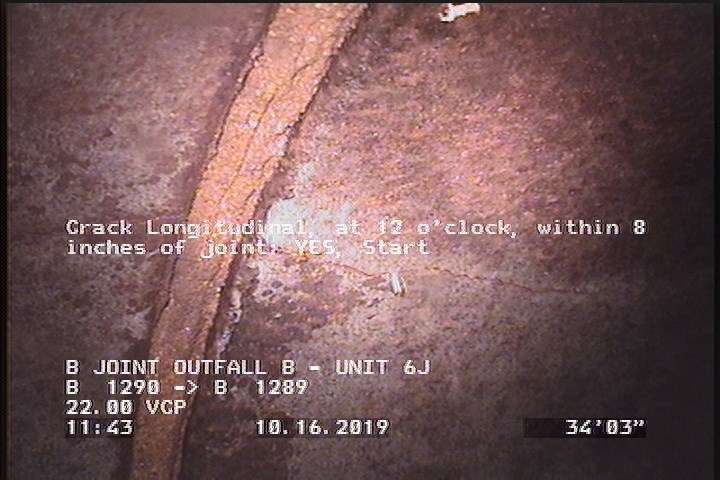

34.3 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

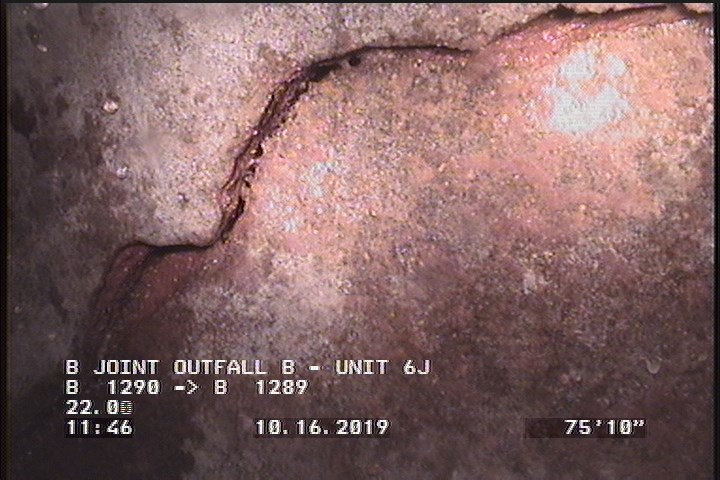

75.7 ft. - Fracture Spiral, from 01 to 05 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | B 1290 |
| 8 | RMJ | — |
| 91.6 | AMH | B 1289 |
| 8 | FM | — |
| 75.7 | FS | — |
| 50.7 | CL | — |
| 30 | MWLS | — |
| 34.3 | CL | — |
| 88.4 | MWLS | — |
| 50.7 | RMJ | — |
Properties (5)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-10-16T11:33:02-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
