Wastewater/Activity/PacpInspection/1.0Sep 5, 2019, 06:46 AM
B 1423_B 1422 _09042019_235949.mp4
- Date
- 09/04/2019
- W/O
- 787657
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z01126
- PipeID
- P25135
- Time
- 11:46 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6923
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_787657_TV30028_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- B 1423
- Downstream MH
- B 1422
- Dir. of Survey
- Downstream
- Length Surveyed
- 181.6 ft.
- Total Length
- 181.6 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

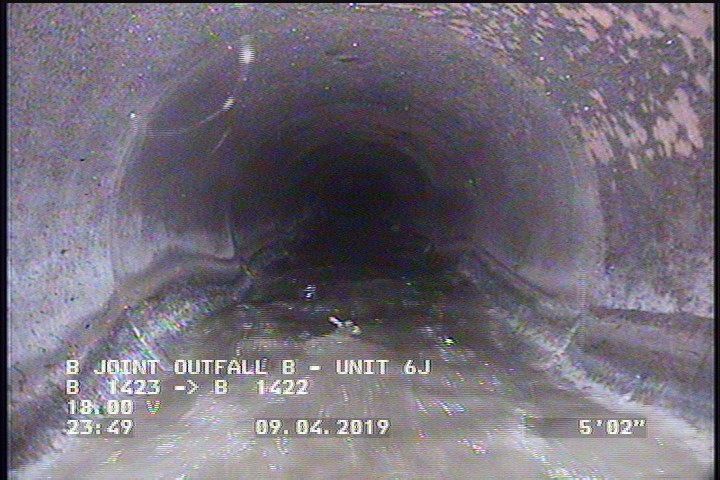

5.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

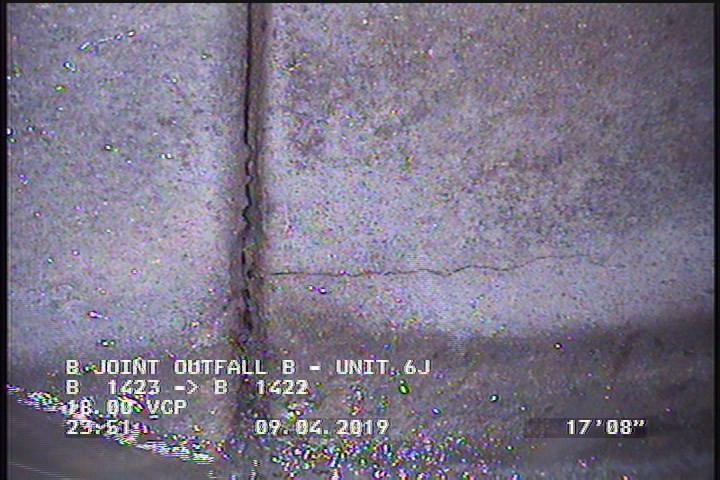

7.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

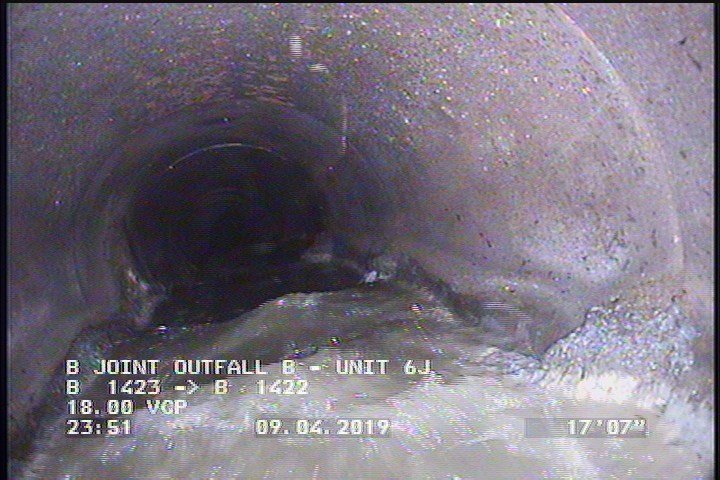

17.6 ft. - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR, Start
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 135.4 | TF | ROOTS |
| 7.9 | CM | — |
| 31.8 | TFC | — |
| 179.7 | CM | — |
| 181.6 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 163.4 | MWL | — |
| 181.6 | AMH | B 1422 |
| 5.2 | DAGS | — |
| 0 | MWL | — |
| 85 | TFC | — |
| 17.6 | RMJ | — |
| 0 | AMH | B 1423 |
| 82.5 | TFC | — |
| 143 | TB | — |
| 179.7 | DAGS | — |
| 0 | MWM | — |
| 140.6 | TB | — |
| 34.5 | TFC | — |
| 179.7 | RMJ | — |
Properties (6)
- additional_info
- SC378520
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-09-04T23:46:54-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
