Wastewater/Activity/PacpInspection/1.0Sep 6, 2019, 06:34 AM
B 1418_B 1417 _09052019_234645.mp4
- Date
- 09/05/2019
- W/O
- 787657
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z01126
- PipeID
- P25130
- Time
- 11:34 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6924
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_787657_TV30028_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- B 1418
- Downstream MH
- B 1417
- Dir. of Survey
- Downstream
- Length Surveyed
- 191.4 ft.
- Total Length
- 191.4 ft.
- Structural Index
- 4
- Structural Quick
- 4100
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

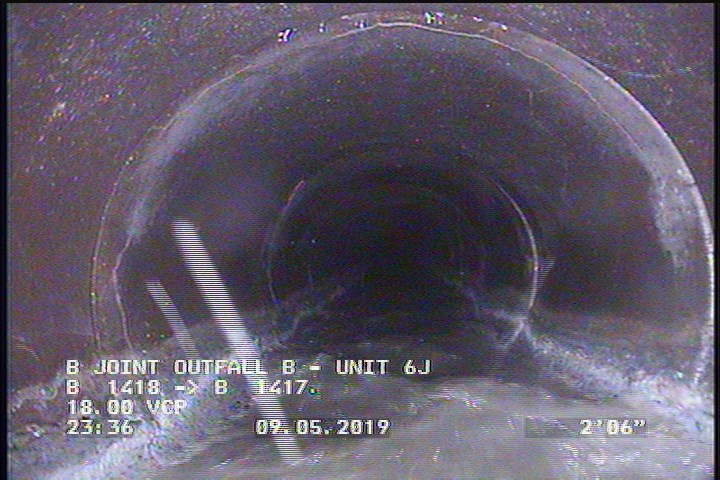

2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

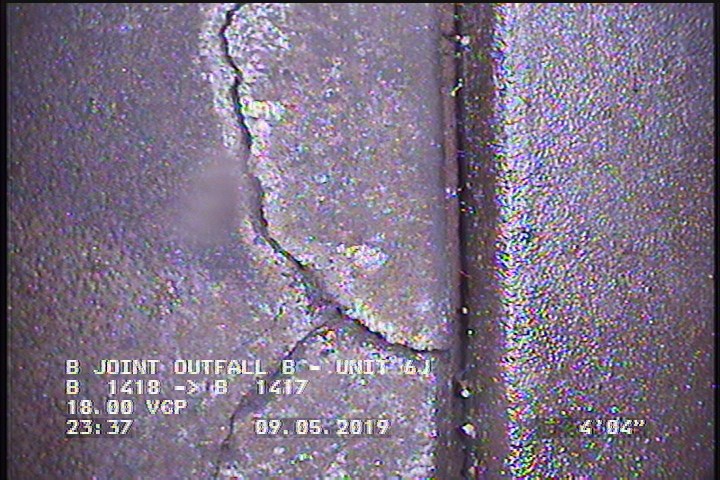

4.3 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 189.8 | FM | — |
| 0 | MWL | — |
| 191.4 | AMH | B 1417 |
| 43.5 | TFC | — |
| 4.3 | FM | — |
| 0 | MWM | — |
| 0 | AMH | B 1418 |
| 2.5 | DAGS | — |
| 143.8 | TFC | — |
| 40.6 | TFC | — |
| 92.2 | TFC | — |
| 140.4 | TFC | — |
| 89.5 | TFC | — |
| 189.8 | DAGS | — |
Properties (6)
- additional_info
- SC378521
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-09-05T23:34:17-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
