Wastewater/Activity/PacpInspection/1.0Sep 6, 2019, 08:05 AM
B 1413_B 1412 _09062019_011155.mp4
- Date
- 09/06/2019
- W/O
- 787657
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z01126
- PipeID
- P25125
- Time
- 1:05 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6924
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_787657_TV30028_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- B 1413
- Downstream MH
- B 1412
- Dir. of Survey
- Downstream
- Length Surveyed
- 55.4 ft.
- Total Length
- 55.4 ft.
- Structural Index
- 4
- Structural Quick
- 4131
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

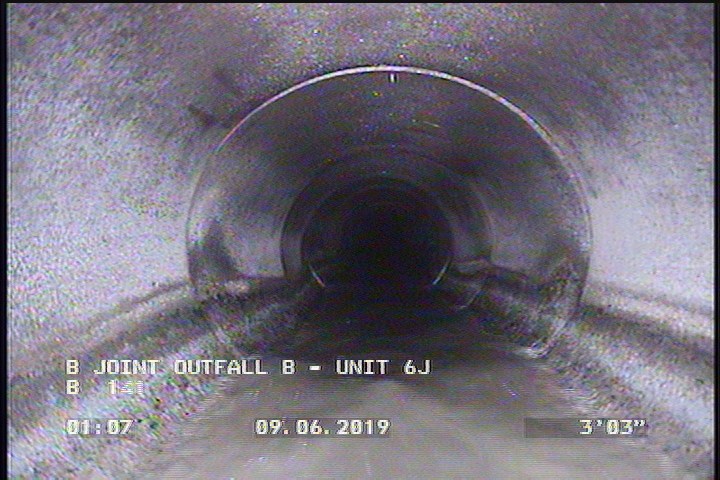

3.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

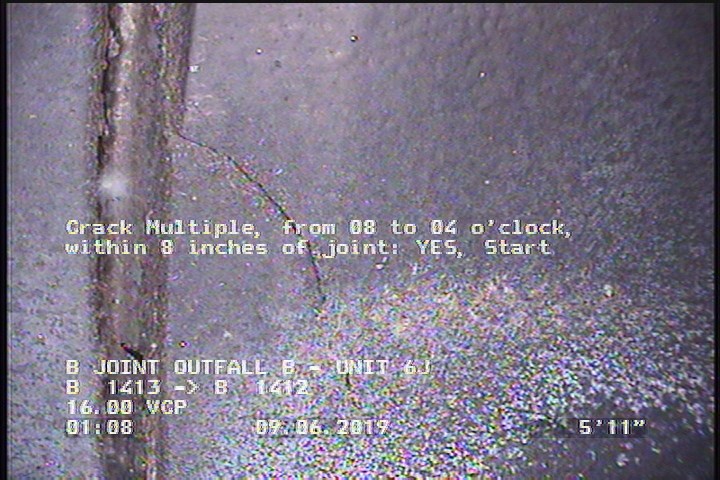

6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

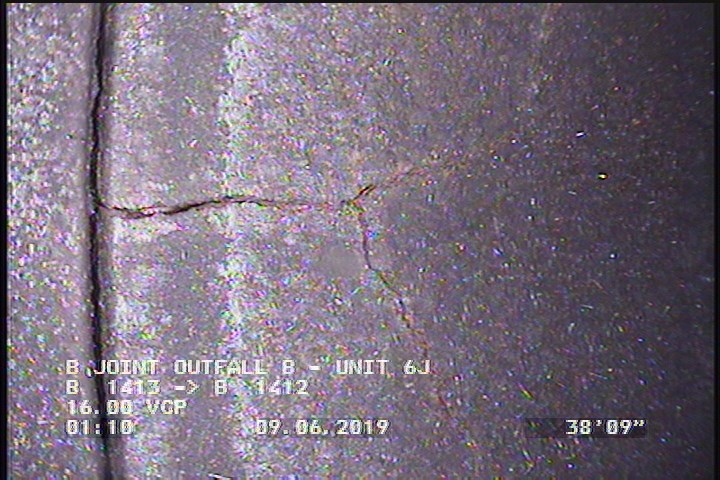

38.8 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 3.2 | DAGS | — |
| 52.7 | TFC | — |
| 0 | MWL | — |
| 55.4 | AMH | B 1412 |
| 0 | AMH | B 1413 |
| 12.2 | TFC | — |
| 6 | CM | — |
| 9.8 | TFC | — |
| 38.8 | FM | — |
| 55.4 | DAGS | — |
| 55.4 | CM | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC378521
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-09-06T01:05:19-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
