Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 27, 2019, 09:51 AM

  • B 1407_B 1406 _09062019_030841.mp4

Date
08/27/2019
W/O
787657
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z01126
PipeID
P25119
Time
2:51 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6924
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
04
Purpose
V
Project
WO_787657_TV30028_SEP2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
14 in.
Width
14 in.
Upstream MH
B 1407
Downstream MH
B 1406
Dir. of Survey
Downstream
Length Surveyed
263.1 ft.
Total Length
263.1 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole B 1407 to B 1406
MH: B 1407MH: B 1406downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 14070 ft. MWL - Water Level, 15 %of cross sectional area3.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start46.2 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 4"48.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"70.2 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"92.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"94.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"121.7 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 4"143.7 ft. RML - Roots Medium Lateral, from 02 to 04 o'clock, 10 %, within 8 inches of joint: NO143.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"146.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"167.3 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: NO, 4"195.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"198.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"223.9 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 4"241.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"244.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"261.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish263.1 ft. AMH - Downstream Manhole, Survey Ends - B 1406

Observation photos (2)

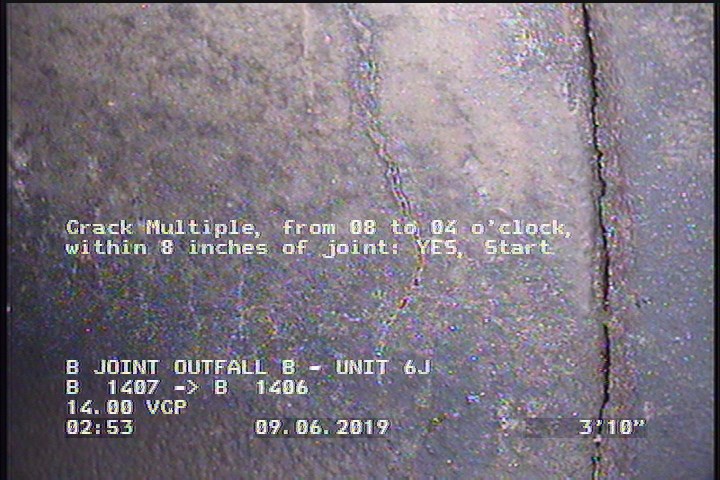

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

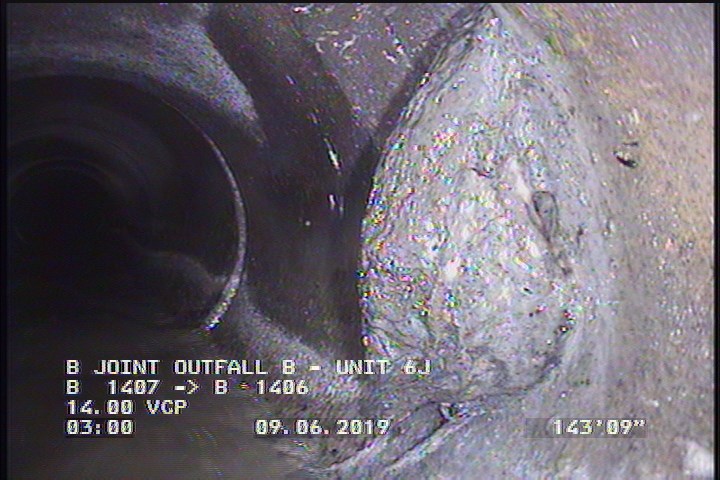

  • Roots Medium Lateral, from 02 to 04 o'clock, 10 %, within 8 inches of joint: NO

    143.7 ft. - Roots Medium Lateral, from 02 to 04 o'clock, 10 %, within 8 inches of joint: NO

All inspections of P25119Work order 787657

Observations (21)

DistanceCodeObservation
92.2TFC—
94.9TFC—
3.8CM—
241.8TF—
167.3TB—
70.2TB—
0MWM—
143.8TF—
261.2CM—
46.2TB—
195.5TF—
146.4TFC—
0AMHB 1407
48.8TFC—
263.1AMHB 1406
0MWL—
121.7TB—
198.1TFC—
223.9TB—
143.7RML—
244.2TF—

Properties (6)

additional_info
SC378521
custom_field_two
3
customer
LACSD
datetime
2019-08-27T02:51:14-07:00
documentation
PROPIPE
is_lateral_inspection
false
