  • B 1404_B 1403 _09102019_020301.mp4

Date
09/10/2019
W/O
787657
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z01126
PipeID
P25116
Time
1:51 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6927
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
04
Purpose
Routine Assessment
Project
WO_787657_TV30028_SEP2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
B 1404
Downstream MH
B 1403
Dir. of Survey
Downstream
Length Surveyed
206.5 ft.
Total Length
206.5 ft.
Structural Index
3
Structural Quick
3G00
Structural Rating
120
O&M Index
2
O&M Quick
2G00
O&M Rating
80
Overall Index
3
Overall Quick
—
Overall Rating
200
Pipe schematic from manhole B 1404 to B 1403
MH: B 1404MH: B 1403downstream0 ft. AMH - Upstream Manhole, Survey Begins - B 14040 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area2.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start52.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"55.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"108.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"115.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"118.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"150.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"152.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"175.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"204.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish204.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish206.4 ft. MGO - General Observation - CONNECTIONS AT 3 AND 9 O'CLOCK206.5 ft. AMH - Downstream Manhole, Survey Ends - B 1403

Observation photos (2)

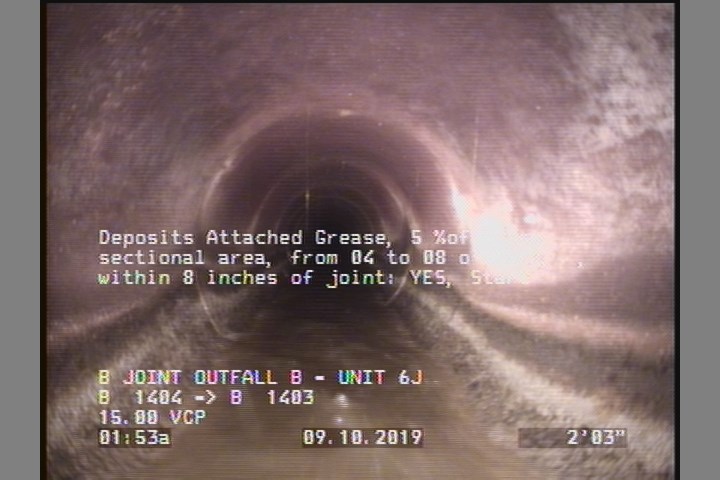

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

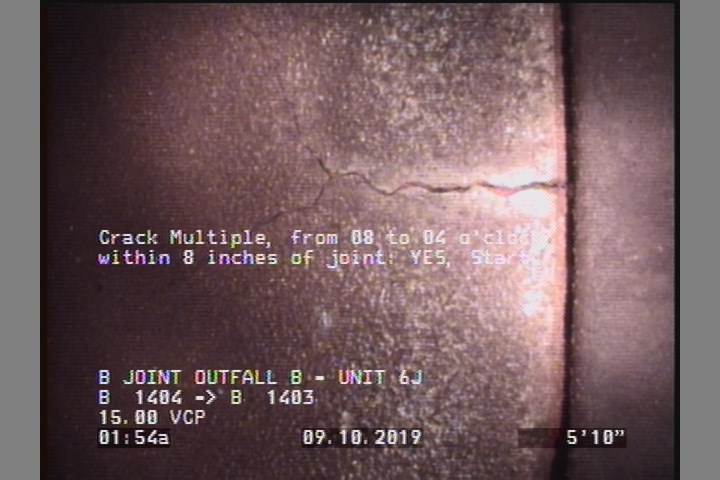

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P25116Work order 787657

Observations (17)

DistanceCodeObservation
55.1TF—
150.2TFC—
115.1TF—
0AMHB 1404
2.3DAGS—
204.4CM—
0MWL—
152.7TFC—
206.4MGOCONNECTIONS AT 3 AND 9 O'CLOCK
175.6TFC—
52.5TF—
204.4DAGS—
0MWM—
5.8CM—
206.5AMHB 1403
108.3TB—
118.4TF—

Properties (6)

additional_info
SC378525
custom_field_two
3
customer
LACSD
datetime
2019-09-10T01:51:35-07:00
documentation
PROPIPE
is_lateral_inspection
false
