Wastewater/Activity/PacpInspection/1.0Sep 10, 2019, 09:04 AM
B 1403_B 1402 _09102019_021443.mp4
- Date
- 09/10/2019
- W/O
- 787657
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z01126
- PipeID
- P25115
- Time
- 2:04 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6927
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_787657_TV30028_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- B 1403
- Downstream MH
- B 1402
- Dir. of Survey
- Downstream
- Length Surveyed
- 207.8 ft.
- Total Length
- 207.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 312D
- O&M Rating
- 57
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 60
Observation photos (3)

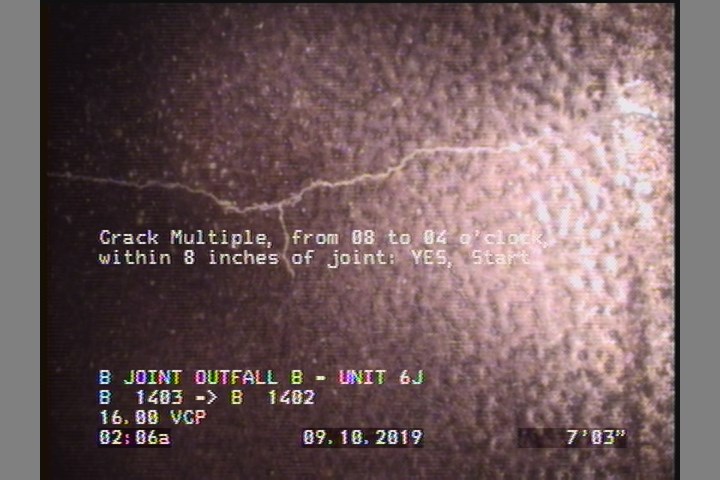

7.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

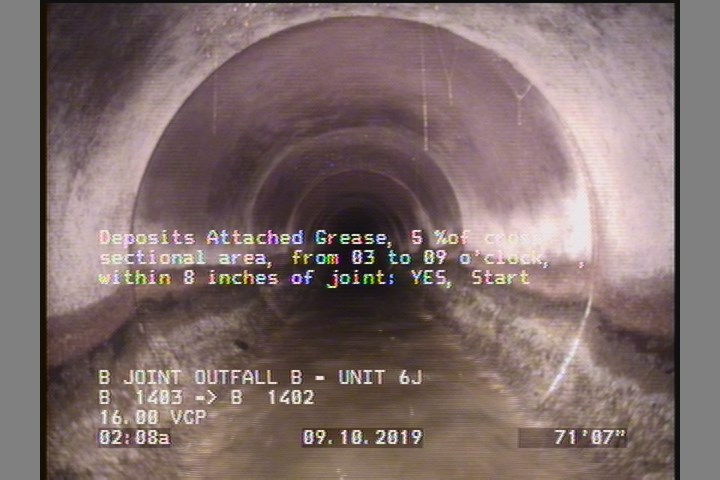

71.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

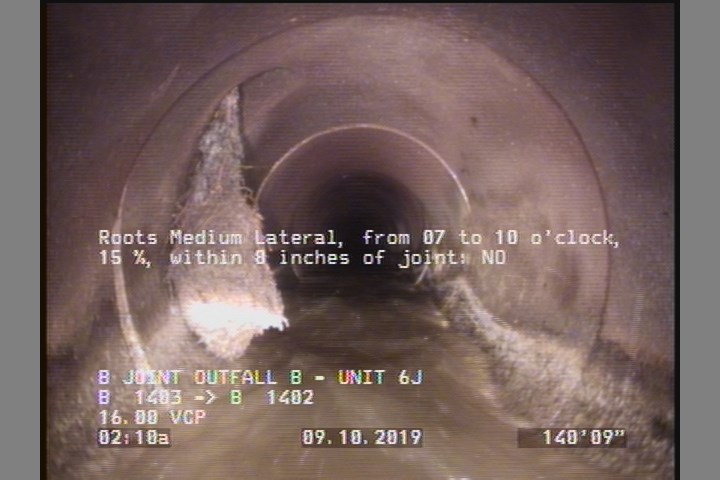

140.7 ft. - Roots Medium Lateral, from 07 to 10 o'clock, 15 %, within 8 inches of joint: NO
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 169.2 | TF | — |
| 84.9 | TFC | — |
| 140.7 | RML | — |
| 0 | MGO | CONNECTION AT 3 AND 9 O'CLOCK |
| 205.4 | CM | — |
| 207.8 | AMH | B 1402 |
| 142 | TF | — |
| 82.4 | TF | — |
| 71.6 | DAGS | — |
| 0 | MWM | — |
| 7.2 | CM | — |
| 0 | MWL | — |
| 205.4 | DAGS | — |
| 204.5 | TF | — |
| 0 | AMH | B 1403 |
Properties (6)
- additional_info
- SC378525
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-09-10T02:04:07-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
