Wastewater/Activity/PacpInspection/1.0Sep 10, 2019, 09:52 AM
B 1401_B 1400 _09102019_030224.mp4
- Date
- 09/10/2019
- W/O
- 787657
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z01126
- PipeID
- P25113
- Time
- 2:52 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6927
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_787657_TV30028_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- B 1401
- Downstream MH
- B 1400
- Dir. of Survey
- Downstream
- Length Surveyed
- 207.8 ft.
- Total Length
- 207.8 ft.
- Structural Index
- 3
- Structural Quick
- 3G00
- Structural Rating
- 120
- O&M Index
- 2
- O&M Quick
- 2G11
- O&M Rating
- 81
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 201
Observation photos (3)

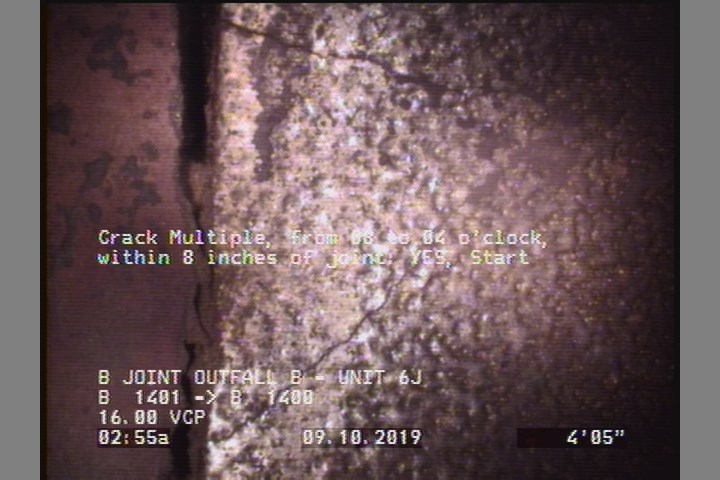

4.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

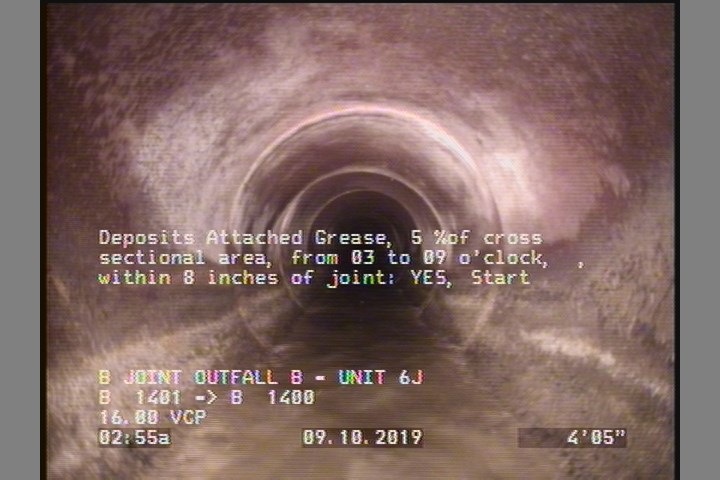

4.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

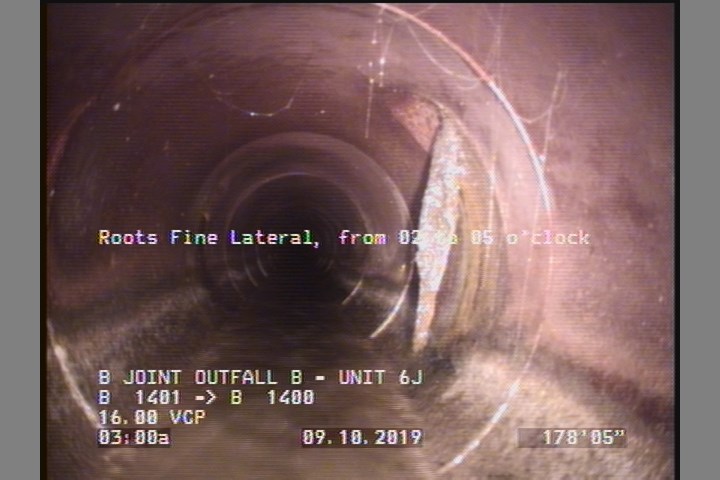

178.5 ft. - Roots Fine Lateral, from 02 to 05 o'clock
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 181.9 | TF | — |
| 4.5 | CM | — |
| 205.8 | CM | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | B 1401 |
| 179.4 | TF | — |
| 60.2 | TFC | — |
| 4.5 | DAGS | — |
| 113.9 | TB | — |
| 178.5 | RFL | — |
| 0 | MGO | CONNECTIONS AT 3 AND 9 O'CLOCK |
| 207.8 | AMH | B 1400 |
| 120.6 | TF | — |
| 205.8 | DAGS | — |
| 118 | TFC | — |
Properties (6)
- additional_info
- SC378525
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-09-10T02:52:05-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
