Wastewater/Activity/PacpInspection/1.0Sep 10, 2019, 10:13 AM
B 1399_B 1398 _09102019_032344.mp4
- Date
- 09/10/2019
- W/O
- 787657
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z01126
- PipeID
- P25111
- Time
- 3:13 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6927
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_787657_TV30028_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- B 1399
- Downstream MH
- B 1398
- Dir. of Survey
- Downstream
- Length Surveyed
- 176.1 ft.
- Total Length
- 176.1 ft.
- Structural Index
- 3
- Structural Quick
- 3D00
- Structural Rating
- 69
- O&M Index
- 2
- O&M Quick
- 322F
- O&M Rating
- 74
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 143
Observation photos (3)

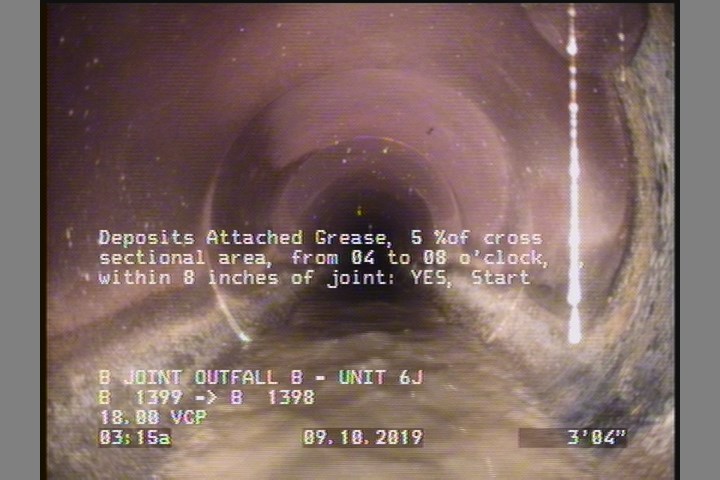

3.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

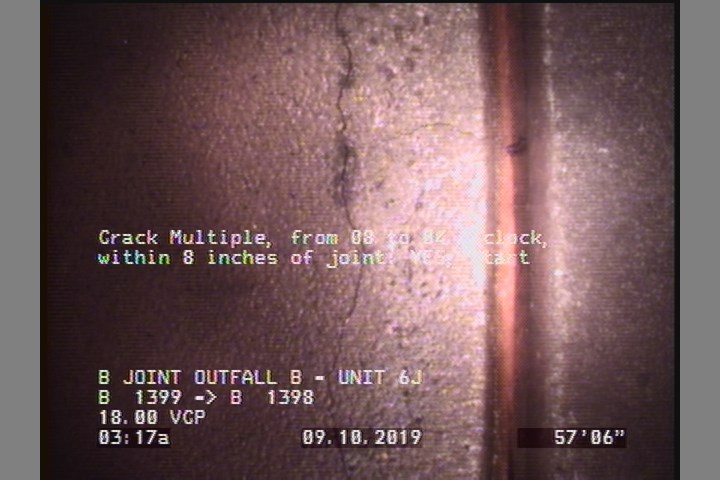

57.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

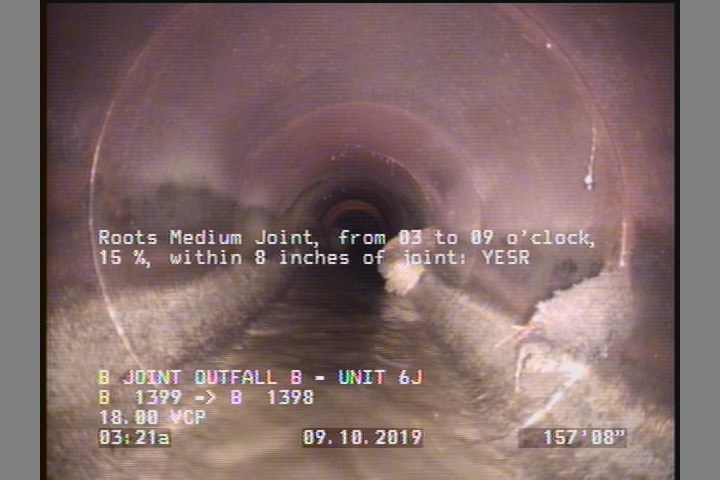

157.7 ft. - Roots Medium Joint, from 03 to 09 o'clock, 15 %, within 8 inches of joint: YESR, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION AT 9 O'CLOCK |
| 176.1 | AMH | B 1398 |
| 66.5 | TF | — |
| 166 | RMJ | — |
| 157.7 | RMJ | — |
| 124.6 | TFC | — |
| 173.6 | DAGS | — |
| 5.8 | TF | — |
| 127.5 | TFA | — |
| 176.1 | MGO | CONNECTION AT 3 O'CLOCK |
| 57.5 | CM | — |
| 69 | TF | — |
| 173.6 | CM | — |
| 0 | AMH | B 1399 |
| 0 | MWM | — |
| 3.4 | DAGS | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC378525
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-09-10T03:13:49-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
