Wastewater/Activity/PacpInspection/1.0Sep 17, 2019, 06:36 AM
B 1395_B 1394 _09162019_234920.mp4
- Date
- 09/16/2019
- W/O
- 787657
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z01126
- PipeID
- P25107
- Time
- 11:36 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6933
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_787657_TV30028_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 20 in.
- Width
- 20 in.
- Upstream MH
- B 1395
- Downstream MH
- B 1394
- Dir. of Survey
- Downstream
- Length Surveyed
- 118 ft.
- Total Length
- 118 ft.
- Structural Index
- 3
- Structural Quick
- 3A00
- Structural Rating
- 30
- O&M Index
- 2
- O&M Quick
- 2D11
- O&M Rating
- 51
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 81
Observation photos (3)

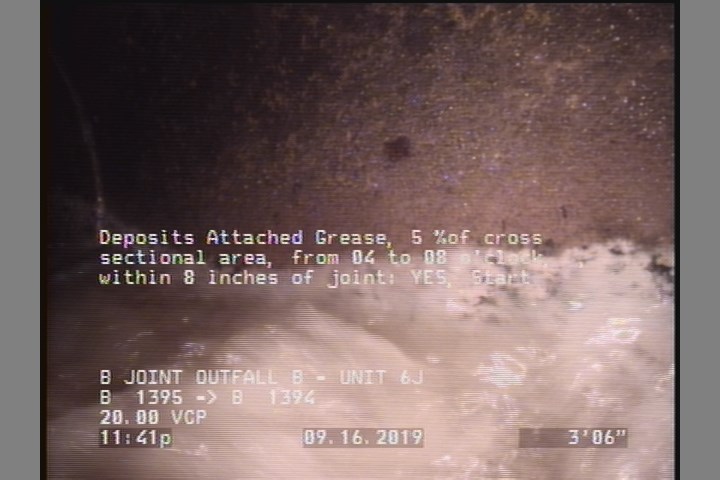

3.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

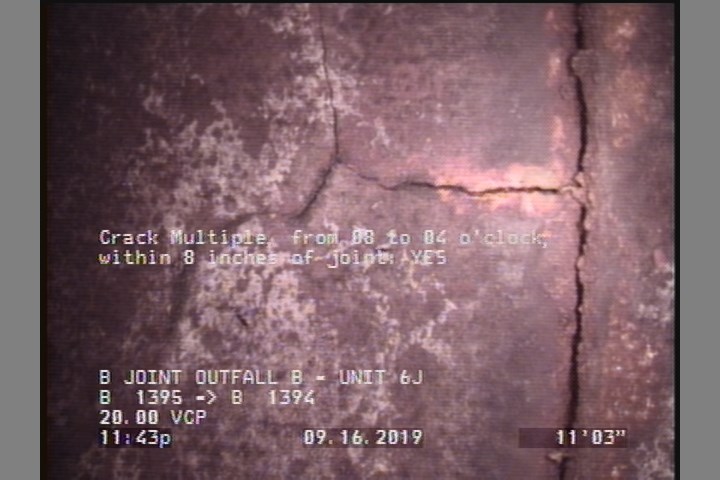

11.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

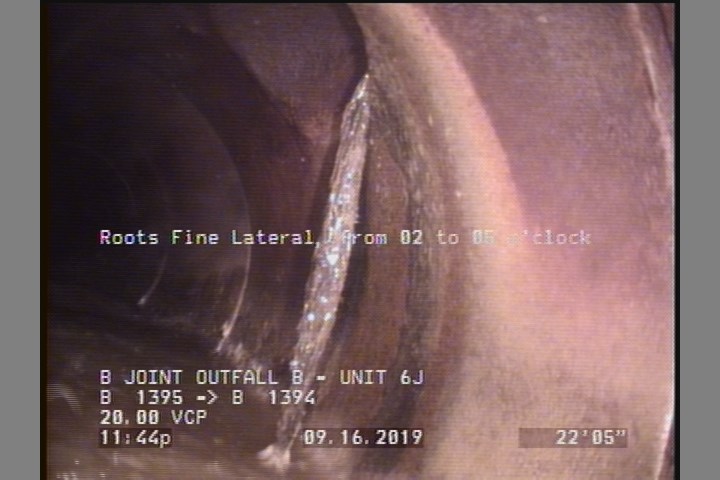

22.5 ft. - Roots Fine Lateral, from 02 to 05 o'clock
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 99.5 | DSC | — |
| 117.9 | MGO | CONNECTION AT 3 O'CLOCK |
| 115.8 | DSC | — |
| 59.5 | CM | — |
| 74.1 | TFC | — |
| 114.6 | TFC | — |
| 118 | AMH | B 1394 |
| 23.5 | TF | — |
| 0 | MGO | CONNECTION AT 9 O'CLOCK |
| 3.5 | DAGS | — |
| 22.5 | RFL | — |
| 115.9 | DAGS | — |
| 11.3 | CM | — |
| 0 | AMH | B 1395 |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC378532
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-09-16T23:36:27-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
