Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 11, 2019, 07:32 AM

  • B 1387_B 1386 _09112019_005346.mp4

Date
09/11/2019
W/O
787657
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z01126
PipeID
P25099
Time
12:32 AM
Certificate
U-715-070000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6928
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
08
Purpose
Routine Assessment
Project
WO_787657_TV30028_SEP2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Width
16 in.
Upstream MH
B 1387
Downstream MH
B 1386
Dir. of Survey
Downstream
Length Surveyed
174.3 ft.
Total Length
174.3 ft.
Structural Index
3
Structural Quick
3E00
Structural Rating
96
O&M Index
2
O&M Quick
2F00
O&M Rating
66
Overall Index
2
Overall Quick
—
Overall Rating
162
Pipe schematic from manhole B 1387 to B 1386
MH: B 1387MH: B 1386downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 13870 ft. MGO - General Observation - CONNECTION AT 9 O'CLOCK0 ft. MGO - General Observation - LIGHT STEAM IN SEWER5.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start10.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start16.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"65.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"111.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"113.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"153.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"166.7 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"166.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"169 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"172.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish172.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish174.3 ft. AMH - Downstream Manhole, Survey Ends - B 1386

Observation photos (2)

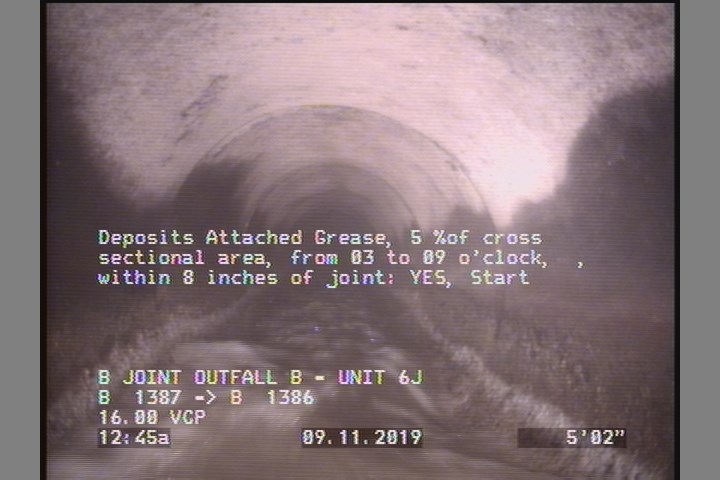

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    5.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

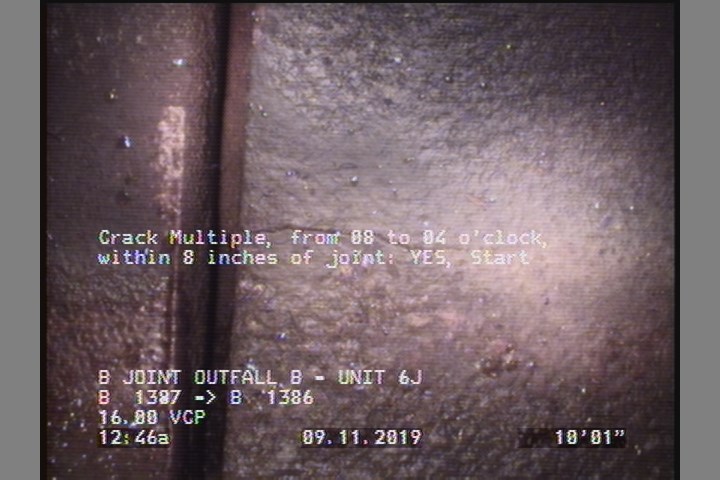

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    10.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P25099Work order 787657

Observations (18)

DistanceCodeObservation
111.1TF—
174.3AMHB 1386
172.4DAGS—
16.7TF—
0MWL—
0MWM—
0AMHB 1387
169TFC—
113.7TF—
172.3CM—
5.1DAGS—
0MGOCONNECTION AT 9 O'CLOCK
65.8TFC—
153.3TB—
10.1CM—
166.7TB—
0MGOLIGHT STEAM IN SEWER
166.7TF—

Properties (6)

additional_info
SC378526
custom_field_two
3
customer
LACSD
datetime
2019-09-11T00:32:12-07:00
documentation
PROPIPE
is_lateral_inspection
false
