Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 20, 2019, 09:49 AM

  • 18 0205_18 0204_11202019_015459.mp4

Date
11/20/2019
W/O
0801678
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00695
PipeID
P14030
Time
1:49 AM
Certificate
1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1315
Sewer Name
18 ORR AND DAY ROAD TRUNK
City
SANTA FE SPRINGS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
13
Purpose
Maintenance Related
Project
20191119MDM_ORR_DAY_ROAD_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
18 0205
Downstream MH
18 0204
Dir. of Survey
Downstream
Length Surveyed
394 ft.
Total Length
394 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4132
O&M Rating
10
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 18 0205 to 18 0204
MH: 18 0205MH: 18 0204downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:55AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN41.8 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start - DEBRIE UNDER FLOW62.1 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish - DEBRIE UNDER FLOW105.5 ft. MWL - Water Level, 30 %of cross sectional area163.3 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - DEBRIE UNDER FLOW168.7 ft. MGO - General Observation - POSSIBLE PEELING BUILDUP ON LOWER PIPE175.8 ft. MGO - General Observation - POSSIBLE PEELING BUILDUP ON LOWER PIPE181.7 ft. MWL - Water Level, 10 %of cross sectional area203.8 ft. MGO - General Observation - PEELING BUILDUP UNER WATER LINE221.9 ft. MWL - Water Level, 20 %of cross sectional area265.9 ft. MGO - General Observation - THICK BULDUP ON PIPE272.7 ft. MGO - General Observation - PEELING BUILDUP UMDER FLOW394 ft. AMH - Downstream Manhole, Survey Ends - 2:30AM

Observation photos (6)

  • Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start - DEBRIE UNDER FLOW

    41.8 ft. - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start - DEBRIE UNDER FLOW

  • General Observation - POSSIBLE PEELING BUILDUP ON LOWER PIPE

    168.7 ft. - General Observation - POSSIBLE PEELING BUILDUP ON LOWER PIPE

  • General Observation - POSSIBLE PEELING BUILDUP ON LOWER PIPE

    175.8 ft. - General Observation - POSSIBLE PEELING BUILDUP ON LOWER PIPE

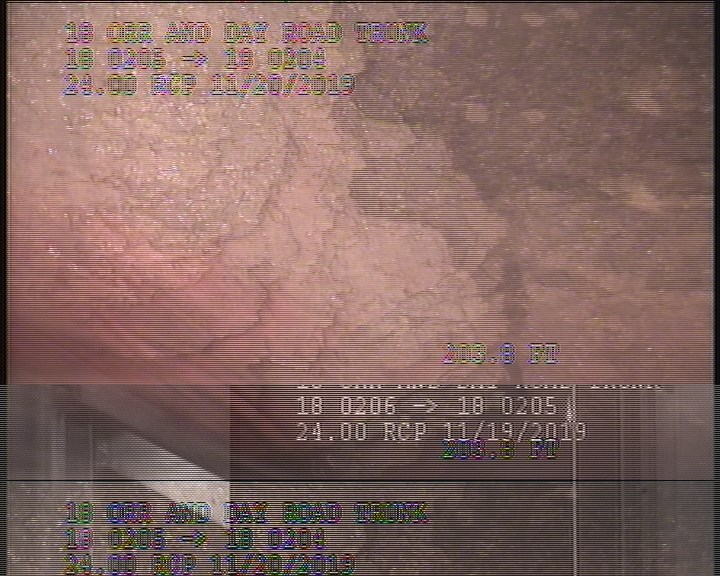

  • General Observation - PEELING BUILDUP UNER WATER LINE

    203.8 ft. - General Observation - PEELING BUILDUP UNER WATER LINE

  • General Observation - THICK BULDUP ON PIPE

    265.9 ft. - General Observation - THICK BULDUP ON PIPE

  • General Observation - PEELING BUILDUP UMDER FLOW

    272.7 ft. - General Observation - PEELING BUILDUP UMDER FLOW

All inspections of P14030Work order 0801678

Observations (17)

DistanceCodeObservation
105.5MWL—
394AMH2:30AM
0MWL—
41.8DSZDEBRIE UNDER FLOW
203.8MGOPEELING BUILDUP UNER WATER LINE
168.7MGOPOSSIBLE PEELING BUILDUP ON LOWER PIPE
163.3DSZDEBRIE UNDER FLOW
181.7MWL—
62.1DSZDEBRIE UNDER FLOW
265.9MGOTHICK BULDUP ON PIPE
0AMH1:55AM
175.8MGOPOSSIBLE PEELING BUILDUP ON LOWER PIPE
0MGOConn. @ Mh, 9 O' Clock. Active
0MWM—
0MGOConn. @ Mh, 3 O' Clock. OPEN
221.9MWL—
272.7MGOPEELING BUILDUP UMDER FLOW

Properties (5)

additional_info
DEBRIE BOTTOM OF PIPE INSPECTION
customer
LACSD
datetime
2019-11-20T01:49:02-08:00
documentation
MARTIN,REVELES,OLIVER 111,CASTILLO
is_lateral_inspection
false
