Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 14, 2019, 08:36 PM

  • H 0866_H 0627_11142019_125042.mp4

Date
11/14/2019
W/O
0792641
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00183
PipeID
P10951
Time
12:36 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8133
Sewer Name
H JOINT OUTFALL H - UNIT 7B
City
CITY OF INDUSTRY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
38
Purpose
Routine Assessment
Project
20191114SHO_JOINT_OUTFALL_H_UNIT_7B
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Upstream MH
H 0627
Downstream MH
H 0866
Dir. of Survey
Upstream
Length Surveyed
97.1 ft.
Total Length
97.1 ft.
Structural Index
5
Structural Quick
5331
Structural Rating
18
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
4
Overall Quick
—
Overall Rating
23
Pipe schematic from manhole H 0627 to H 0866
MH: H 0627MH: H 0866upstream0 ft. AMH - Upstream Manhole, Survey Ends - H 08660 ft. SRC - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0.1 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Finish - DEBRIS7 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: YES7 ft. SMW - Surface Missing Wall, from 01 to 03 o'clock, within 8 inches of joint: YES38.6 ft. MGO - General Observation - BROKEN REBAR78.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start78.4 ft. SRC - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start82.1 ft. MGO - General Observation - POSSIBLE WATER PIPE85.1 ft. SMW - Surface Missing Wall, from 09 to 03 o'clock, within 8 inches of joint: YES - 66" LONG & 39" WIDE & 12" DEEP85.1 ft. MGO - General Observation - MISSING WALL93.1 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start - DEBRIS97.1 ft. AMH - Downstream Manhole, Survey Begins - MH 062797.1 ft. MWL - Water Level, 20 %of cross sectional area97.1 ft. MWM - Water Mark, 25 %of cross sectional area

Observation photos (7)

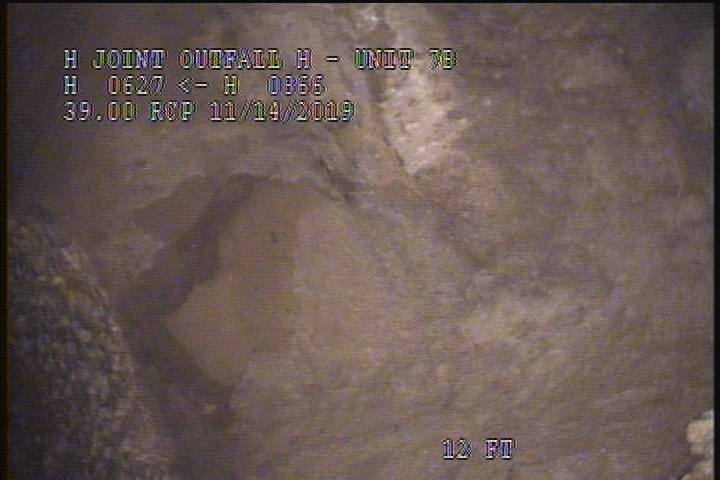

  • Surface Missing Wall, from 09 to 03 o'clock, within 8 inches of joint: YES - 66" LONG & 39" WIDE & 12" DEEP

    12 ft. - Surface Missing Wall, from 09 to 03 o'clock, within 8 inches of joint: YES - 66" LONG & 39" WIDE & 12" DEEP

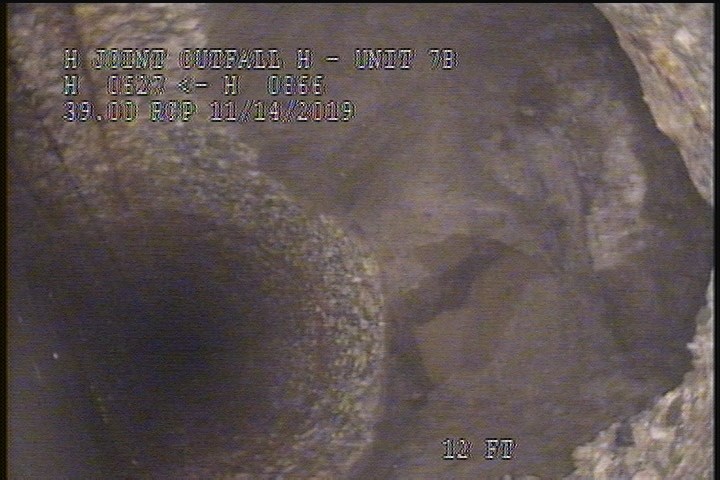

  • General Observation - MISSING WALL

    12 ft. - General Observation - MISSING WALL

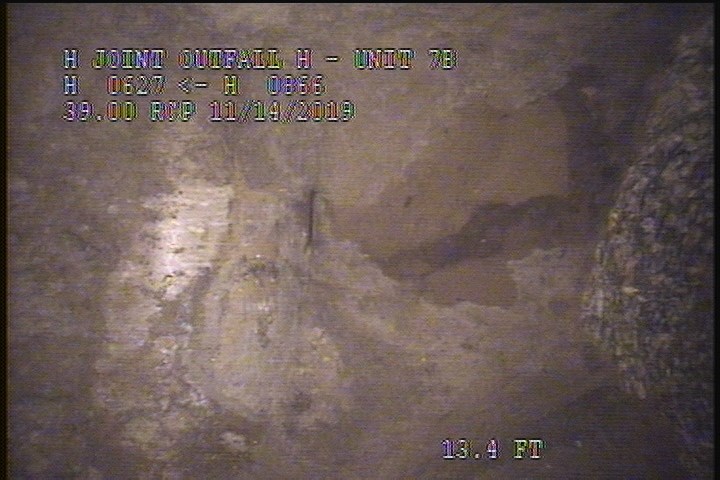

  • General Observation - POSSIBLE WATER PIPE

    15 ft. - General Observation - POSSIBLE WATER PIPE

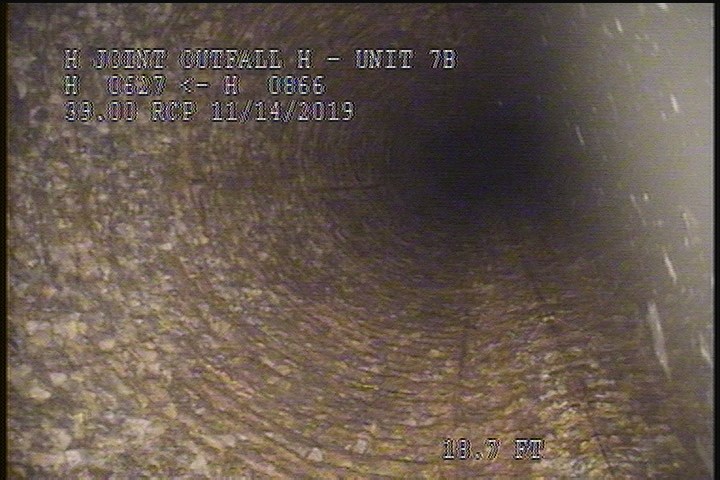

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    18.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

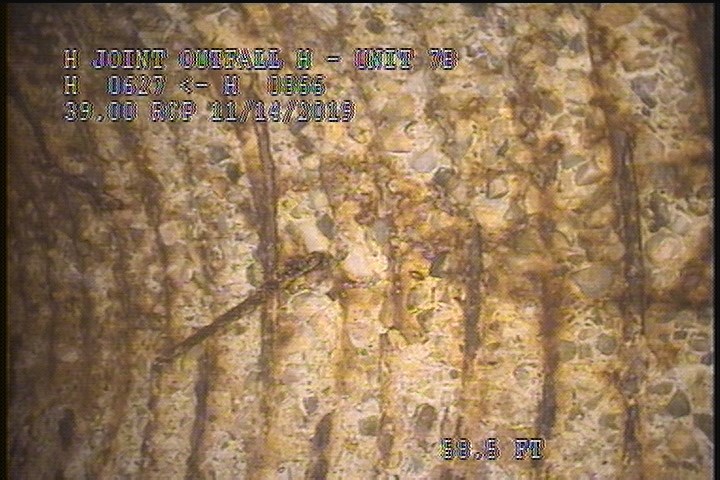

  • General Observation - BROKEN REBAR

    58.5 ft. - General Observation - BROKEN REBAR

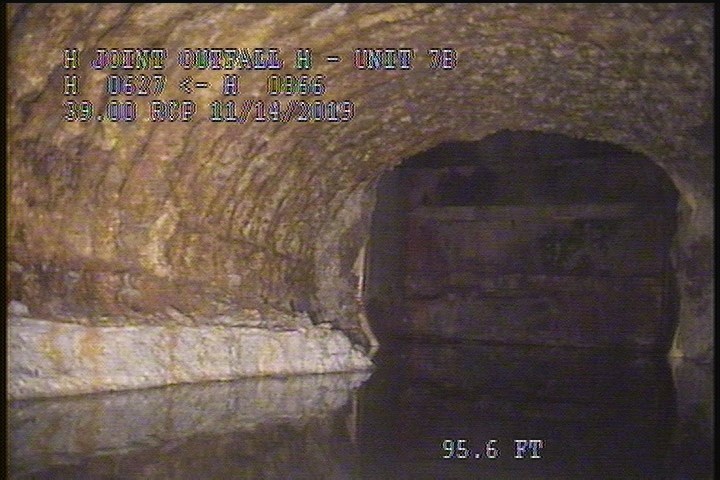

  • Deposits Attached Grease, 15 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: YES

    90.1 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: YES

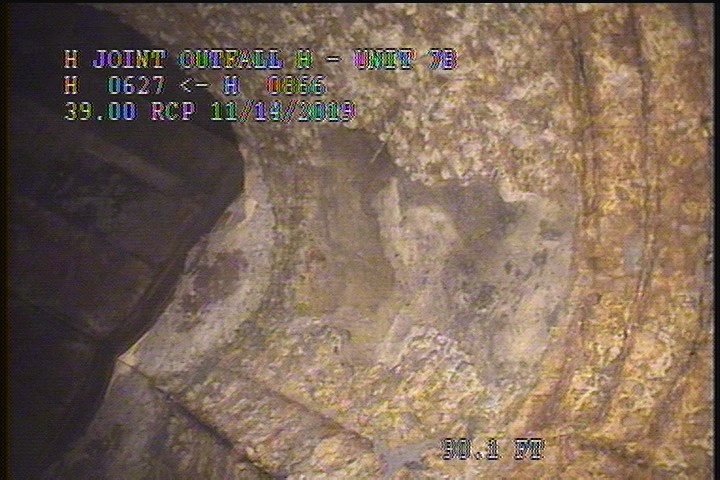

  • Surface Missing Wall, from 01 to 03 o'clock, within 8 inches of joint: YES

    90.1 ft. - Surface Missing Wall, from 01 to 03 o'clock, within 8 inches of joint: YES

All inspections of P10951Work order 0792641

Observations (16)

DistanceCodeObservation
58.5MGOBROKEN REBAR
18.7SAP—
4DSZDEBRIS
18.7SRC—
90.1DAGS—
97.1AMHH 0866
97DSZDEBRIS
90.1SMW—
15MGOPOSSIBLE WATER PIPE
97.1SRC—
0AMHMH 0627
12SMW66" LONG & 39" WIDE & 12" DEEP
0MWL—
0MWM—
12MGOMISSING WALL
97.1SAP—

Properties (6)

custom_field_three
LARGE VOID & A SMALL VOID
custom_field_two
1
customer
LACSD
datetime
2019-11-14T12:36:59-08:00
documentation
OBREGON, BRAR, RUVALCABA
is_lateral_inspection
false
