Wastewater/Activity/PacpInspection/1.0Apr 26, 2018, 09:35 AM
15 0893_15 0892 _26042018_025143.mp4
- Date
- 04/26/2018
- W/O
- 695662
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00599
- PipeID
- P12687
- Time
- 2:35 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5577
- Sewer Name
- 15 CALIFORNIA AVENUE TRUNK
- City
- MONROVIA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_695662_TV15182_APR2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 15 0893
- Downstream MH
- 15 0892
- Dir. of Survey
- Downstream
- Length Surveyed
- 340.7 ft.
- Total Length
- 340.7 ft.
- Structural Index
- 3
- Structural Quick
- 3400
- Structural Rating
- 12
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (4)

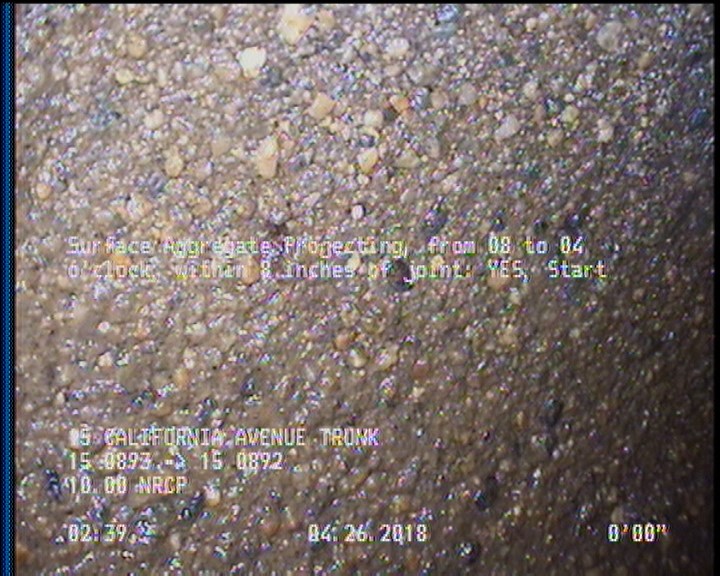

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

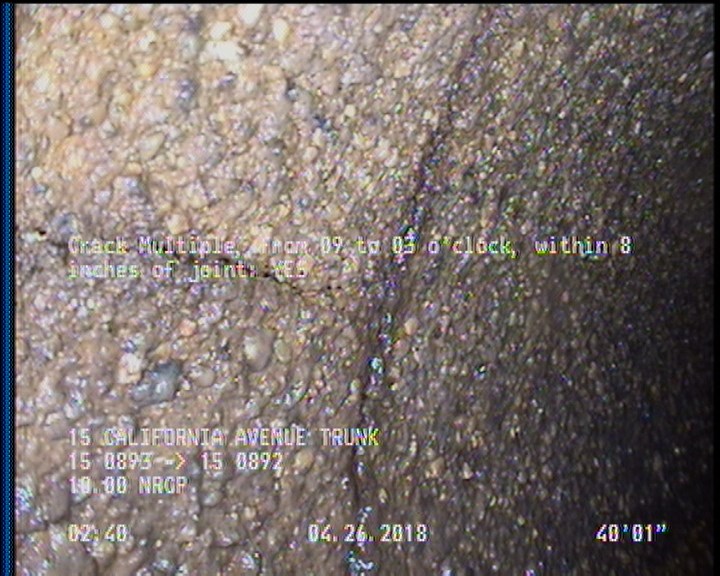

40.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

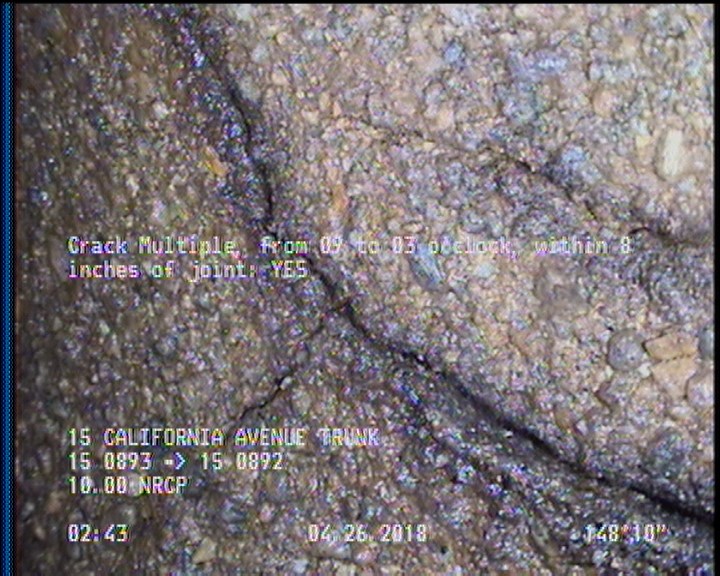

148.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

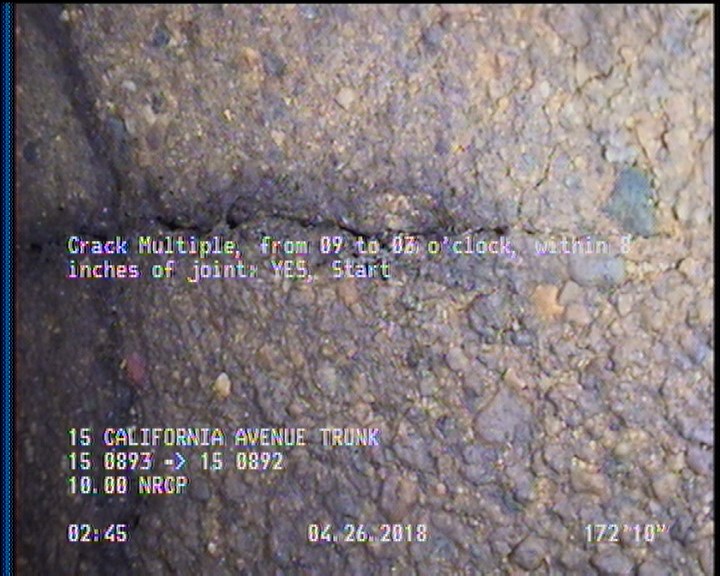

172.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 148.8 | CM | — |
| 0 | MWL | — |
| 2 | SAP | — |
| 338.6 | SAP | — |
| 172.8 | CM | — |
| 40.1 | CM | — |
| 340.7 | MGO | COCKROACHES IN MANHOLE |
| 340.7 | AMH | 15 0892 |
| 338.6 | CM | — |
| 0 | MWM | — |
| 0 | AMH | 15 0893 |
| 340.7 | MGO | CAPPED CONNECTION AT MH 9 O'CLOCK |
Properties (6)
- additional_info
- SC358537
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-04-26T02:35:32-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
