Wastewater/Activity/PacpInspection/1.0Apr 25, 2018, 10:36 AM
15 0881_15 0880 _25042018_035642.mp4
- Date
- 04/25/2018
- W/O
- 695662
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00599
- PipeID
- P12674
- Time
- 3:36 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5576
- Sewer Name
- 15 CALIFORNIA AVENUE TRUNK
- City
- MONROVIA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_695662_TV15182_APR2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0881
- Downstream MH
- 15 0880
- Dir. of Survey
- Downstream
- Length Surveyed
- 368.5 ft.
- Total Length
- 368.5 ft.
- Structural Index
- 3
- Structural Quick
- 3N00
- Structural Rating
- 219
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 221
Observation photos (2)

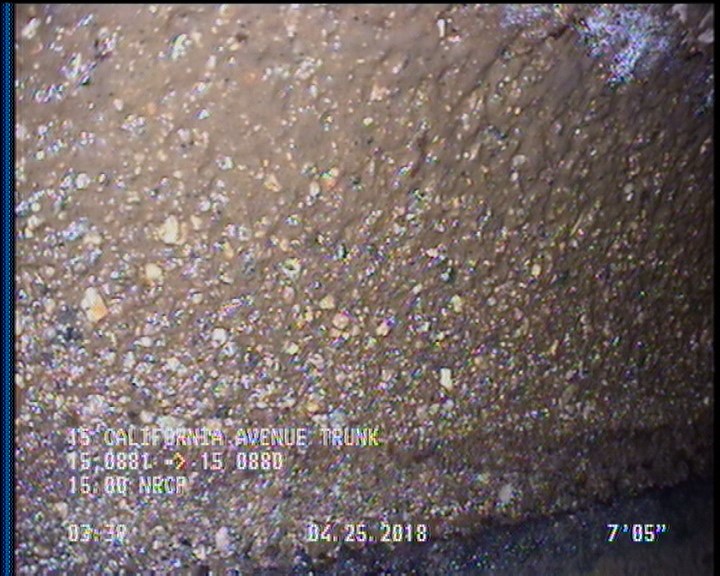

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

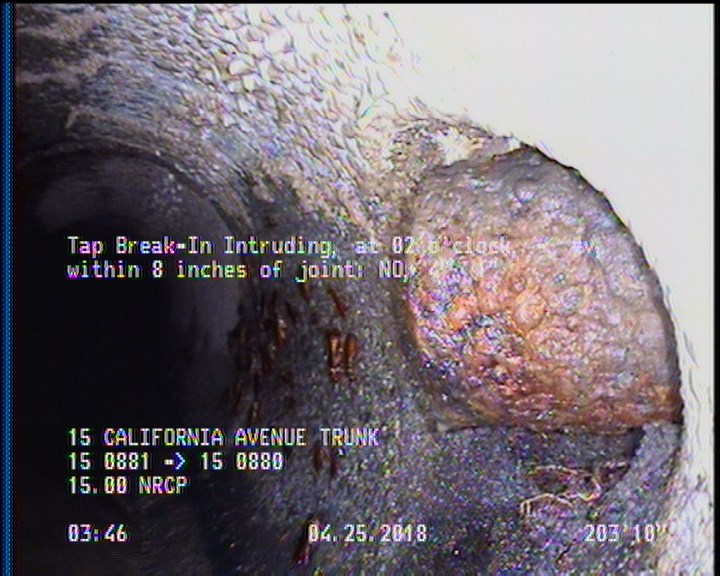

203.8 ft. - Tap Break-In Intruding, at 02 o'clock, -, #v, within 8 inches of joint: NO, 4", 1"
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 75.8 | TFC | — |
| 203.8 | TBI | — |
| 368.5 | MGO | CAPPED CONNECTION AT MH 3 AND 9 O'CLOCK |
| 0 | MWM | — |
| 0 | MWL | — |
| 167.3 | TFC | — |
| 279.9 | TF | — |
| 335 | TF | — |
| 368.5 | AMH | 15 0880 |
| 200.9 | TFC | — |
| 368.5 | MGO | COCKROACHES IN MANHOLE |
| 367 | SAP | — |
| 2 | SAP | — |
| 0 | AMH | 15 0881 |
| 164.4 | TFC | — |
| 337.8 | TF | — |
| 277 | TF | — |
Properties (6)
- additional_info
- SC358536
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-04-25T03:36:46-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
