Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 29, 2018, 09:47 AM

  • 15 0100_15 0099_29032018_030103.mp4

Date
03/29/2018
W/O
1590881
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00590
PipeID
P11978
Time
2:47 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5514
Sewer Name
15 ABBEY STREET TRUNK
City
LA PUENTE
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
38
Purpose
Routine Assessment
Project
WO_690161_TV15204_MAR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 0100
Downstream MH
15 0099
Dir. of Survey
Downstream
Length Surveyed
262.9 ft.
Total Length
262.9 ft.
Structural Index
3
Structural Quick
3I00
Structural Rating
156
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
156
Pipe schematic from manhole 15 0100 to 15 0099
MH: 15 0100MH: 15 0099downstream0 ft. AMH - Upstream Manhole, Survey Begins - 15 01000 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED3.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES7.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start48.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"50.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"99 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"101.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"146.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"148.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"197.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"199.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"247.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"250.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"261 ft. MGO - General Observation - 5% GREASE THROUGHOUT THE REACH, FROM 03 TO 09 O'CLOCK262.9 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK262.9 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED262.9 ft. AMH - Downstream Manhole, Survey Ends - 15 0099262.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

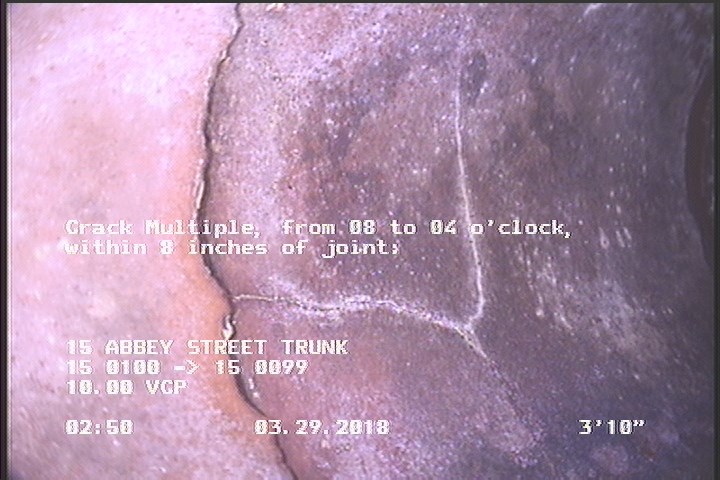

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    3.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

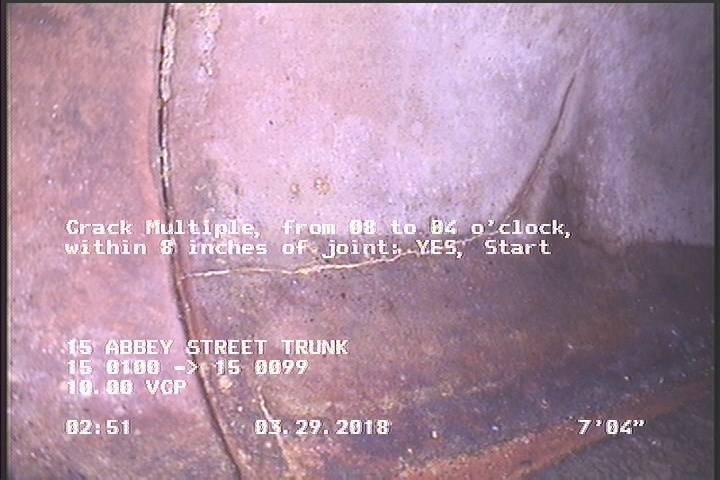

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P11978Work order 1590881

Observations (21)

DistanceCodeObservation
261MGO5% GREASE THROUGHOUT THE REACH, FROM 03 TO 09 O'CLOCK
0AMH15 0100
250.1TFC—
101.3TFC—
247.7TFC—
197.1TFC—
0MWL—
199.5TFC—
7.4CM—
146.5TF—
262.9MGOCONNECTION AT MH 9 O'CLOCK
262.9MGOCONNECTION AT MH 3 O'CLOCK CAPPED
0MWM—
50.7TFC—
0MGOCONNECTION AT MH 3 O'CLOCK CAPPED
48.2TFC—
3.8CM—
99TFC—
148.8TFC—
262.9AMH15 0099
262.9CM—

Properties (6)

additional_info
SC358720
custom_field_two
3
customer
LACSD
datetime
2018-03-29T02:47:43-07:00
documentation
PROPIPE
is_lateral_inspection
false
