Wastewater/Activity/PacpInspection/1.0May 12, 2017, 07:57 AM
18 0352_18 0228 _12052017_005810.mp4
- Date
- 05/12/2017
- W/O
- 630481
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00714
- PipeID
- P14186
- Time
- 12:57 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4494
- Sewer Name
- 18 WASHINGTON BOULEVARD TRUNK
- City
- WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_635481_TV18060_MAY2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0352
- Downstream MH
- 18 0228
- Dir. of Survey
- Downstream
- Length Surveyed
- 149.3 ft.
- Total Length
- 149.3 ft.
- Structural Index
- 3
- Structural Quick
- 3C21
- Structural Rating
- 65
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 69
Observation photos (4)

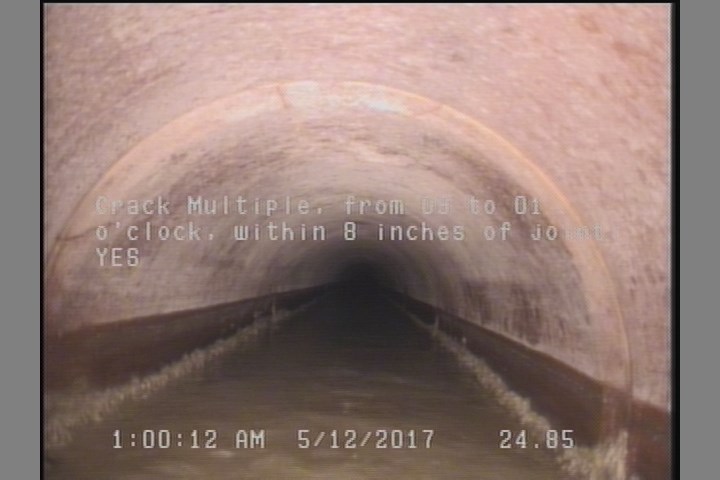

24.9 ft. - Crack Multiple, from 09 to 01 o'clock, within 8 inches of joint: YES

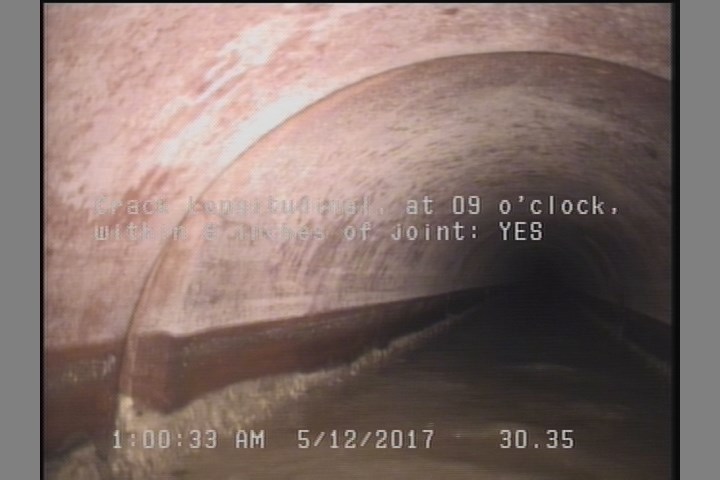

30.4 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

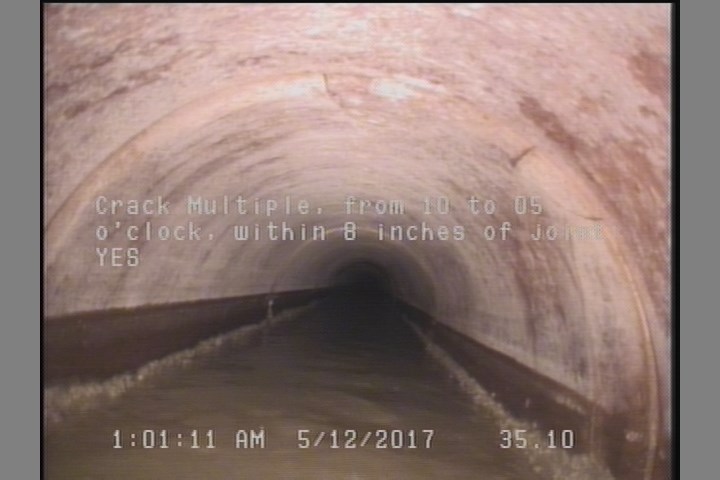

35.1 ft. - Crack Multiple, from 10 to 05 o'clock, within 8 inches of joint: YES

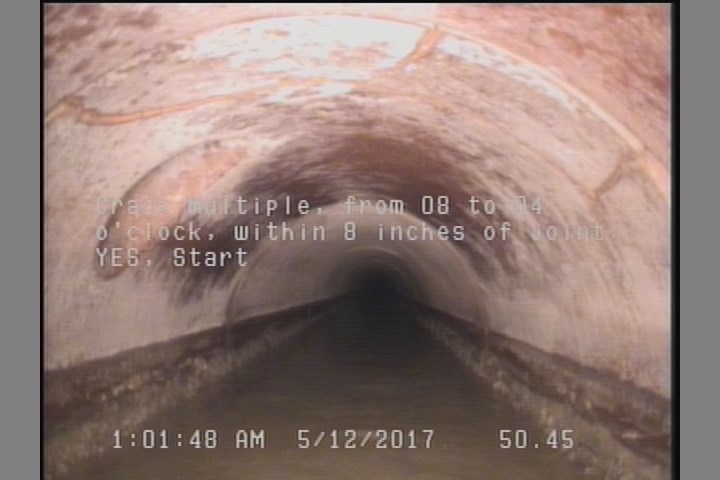

50.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 24.9 | CM | — |
| 52.6 | TFC | — |
| 50.5 | CM | — |
| 100.9 | TFC | — |
| 149.3 | AMH | 18 0228 |
| 143.4 | CM | — |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 18 0352 |
| 30.4 | CL | — |
| 0 | MGO | CAPPED LATERAL 9 O'CLOCK @ MH |
| 0 | MWL | — |
| 35.1 | CM | — |
Properties (6)
- additional_info
- SC345303
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-12T00:57:55-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
