Wastewater/Activity/PacpInspection/1.0May 10, 2017, 07:53 AM
18 0359_18 0358 _10052017_005421.mp4
- Date
- 05/10/2017
- W/O
- 630481
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00714
- PipeID
- P14193
- Time
- 12:53 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4492
- Sewer Name
- 18 WASHINGTON BOULEVARD TRUNK
- City
- WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_635481_TV18060_MAY2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0359
- Downstream MH
- 18 0358
- Dir. of Survey
- Downstream
- Length Surveyed
- 86.2 ft.
- Total Length
- 86.2 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (2)

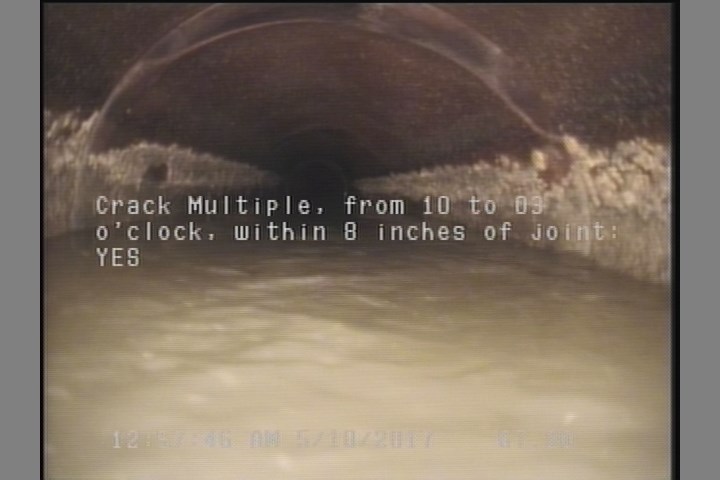

67.2 ft. - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

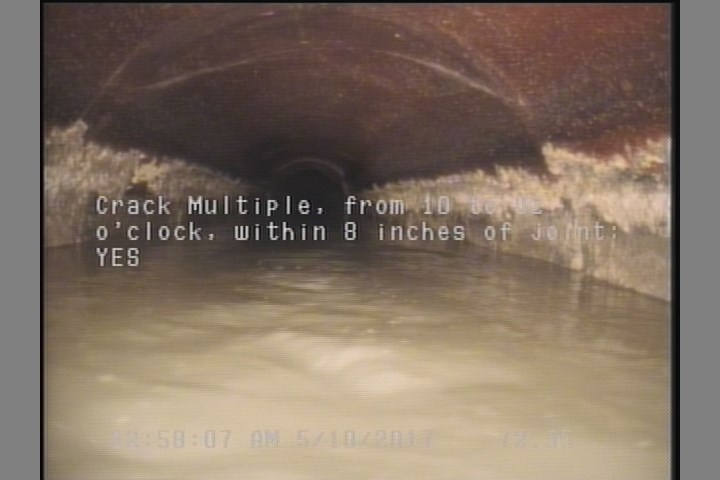

72.4 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 67.2 | CM | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK CAPPED |
| 0 | MWL | — |
| 86.2 | MGO | CONNECTION AT MH 3 O'CLOCK CAPPED |
| 86.2 | AMH | 18 0358 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 86.2 | MGO | CONNECTION AT MH 9 O'CLOCK CAPPED |
| 0 | AMH | 18 0359 |
| 72.4 | CM | — |
Properties (6)
- additional_info
- SC345301
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-10T00:53:46-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
