Wastewater/Activity/PacpInspection/1.0May 10, 2017, 07:26 AM
18 0361_18 0360 _10052017_003041.mp4
- Date
- 05/10/2017
- W/O
- 630481
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00714
- PipeID
- P14195
- Time
- 12:26 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4492
- Sewer Name
- 18 WASHINGTON BOULEVARD TRUNK
- City
- WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_635481_TV18060_MAY2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0361
- Downstream MH
- 18 0360
- Dir. of Survey
- Downstream
- Length Surveyed
- 198.5 ft.
- Total Length
- 198.5 ft.
- Structural Index
- 3
- Structural Quick
- 3F22
- Structural Rating
- 103
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 107
Observation photos (4)

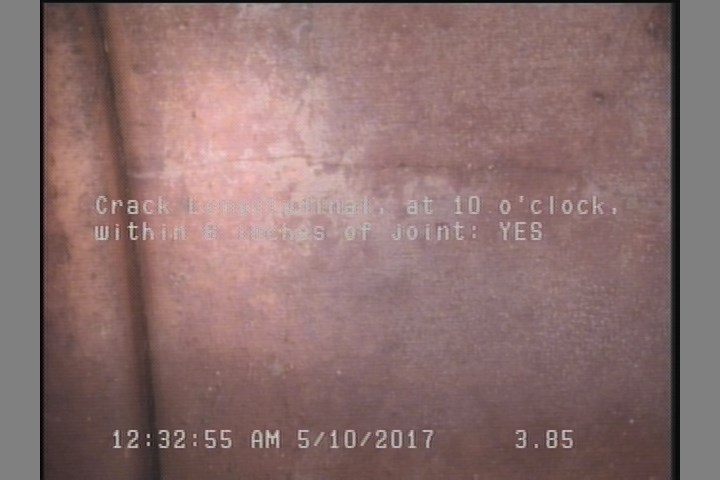

3.9 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

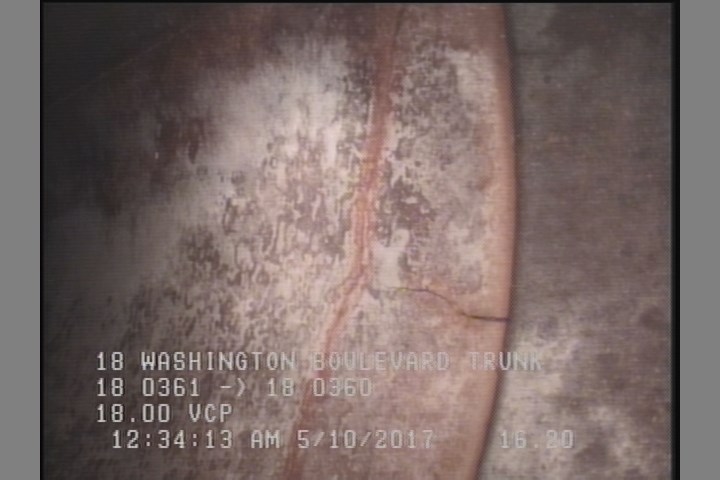

16.2 ft. - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

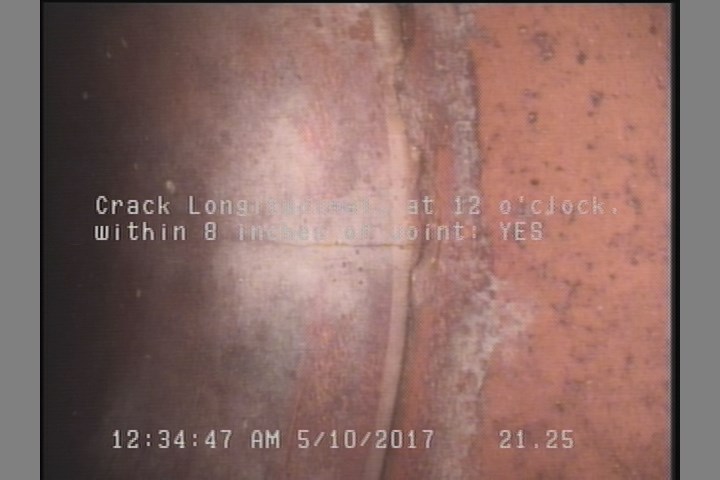

21.3 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

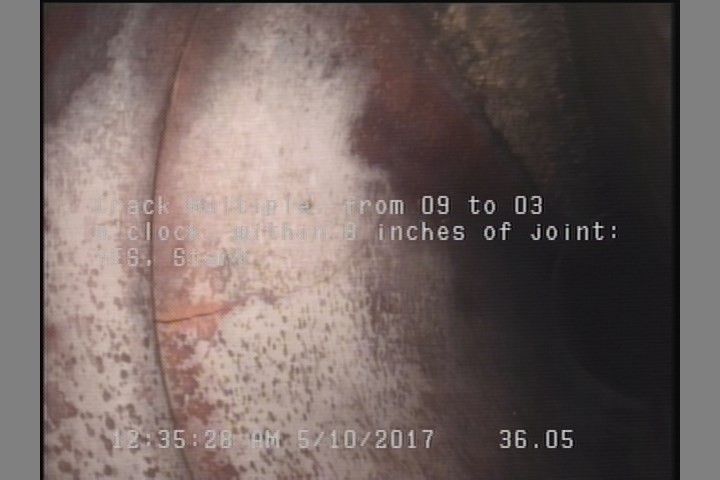

36.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 16.2 | CM | — |
| 3.9 | CL | — |
| 14.7 | TFC | — |
| 169.5 | TFC | — |
| 198.5 | CM | — |
| 36.1 | CM | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 21.3 | CL | — |
| 0 | AMH | 18 0361 |
| 126.1 | TFC | — |
| 198.5 | MGO | CONNECTION AT MH 3 O'CLOCK CAPPED |
| 77.7 | TF | — |
| 198.5 | AMH | 18 0360 |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC345301
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-10T00:26:13-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
