Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 12, 2017, 07:46 AM

  • 18 0353_18 0352 _12052017_004710.mp4

Date
05/12/2017
W/O
630481
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00714
PipeID
P14187
Time
12:46 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4494
Sewer Name
18 WASHINGTON BOULEVARD TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
09
Purpose
Routine Assessment
Project
WO_635481_TV18060_MAY2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0353
Downstream MH
18 0352
Dir. of Survey
Downstream
Length Surveyed
218.9 ft.
Total Length
218.9 ft.
Structural Index
3
Structural Quick
3E21
Structural Rating
98
O&M Index
2
O&M Quick
412D
O&M Rating
58
Overall Index
3
Overall Quick
—
Overall Rating
156
Pipe schematic from manhole 18 0353 to 18 0352
MH: 18 0353MH: 18 0352downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 03530 ft. MWL - Water Level, 35 %of cross sectional area4.7 ft. CM - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES16.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"27.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES47.9 ft. CM - Crack Multiple, from 09 to 01 o'clock, within 8 inches of joint: YES53.4 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES67.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start69.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"76.9 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start117.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"166.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"209.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"210.7 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish212 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish218.8 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH218.8 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK218.9 ft. AMH - Downstream Manhole, Survey Ends - 18 0352

Observation photos (6)

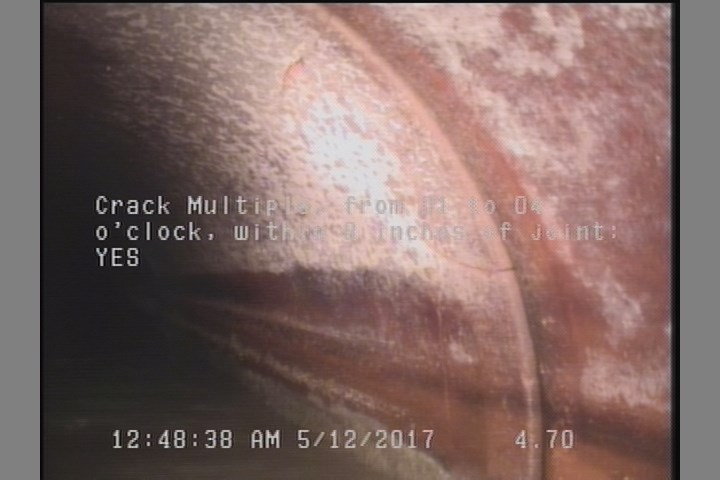

  • Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

    4.7 ft. - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

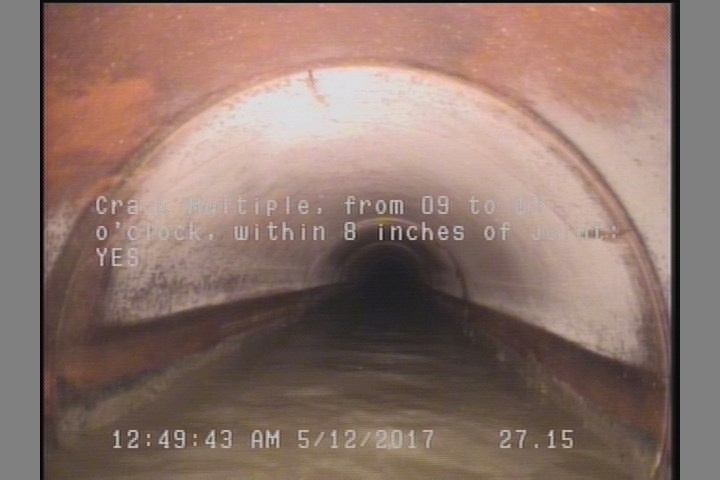

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    27.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

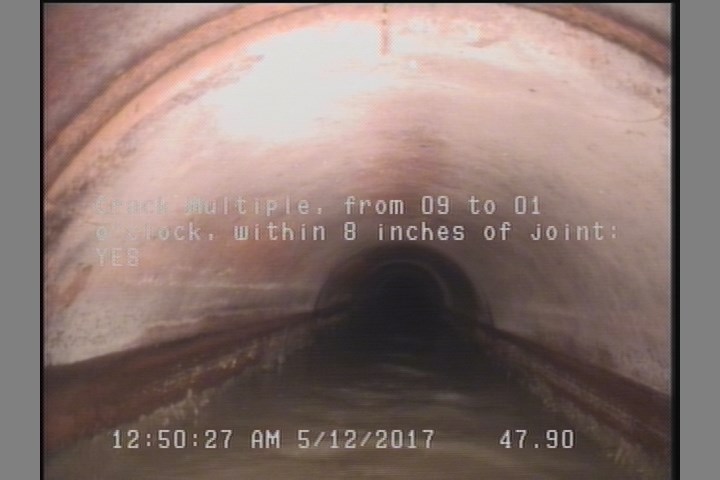

  • Crack Multiple, from 09 to 01 o'clock, within 8 inches of joint: YES

    47.9 ft. - Crack Multiple, from 09 to 01 o'clock, within 8 inches of joint: YES

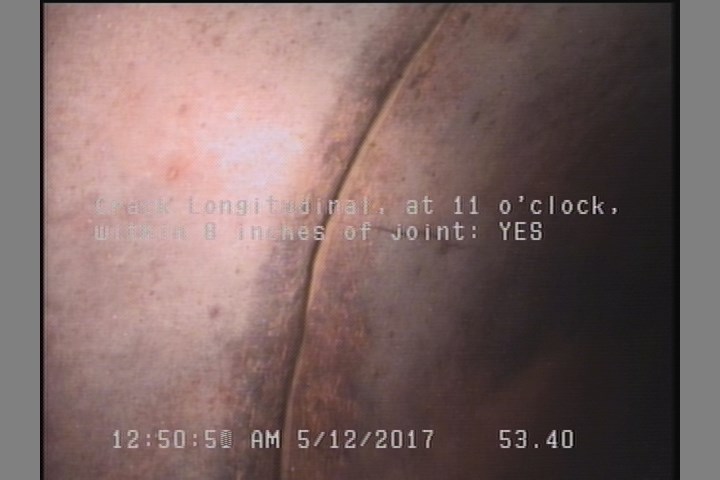

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    53.4 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

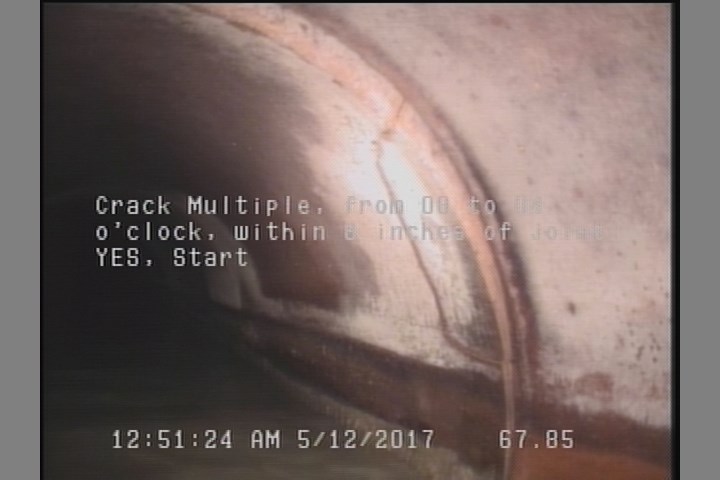

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    67.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

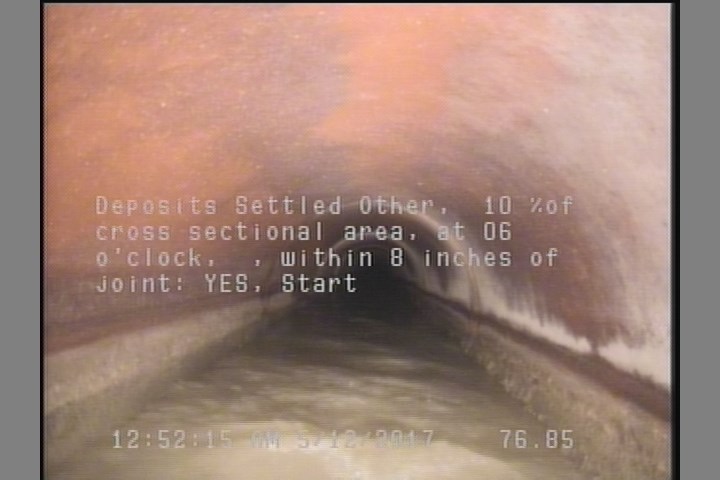

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    76.9 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

All inspections of P14187Work order 630481

Observations (20)

DistanceCodeObservation
27.2CM—
76.9DSZ—
218.9AMH18 0352
53.4CL—
117.8TFC—
218.8MGOCAPPED LATERAL 9 O'CLOCK @ MH
0MGOCONNECTION AT MH 9 O'CLOCK
16.8TFC—
67.9CM—
69.9TFC—
218.8MGOCONNECTION AT MH 3 O'CLOCK
210.7DSZ—
0MWM—
47.9CM—
209.9TFC—
0AMH18 0353
0MWL—
4.7CM—
166.4TFC—
212CM—
