Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 12, 2017, 07:27 AM

  • 18 0355_18 0354 _12052017_002944.mp4

Date
05/12/2017
W/O
630481
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00714
PipeID
P14189
Time
12:27 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4494
Sewer Name
18 WASHINGTON BOULEVARD TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
09
Purpose
Routine Assessment
Project
WO_635481_TV18060_MAY2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0355
Downstream MH
18 0354
Dir. of Survey
Downstream
Length Surveyed
124.4 ft.
Total Length
124.5 ft.
Structural Index
3
Structural Quick
3222
Structural Rating
10
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 18 0355 to 18 0354
MH: 18 0355MH: 18 0354downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 18 03550 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. MWL - Water Level, 35 %of cross sectional area6.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES24.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"25.9 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES55 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES71.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"87 ft. CM - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES114.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"124.5 ft. AMH - Downstream Manhole, Survey Ends - 18 0354

Observation photos (4)

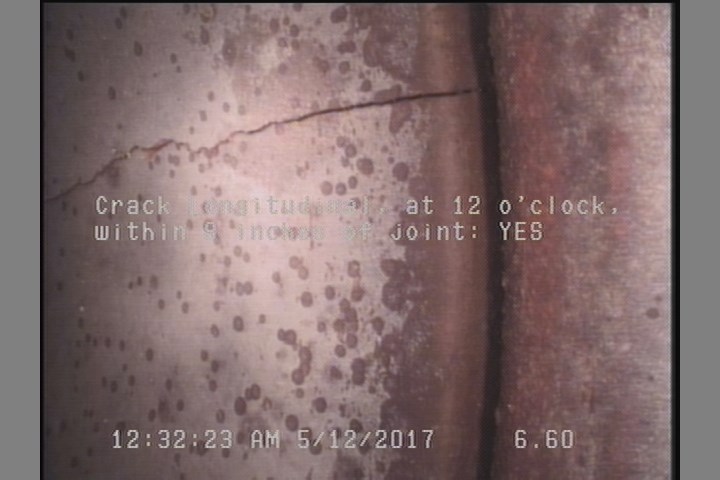

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    6.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

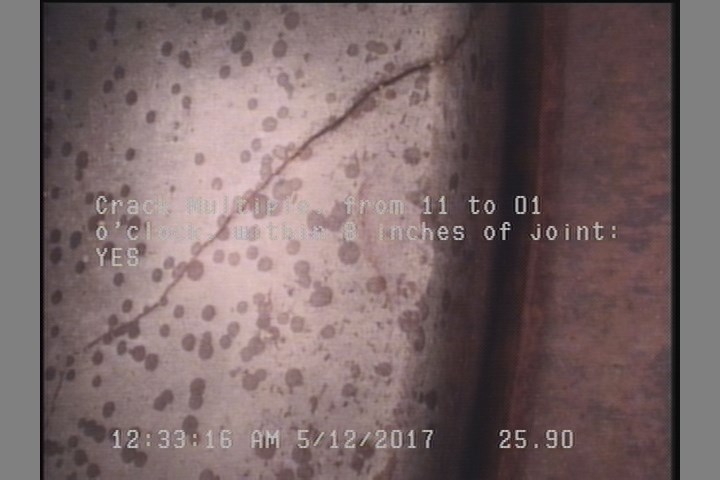

  • Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    25.9 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

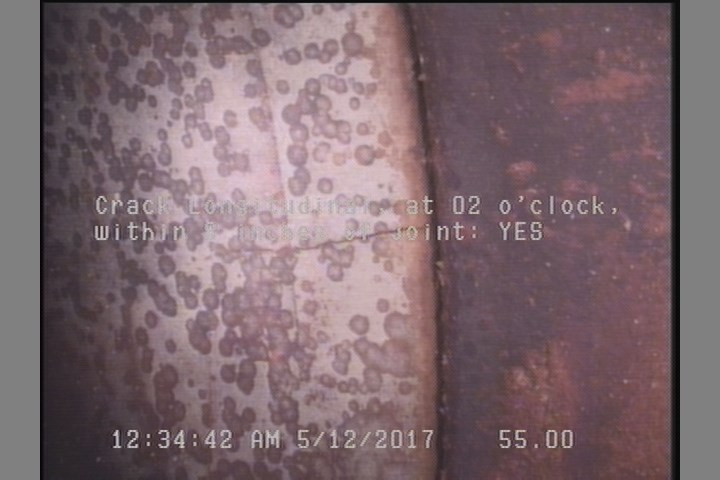

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    55 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

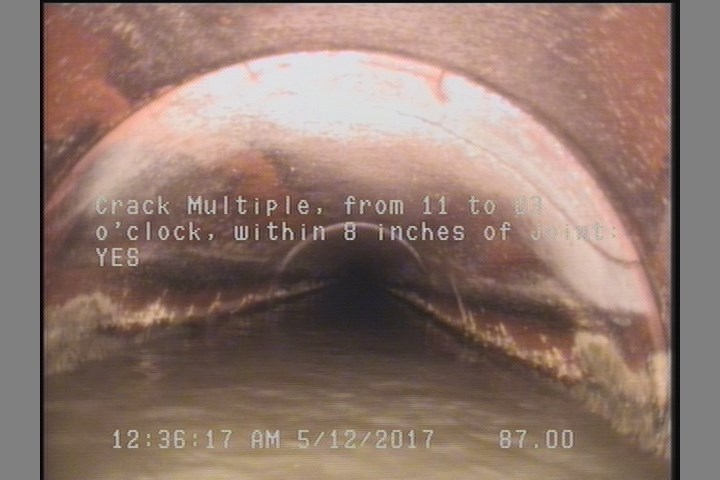

  • Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

    87 ft. - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

All inspections of P14189Work order 630481

Observations (12)

DistanceCodeObservation
87CM—
55CL—
24.5TFC—
71.3TFC—
0MGOCONNECTION AT MH 9 O'CLOCK
0AMH18 0355
0MWM—
6.6CL—
114.6TFC—
25.9CM—
124.5AMH18 0354
0MWL—

Properties (6)

additional_info
SC345303
custom_field_two
4
customer
LACSD
datetime
2017-05-12T00:27:04-07:00
documentation
PROPIPE
is_lateral_inspection
false
