Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 10, 2017, 07:42 AM

  • 18 0360_18 0359 _10052017_004351.mp4

Date
05/10/2017
W/O
630481
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00714
PipeID
P14194
Time
12:42 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4492
Sewer Name
18 WASHINGTON BOULEVARD TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
09
Purpose
Routine Assessment
Project
WO_635481_TV18060_MAY2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0360
Downstream MH
18 0359
Dir. of Survey
Downstream
Length Surveyed
196.5 ft.
Total Length
196.5 ft.
Structural Index
3
Structural Quick
3D21
Structural Rating
85
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
89
Pipe schematic from manhole 18 0360 to 18 0359
MH: 18 0360MH: 18 0359downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 036011.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES23.6 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"24.8 ft. CC - Crack Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES55.1 ft. CC - Crack Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES60.3 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES65.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start71.8 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"195.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish196.5 ft. AMH - Downstream Manhole, Survey Ends - 18 0359196.5 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK196.5 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED

Observation photos (5)

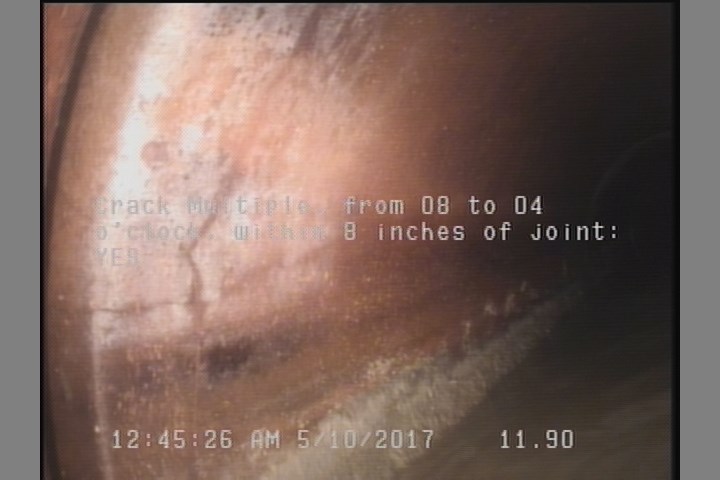

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    11.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

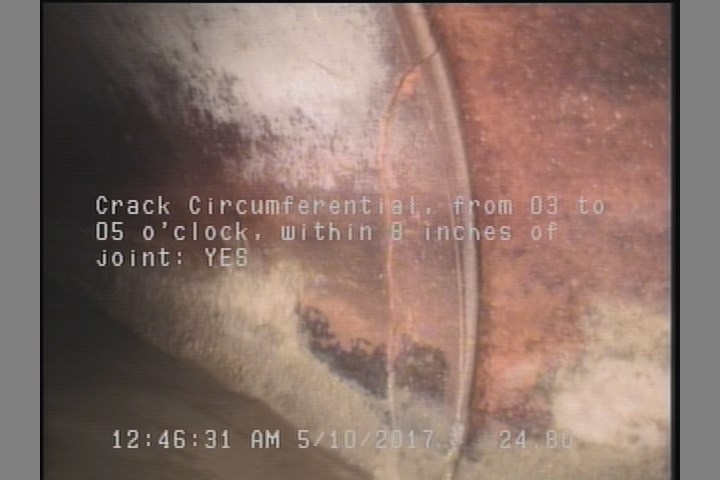

  • Crack Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES

    24.8 ft. - Crack Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES

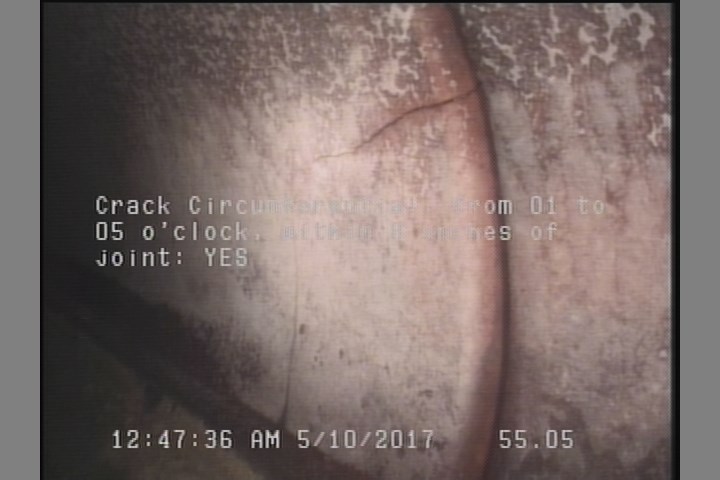

  • Crack Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES

    55.1 ft. - Crack Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES

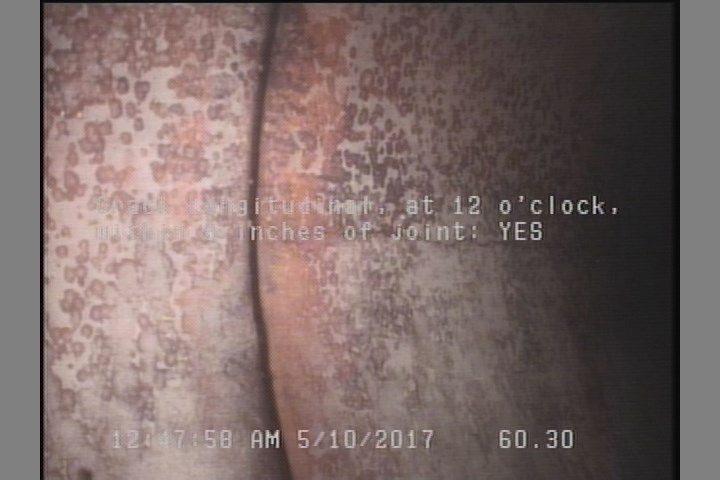

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    60.3 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

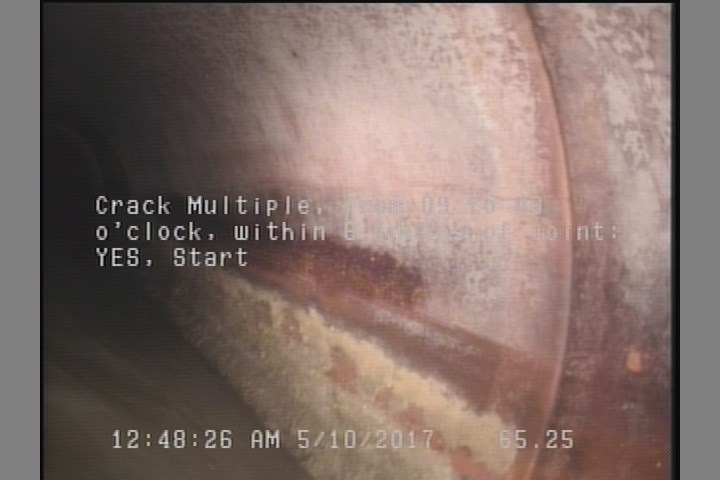

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    65.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P14194Work order 630481

Observations (15)

DistanceCodeObservation
24.8CC—
0MWM—
23.6TFC—
196.5AMH18 0359
0MGOCONNECTION AT MH 3 O'CLOCK CAPPED
71.8TFC—
55.1CC—
11.9CM—
0MWL—
196.5MGOCONNECTION AT MH 9 O'CLOCK
195.2CM—
60.3CL—
196.5MGOCONNECTION AT MH 3 O'CLOCK CAPPED
0AMH18 0360
65.3CM—

Properties (6)

additional_info
SC345301
custom_field_two
3
customer
LACSD
datetime
2017-05-10T00:42:35-07:00
documentation
PROPIPE
is_lateral_inspection
false
