Wastewater/Activity/PacpInspection/1.0Oct 10, 2019, 05:14 AM

  • H 0637_H 0616_10092019_215911.mp4

Date
10/09/2019
W/O
792843
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00192
PipeID
P20469
Time
10:14 PM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6102
Sewer Name
H JOINT OUTFALL H - UNIT 8J
City
BALDWIN PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
24
Purpose
Routine Assessment
Project
RFIR_WO_792843_TV15199_OCT2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
H 0637
Downstream MH
H 0616
Dir. of Survey
Downstream
Length Surveyed
497 ft.
Total Length
497 ft.
Structural Index
3
Structural Quick
413c
Structural Rating
748
O&M Index
2
O&M Quick
2R00
O&M Rating
194
Overall Index
2
Overall Quick
—
Overall Rating
942
Pipe schematic from manhole H 0637 to H 0616
MH: H 0637MH: H 0616downstream0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start0 ft. MWLS - Water Level, Sag in pipe, 40 %of cross sectional area, Change0 ft. AMH - Upstream Manhole, Survey Begins - H 06370 ft. MWL - Water Level, 45 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start10 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"10.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start10.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"18.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"22.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"35.6 ft. MWLS - Water Level, Sag in pipe, 40 %of cross sectional area, Start72.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"96.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"146.2 ft. MWLS - Water Level, Sag in pipe, 40 %of cross sectional area, Finish146.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"157.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"169.5 ft. MWLS - Water Level, Sag in pipe, 40 %of cross sectional area, Start177.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"191.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"215.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"223.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"272.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"277.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"322.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"326.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"387.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"392.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"416.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"445.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"475 ft. MWLS - Water Level, Sag in pipe, 55 %of cross sectional area, Finish497 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish497 ft. AMH - Downstream Manhole, Survey Ends - H 0616497 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish497 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (5)

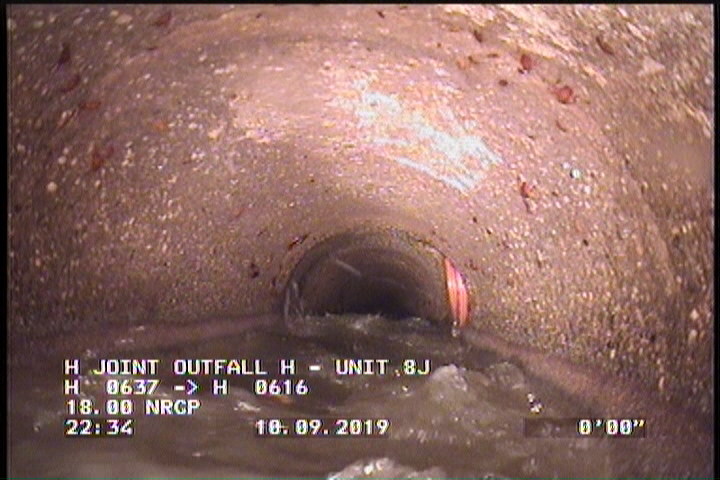

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    0 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

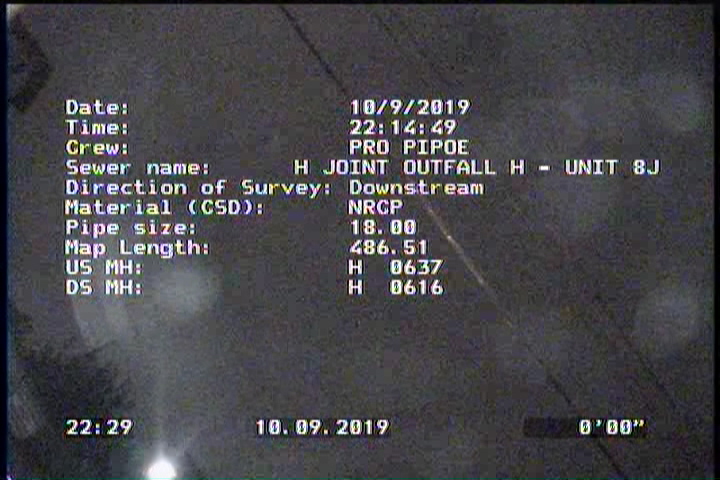

  • Upstream Manhole, Survey Begins - H 0637

    0 ft. - Upstream Manhole, Survey Begins - H 0637

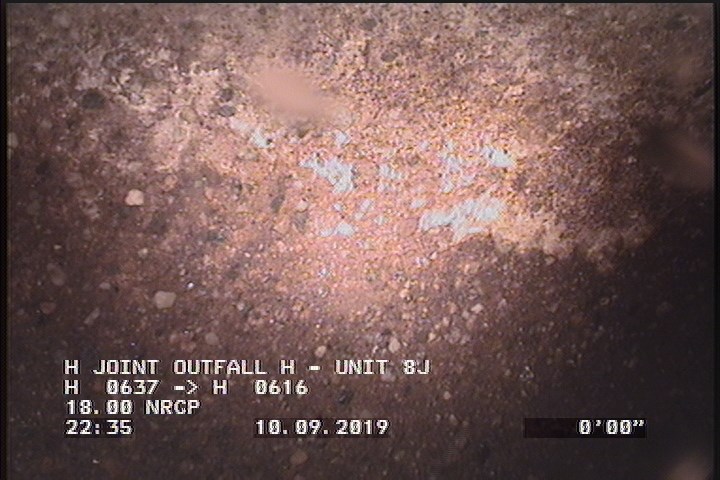

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

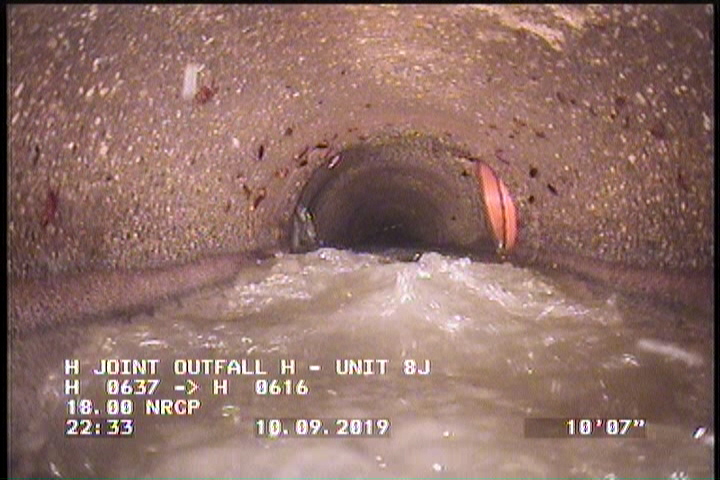

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    10.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

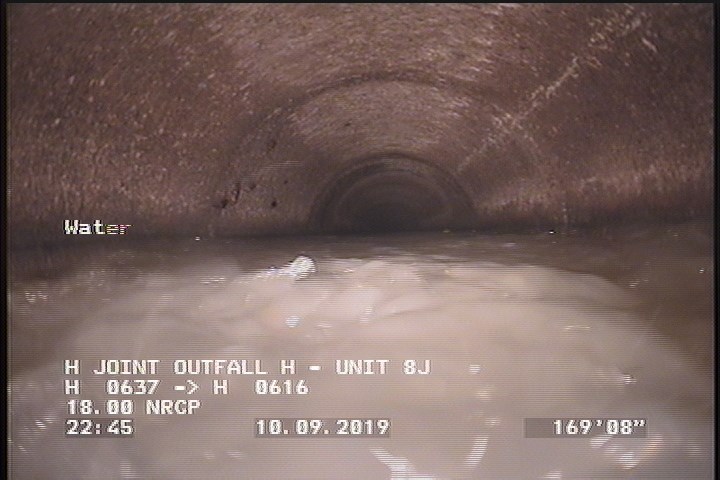

  • Water Level, Sag in pipe, 40 %of cross sectional area, Start

    169.5 ft. - Water Level, Sag in pipe, 40 %of cross sectional area, Start

All inspections of P20469Work order 792843

Observations (35)

DistanceCodeObservation
177.9TF—
35.6MWLS—
223.8TFA—
169.5MWLS—
18.9TFA—
2SAV—
322.7TFA—
0MWL—
0SSS—
10.7TFA—
10TBA—
96.6TF—
497DAGS—
0MWLS—
326.9TF—
72.3TFC—
10.1DAGS—
0AMHH 0637
497AMHH 0616
277.1TF—
22.5TFC—
445.4TFC—
416.4TFC—
146.2MWLS—
392.1TFA—
497SAV—
215.5TFC—
146.2TF—
475MWLS—
272.6TFC—
157.9TF—
497SSS—
0MWL—
191.7TF—
387.6TFC—

Properties (6)

additional_info
SC378449
custom_field_two
3
customer
LACSD
datetime
2019-10-09T22:14:49-07:00
documentation
PRO PIPOE
is_lateral_inspection
false
