Wastewater/Activity/PacpInspection/1.0Oct 28, 2019, 11:02 AM
H 0089_H 0088_10282019_031128.mp4
- Date
- 10/28/2019
- W/O
- 792815
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00165
- PipeID
- P10541
- Time
- 4:02 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K7075
- Sewer Name
- H JOINT OUTFALL H - UNIT 1F
- City
- HUNTINGTON PARK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- RFIR_WO_792815_TV01220_OCT2019
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- H 0088
- Downstream MH
- H 0089
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.4 ft.
- Total Length
- 2.4 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

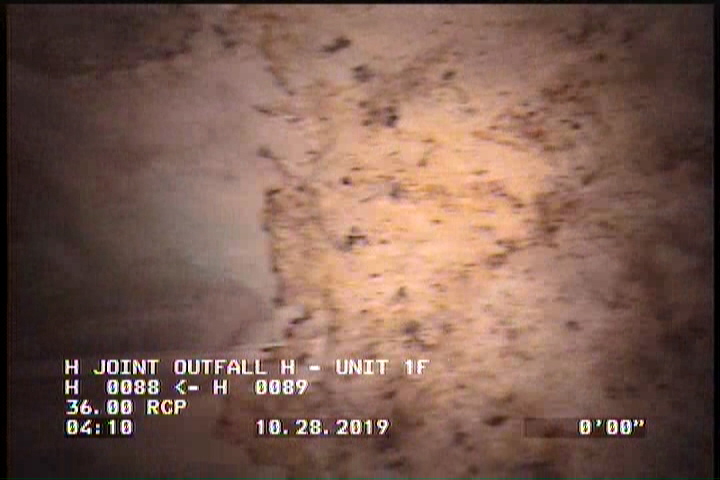

0 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES

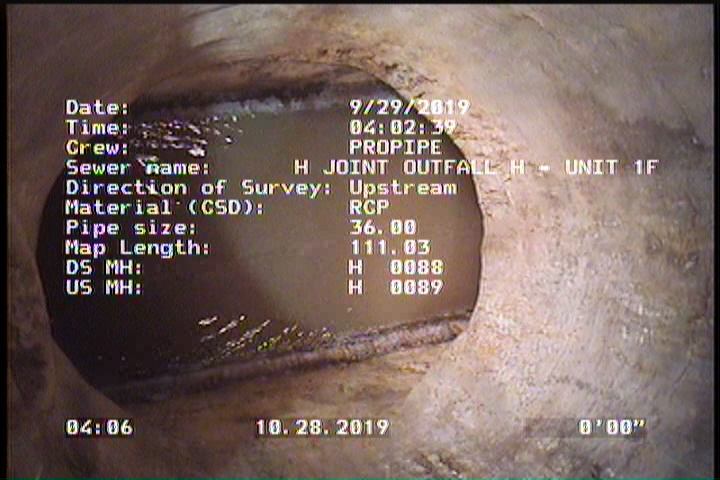

0 ft. - Downstream Manhole, Survey Begins - H 0088

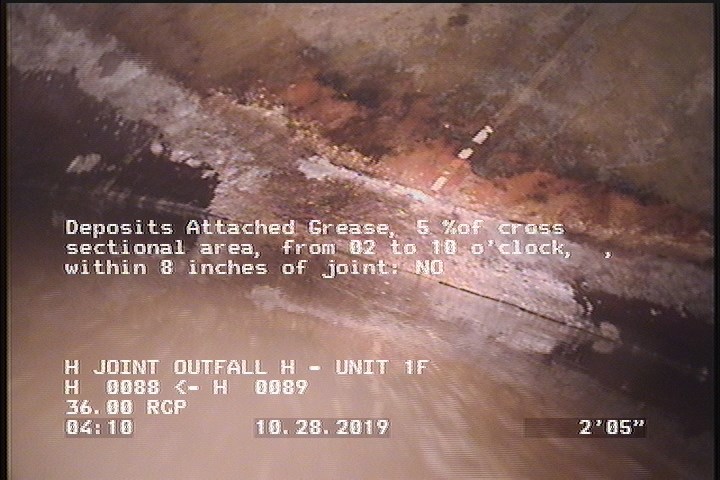

2.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: NO
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | SSS | — |
| 2.4 | MSA | VIEW OF SIPHON UPLEG |
| 0 | AMH | H 0088 |
| 0 | MWM | — |
| 0 | MGO | LINED PIPE |
| 2.4 | DAGS | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC378675
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-10-28T04:02:39-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
