Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 30, 2019, 06:03 AM

  • 08 0570_08 0569 _10292019_222431.mp4

Date
10/29/2019
W/O
792733
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00001
PipeID
P00612
Time
11:03 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K7078
Sewer Name
08 AVALON BOULEVARD TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
04
Purpose
Routine Assessment
Project
RFIR_WO_792733_TV08180_OCT2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
08 0570
Downstream MH
08 0569
Dir. of Survey
Downstream
Length Surveyed
352.6 ft.
Total Length
352.6 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
177
O&M Index
2
O&M Quick
2X00
O&M Rating
250
Overall Index
2
Overall Quick
—
Overall Rating
427
Pipe schematic from manhole 08 0570 to 08 0569
MH: 08 0570MH: 08 0569downstream0 ft. AMH - Upstream Manhole, Survey Begins - 08 05700 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area36.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES67.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start73.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start92.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"211 ft. FS - Fracture Spiral, from 11 to 12 o'clock, within 8 inches of joint: YES291.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"351.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish351.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish352 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish352.6 ft. AMH - Downstream Manhole, Survey Ends - 08 0569

Observation photos (6)

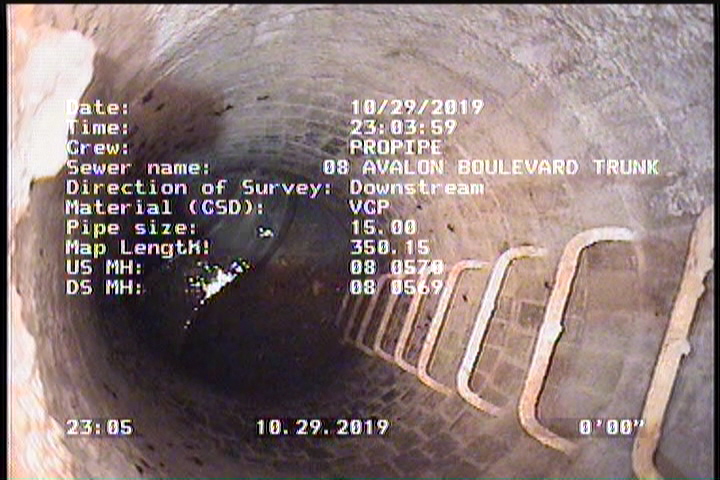

  • Upstream Manhole, Survey Begins - 08 0570

    0 ft. - Upstream Manhole, Survey Begins - 08 0570

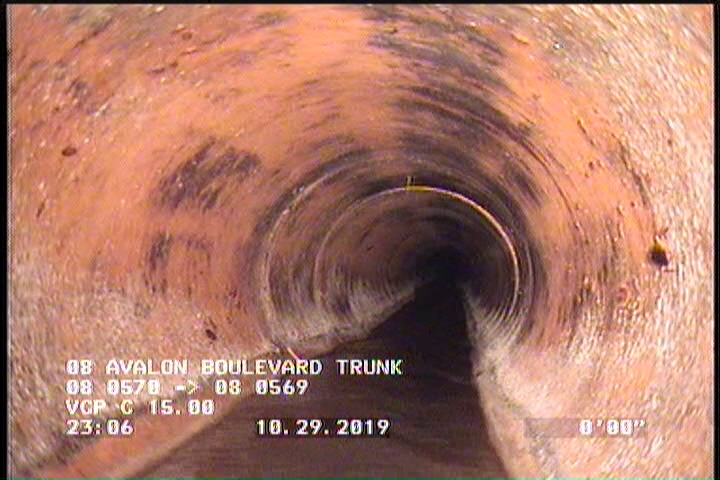

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    36.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    67.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    73.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Fracture Spiral, from 11 to 12 o'clock, within 8 inches of joint: YES

    211 ft. - Fracture Spiral, from 11 to 12 o'clock, within 8 inches of joint: YES

All inspections of P00612Work order 792733

Observations (14)

DistanceCodeObservation
352.6AMH08 0569
67.2CM—
211FS—
0AMH08 0570
0DAGS—
92.4TFC—
73.9DAGS—
352DAGS—
291.9TFC—
351.2DAGS—
0MWL—
36.5CM—
351.2CM—
0MWM—

Properties (6)

additional_info
SC378678
custom_field_two
3
customer
LACSD
datetime
2019-10-29T23:03:59-07:00
documentation
PROPIPE
is_lateral_inspection
false
