Wastewater/Activity/PacpInspection/1.0Sep 26, 2019, 08:58 AM
22 0856_22 0855 _09262019_012445.mp4
- Date
- 09/26/2019
- W/O
- 792450
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00803
- PipeID
- P17222
- Time
- 1:58 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6088
- Sewer Name
- 22 DALTON TRUNK, SECTION 3
- City
- AZUSA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- RFIR_WO_792450_TV22158_OCT2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 22 0856
- Downstream MH
- 22 0855
- Dir. of Survey
- Downstream
- Length Surveyed
- 390.3 ft.
- Total Length
- 390.3 ft.
- Structural Index
- 2
- Structural Quick
- 3N2N
- Structural Rating
- 374
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 156
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 530
Observation photos (4)

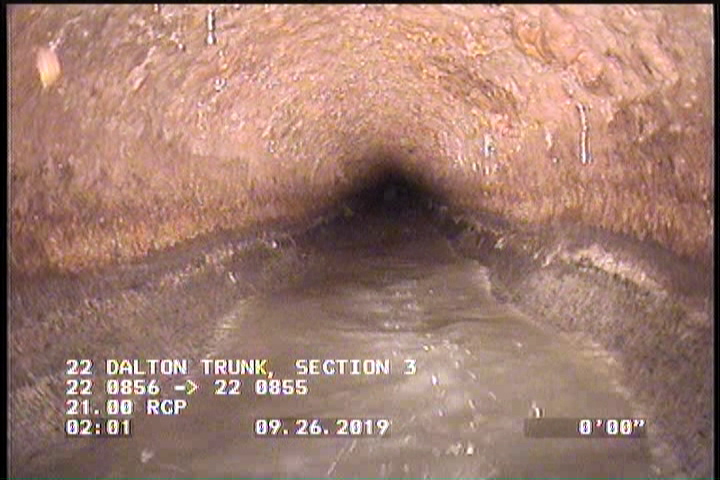

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

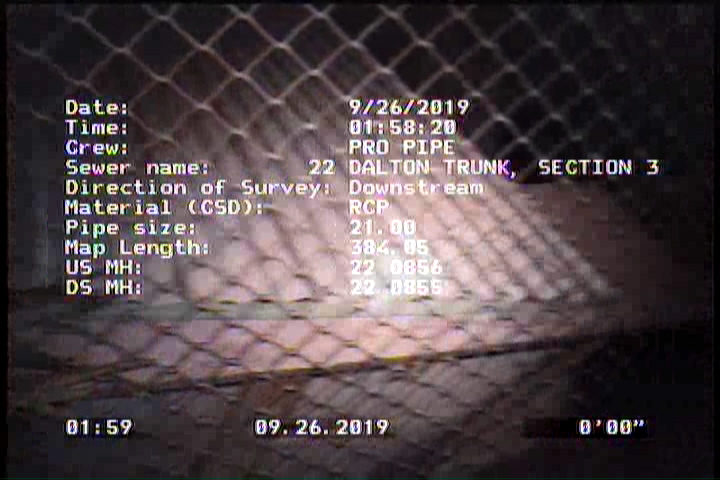

0 ft. - Upstream Manhole, Survey Begins - 22 0856

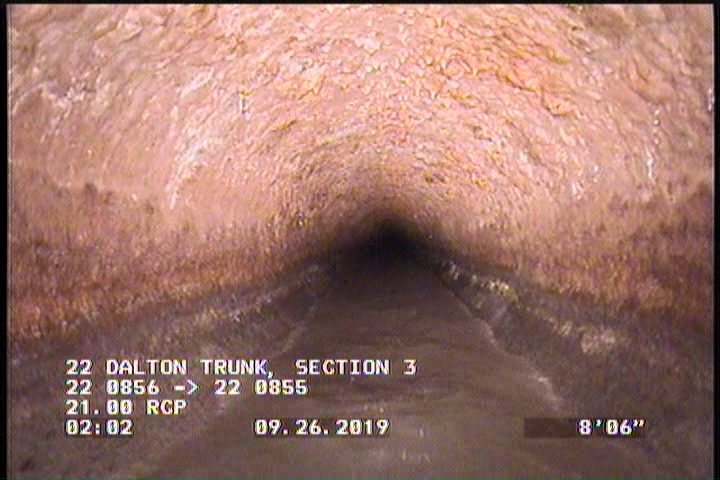

8.1 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

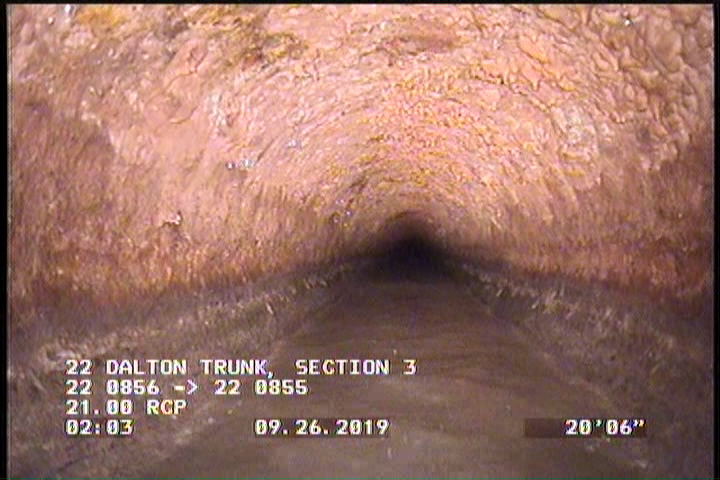

20.1 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | MAG COAT THROUGHOUT |
| 387.7 | MGO | MAG COAT THROUGHOUT END |
| 8.1 | SSS | — |
| 0 | MWM | — |
| 124.8 | TFC | — |
| 0 | DAGS | — |
| 168.8 | TFA | — |
| 390 | SSS | — |
| 0 | MWL | — |
| 20.1 | SAP | — |
| 390 | SAP | — |
| 390 | DAGS | — |
| 0 | AMH | 22 0856 |
| 390.3 | AMH | 22 0855 |
Properties (6)
- additional_info
- SC378435
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-09-26T01:58:20-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
