Wastewater/Activity/PacpInspection/1.0Jan 15, 2019, 06:10 AM
22 0263_22 0262 _01142019_222449.mp4
- Date
- 01/14/2019
- W/O
- 745520
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00793
- PipeID
- P16545
- Time
- 10:10 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6304
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745520_TV22016_JAN2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0263
- Downstream MH
- 22 0262
- Dir. of Survey
- Downstream
- Length Surveyed
- 250.9 ft.
- Total Length
- 250.9 ft.
- Structural Index
- 2
- Structural Quick
- 322I
- Structural Rating
- 104
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 108
Observation photos (3)

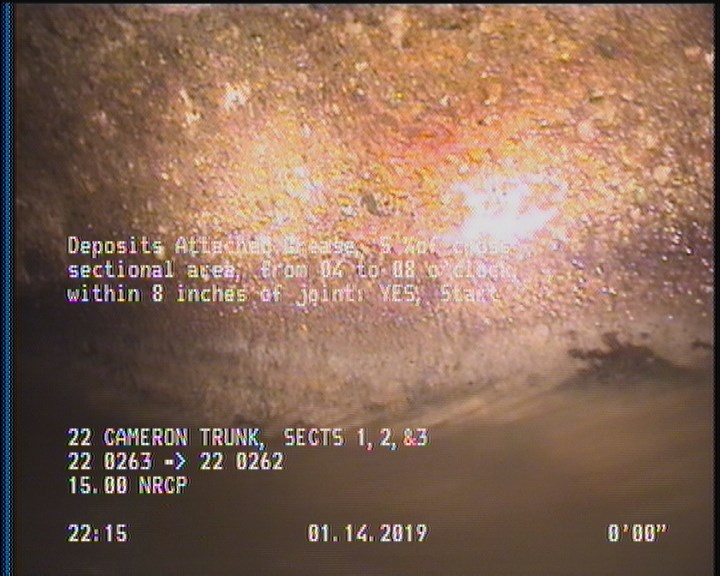

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

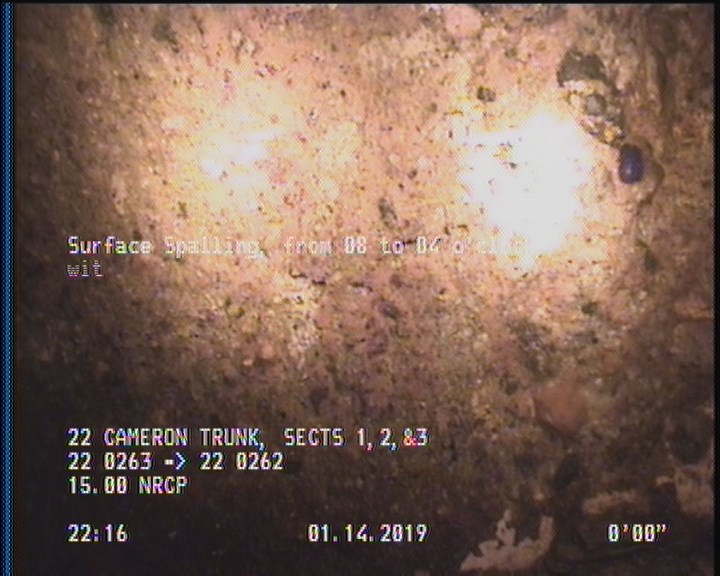

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

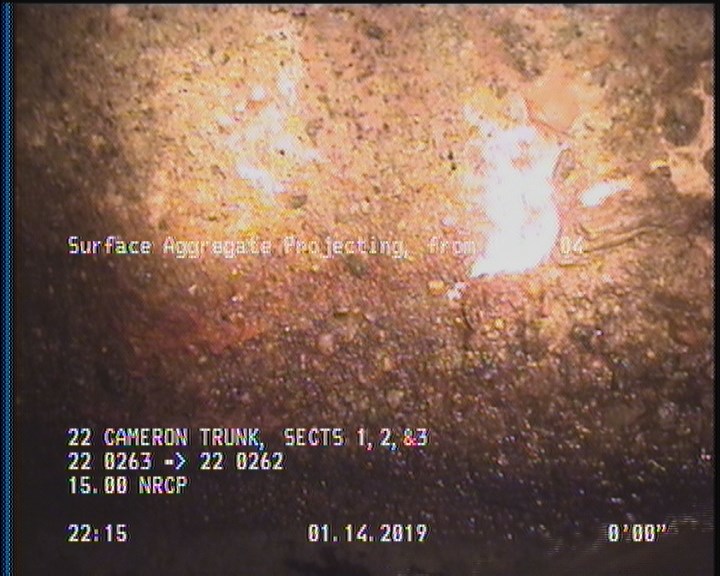

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 22 0263 |
| 2 | DAGS | — |
| 11.8 | TFC | — |
| 156.9 | TFC | — |
| 2 | SSS | — |
| 0 | MWM | — |
| 2 | SAP | — |
| 250.9 | AMH | 22 0262 |
| 250.9 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 208 | TFC | — |
| 54.2 | TFA | — |
| 249 | DAGS | — |
| 0 | MWL | — |
| 249 | SAP | — |
| 159.8 | TFC | — |
| 111.3 | TFC | — |
| 249 | SSS | — |
Properties (6)
- additional_info
- SC365670
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-14T22:10:50-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
