Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 11, 2019, 12:09 PM

  • 22 1388_22 0268_02112019_041812.mp4

Date
02/11/2019
W/O
745520
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00793
PipeID
P16553
Time
4:09 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6389
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
RFIR_WO_745520_TV22016_JAN2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0268
Downstream MH
22 1388
Dir. of Survey
Upstream
Length Surveyed
22 ft.
Total Length
22 ft.
Structural Index
3
Structural Quick
3422
Structural Rating
16
O&M Index
3
O&M Quick
4134
O&M Rating
24
Overall Index
3
Overall Quick
—
Overall Rating
40
Pipe schematic from manhole 22 0268 to 22 1388
MH: 22 0268MH: 22 1388upstream0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish0 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish0 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish0 ft. MSA - Survey Abandoned - DUE TO DEBRIS.9.4 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start20 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - DEBRIS UNDER WATER20 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start20 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start22 ft. MWL - Water Level, 5 %of cross sectional area22 ft. AMH - Downstream Manhole, Survey Begins - 22 026822 ft. MWM - Water Mark, 50 %of cross sectional area

Observation photos (5)

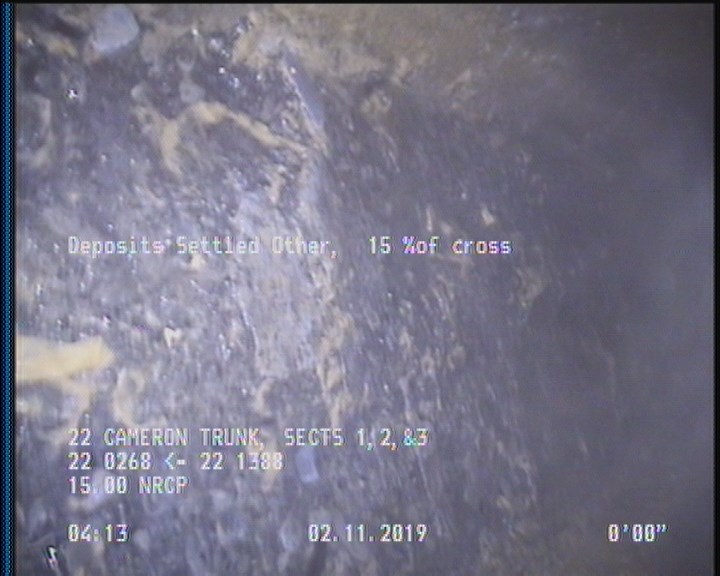

  • Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - DEBRIS UNDER WATER

    2 ft. - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - DEBRIS UNDER WATER

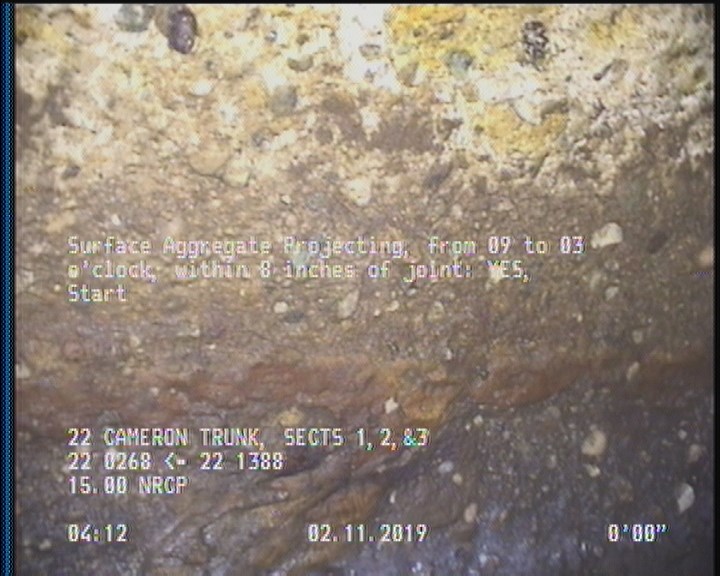

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

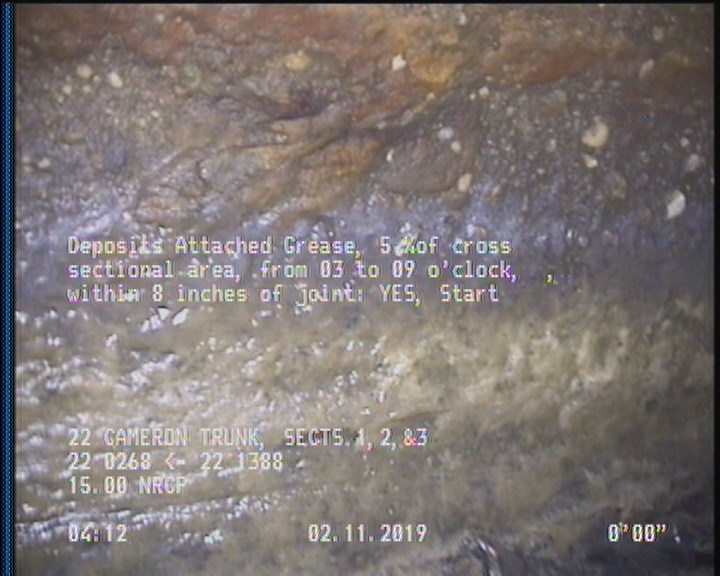

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

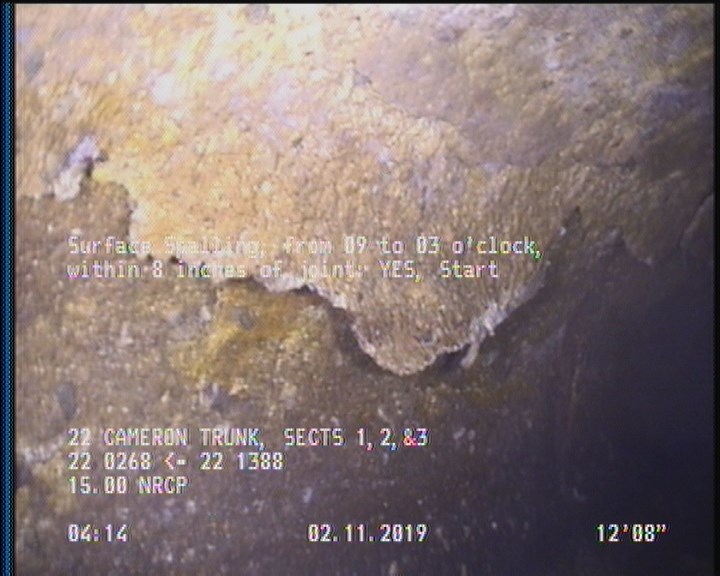

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    12.6 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

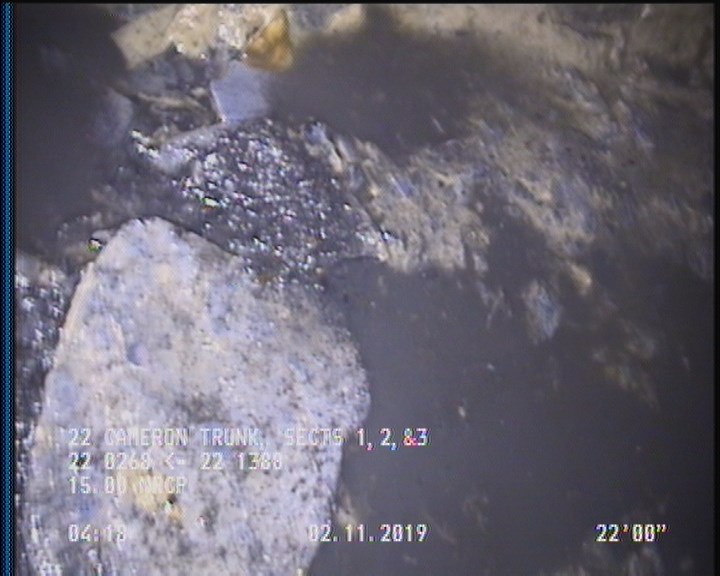

  • Survey Abandoned - DUE TO DEBRIS.

    22 ft. - Survey Abandoned - DUE TO DEBRIS.

All inspections of P16553Work order 745520

Observations (12)

DistanceCodeObservation
2DSZDEBRIS UNDER WATER
22DAGS—
22DSZ—
0MWL—
12.6SSS—
0AMH22 0268
2SAP—
2DAGS—
22SAP—
0MWM—
22SSS—
22MSADUE TO DEBRIS.

Properties (6)

additional_info
SC365700
custom_field_two
5
customer
LACSD
datetime
2019-02-11T04:09:06-08:00
documentation
PRO PIPE
is_lateral_inspection
false
