Wastewater/Activity/PacpInspection/1.0Jan 16, 2019, 06:39 AM
22 0249_22 0248 _01152019_225534.mp4
- Date
- 01/15/2019
- W/O
- 745520
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00793
- PipeID
- P16531
- Time
- 10:39 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6356
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745520_TV22016_JAN2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0249
- Downstream MH
- 22 0248
- Dir. of Survey
- Downstream
- Length Surveyed
- 293.8 ft.
- Total Length
- 293.8 ft.
- Structural Index
- 3
- Structural Quick
- 3K2K
- Structural Rating
- 290
- O&M Index
- 2
- O&M Quick
- 4113
- O&M Rating
- 7
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 297
Observation photos (5)

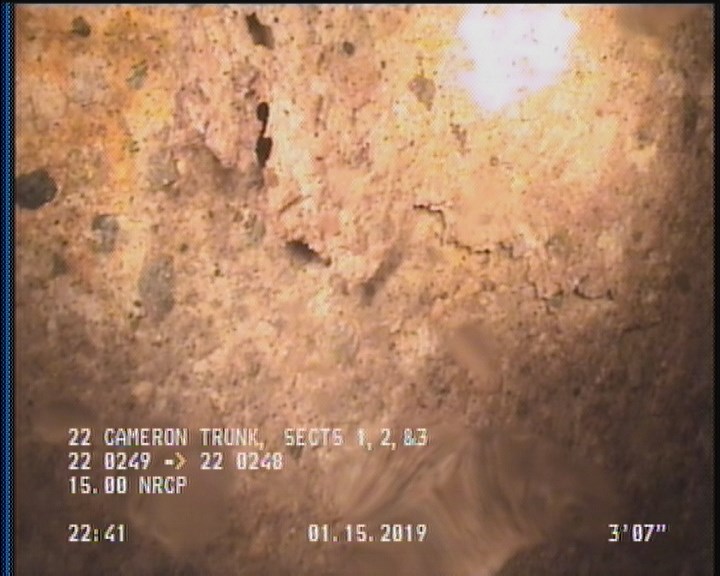

2.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

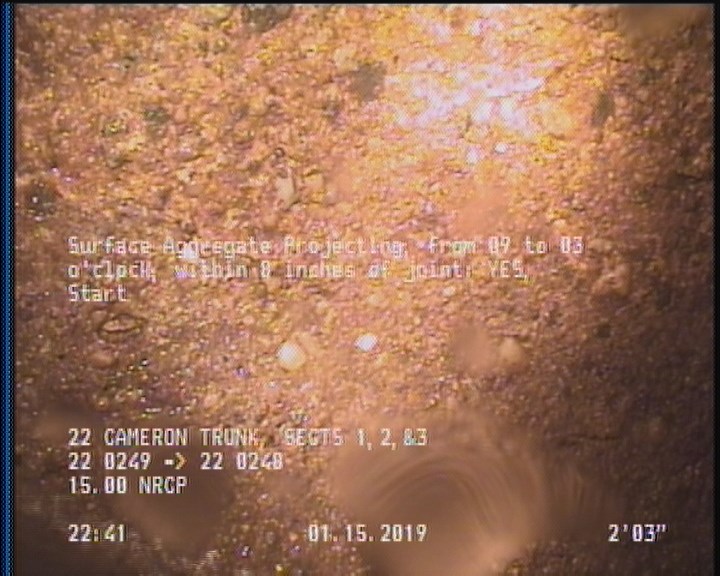

2.2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

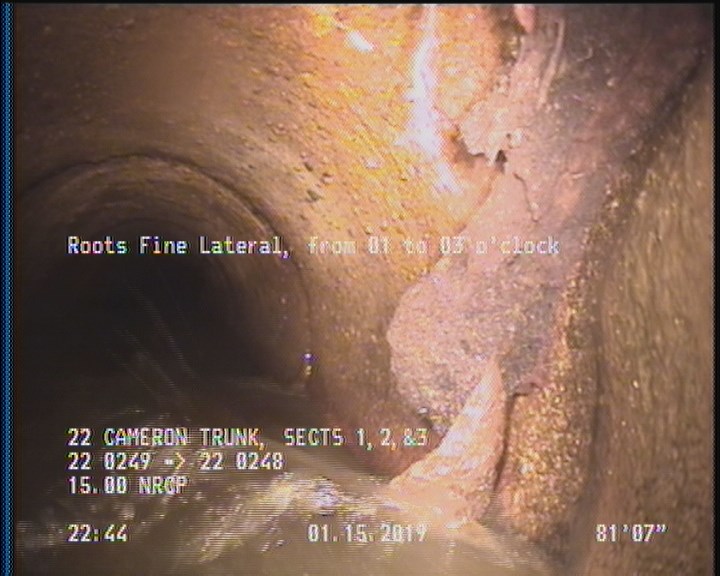

81.6 ft. - Roots Fine Lateral, from 01 to 03 o'clock

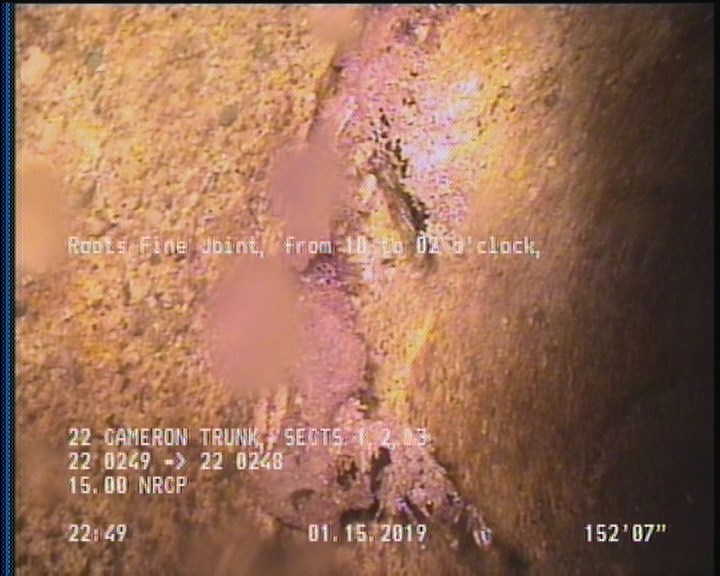

152.6 ft. - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR

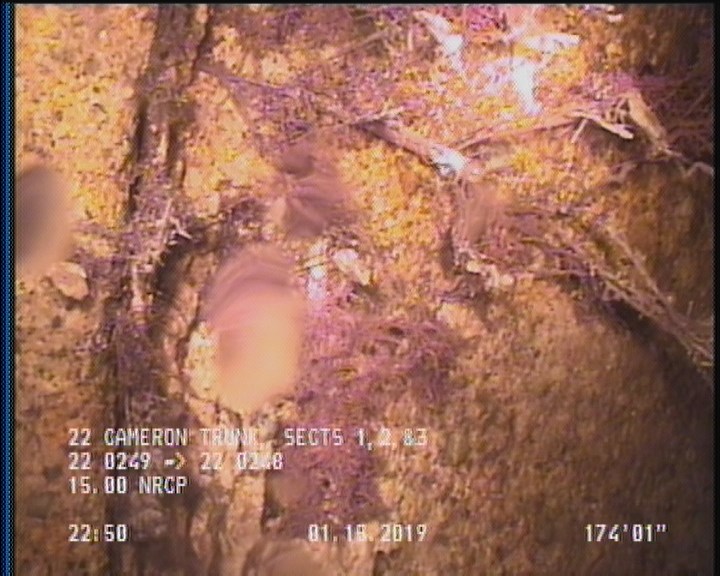

174.1 ft. - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR
Observations (22)
| Distance | Code | Observation |
|---|---|---|
| 2.2 | SSS | — |
| 292.2 | SAP | — |
| 292.2 | SSS | — |
| 260.1 | TFA | — |
| 2.2 | SAP | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 174.1 | RFJ | — |
| 160.2 | TFA | — |
| 81.6 | RFL | — |
| 69.8 | TFC | — |
| 293.8 | AMH | 22 0248 |
| 15.3 | TFC | — |
| 0 | MWL | — |
| 81.6 | TFA | — |
| 152.6 | RFJ | — |
| 24.3 | TFC | — |
| 163.2 | TFC | — |
| 0 | MWM | — |
| 214.8 | TFC | — |
| 268.8 | TFC | — |
| 0 | AMH | 22 0249 |
| 115 | TFC | — |
Properties (6)
- additional_info
- SC365672
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-15T22:39:15-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
