Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 11, 2019, 10:45 AM

  • 22 0272_22 0271_02112019_025746.mp4

Date
02/11/2019
W/O
745520
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00793
PipeID
P16557
Time
2:45 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6389
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
RFIR_WO_745520_TV22016_JAN2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0272
Downstream MH
22 0271
Dir. of Survey
Downstream
Length Surveyed
258.9 ft.
Total Length
258.9 ft.
Structural Index
4
Structural Quick
5F3I
Structural Rating
323
O&M Index
2
O&M Quick
2I00
O&M Rating
102
Overall Index
3
Overall Quick
—
Overall Rating
425
Pipe schematic from manhole 22 0272 to 22 0271
MH: 22 0272MH: 22 0271downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 02722 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start12.6 ft. SRV - Surface Reinforcement Visible, from 12 to 04 o'clock, within 8 inches of joint: YES75.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"87.2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start99.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"123 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"180.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"203.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"227.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"252.6 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish257.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish257.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish258.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK258.9 ft. AMH - Downstream Manhole, Survey Ends - 22 0271

Observation photos (4)

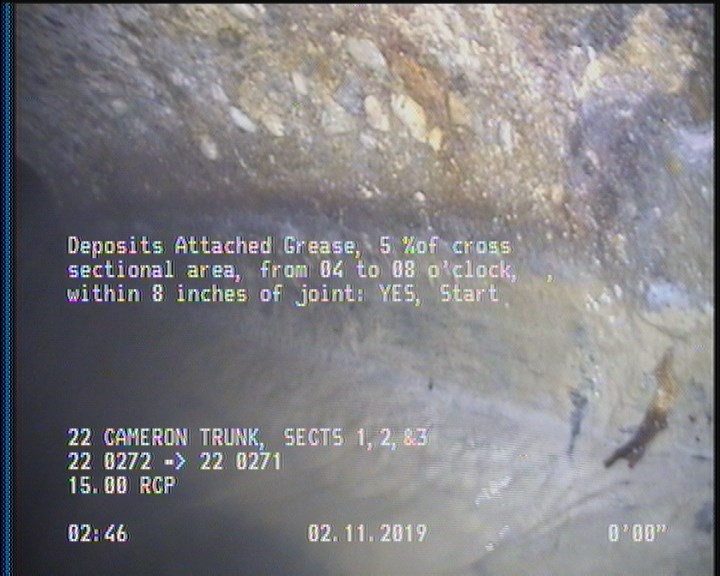

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

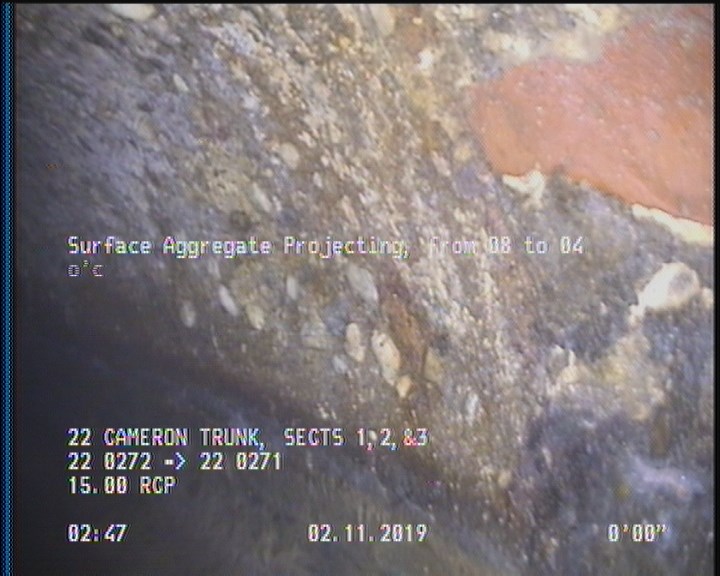

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

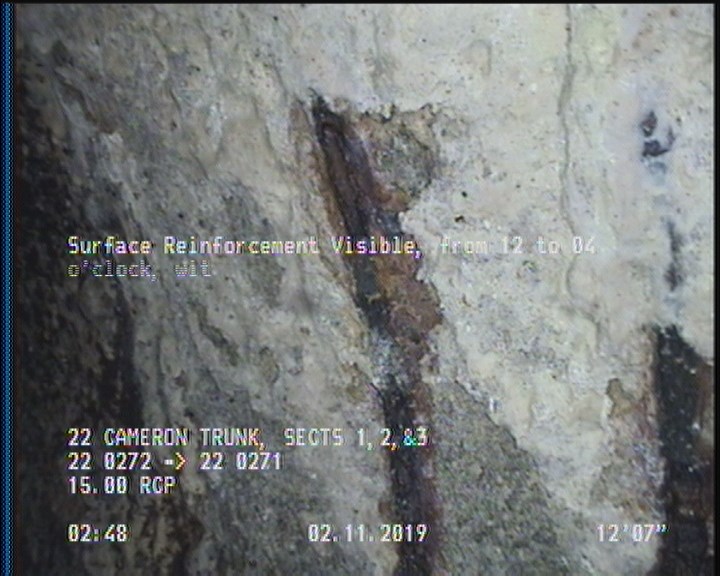

  • Surface Reinforcement Visible, from 12 to 04 o'clock, within 8 inches of joint: YES

    12.6 ft. - Surface Reinforcement Visible, from 12 to 04 o'clock, within 8 inches of joint: YES

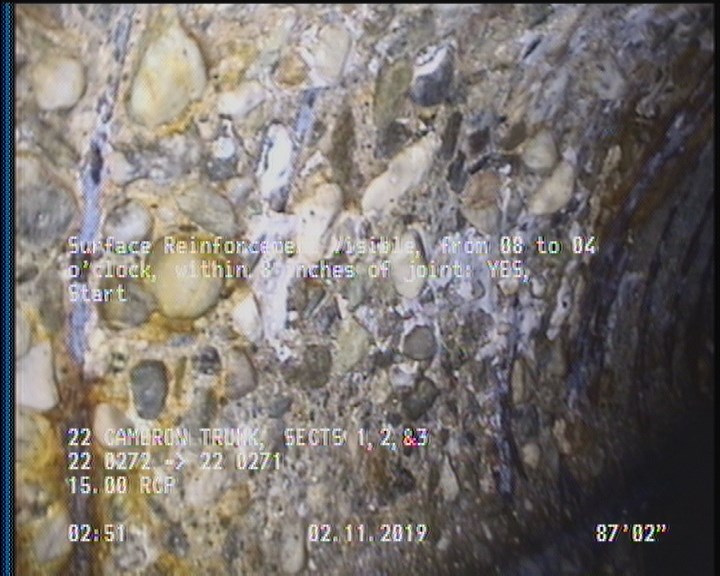

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    87.2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P16557Work order 745520

Observations (18)

DistanceCodeObservation
0MWM—
180.3TFC—
203.8TFA—
75.4TFA—
257.2DAGS—
258.9MGOACTIVE CONNECTION AT MH 3 O'CLOCK
257.2SAP—
87.2SRV—
2DAGS—
0MWL—
99.5TFA—
258.9AMH22 0271
252.6SRV—
12.6SRV—
123TFA—
227.2TFC—
2SAP—
0AMH22 0272

Properties (6)

additional_info
SC365700
custom_field_two
2
customer
LACSD
datetime
2019-02-11T02:45:01-08:00
documentation
PRO PIPE
is_lateral_inspection
false
