Wastewater/Activity/PacpInspection/1.0Jan 17, 2019, 08:50 AM
22 0270_22 0269_01172019_005911.mp4
- Date
- 01/17/2019
- W/O
- 745520
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00793
- PipeID
- P16555
- Time
- 12:50 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6358
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745520_TV22016_JAN2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0270
- Downstream MH
- 22 0269
- Dir. of Survey
- Downstream
- Length Surveyed
- 73.4 ft.
- Total Length
- 73.4 ft.
- Structural Index
- 3
- Structural Quick
- 3B2B
- Structural Rating
- 70
- O&M Index
- 2
- O&M Quick
- 3B2B
- O&M Rating
- 67
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 137
Observation photos (4)

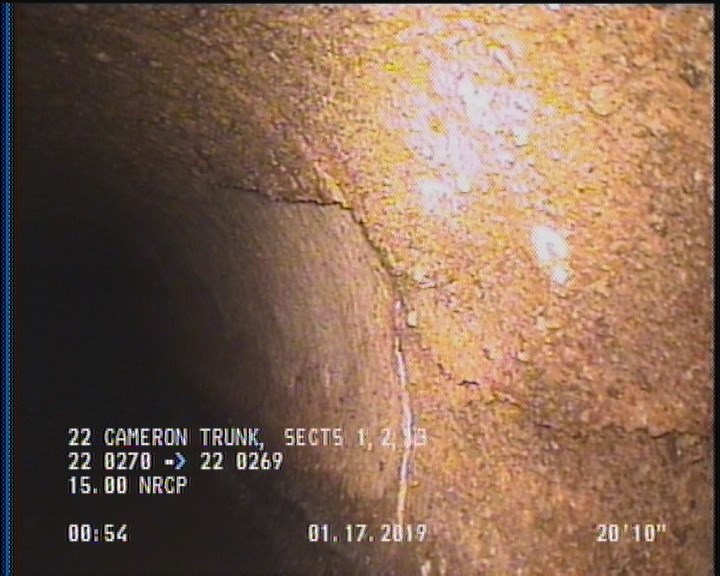

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

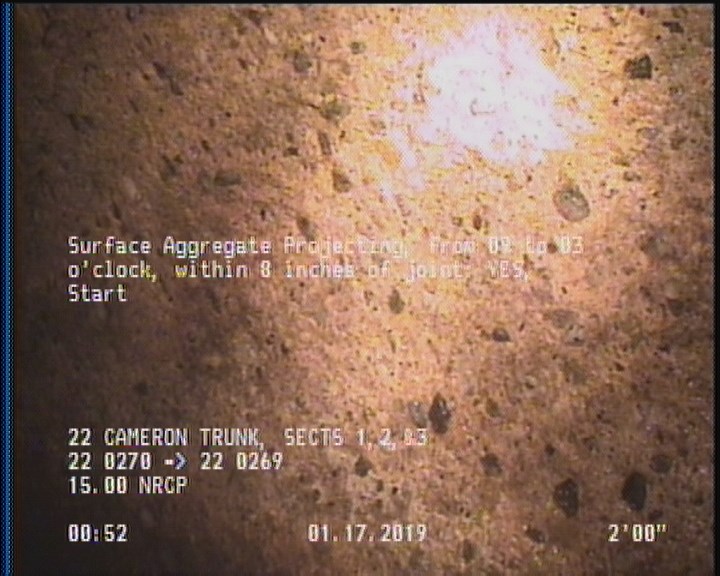

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

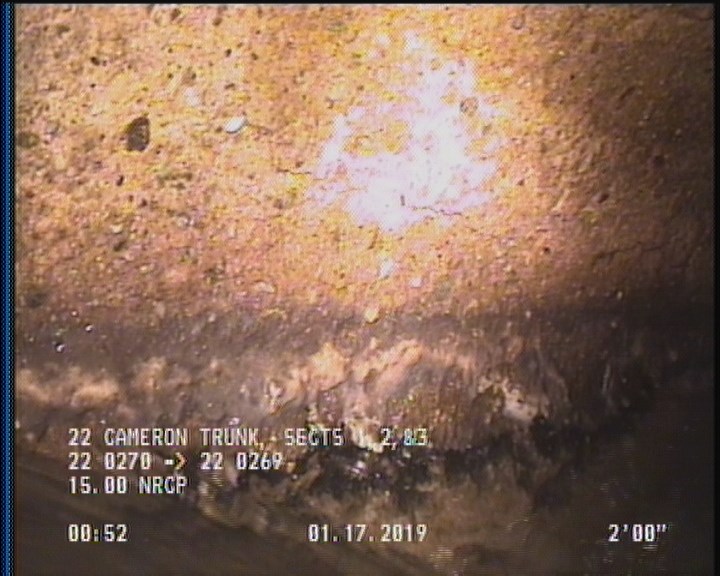

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

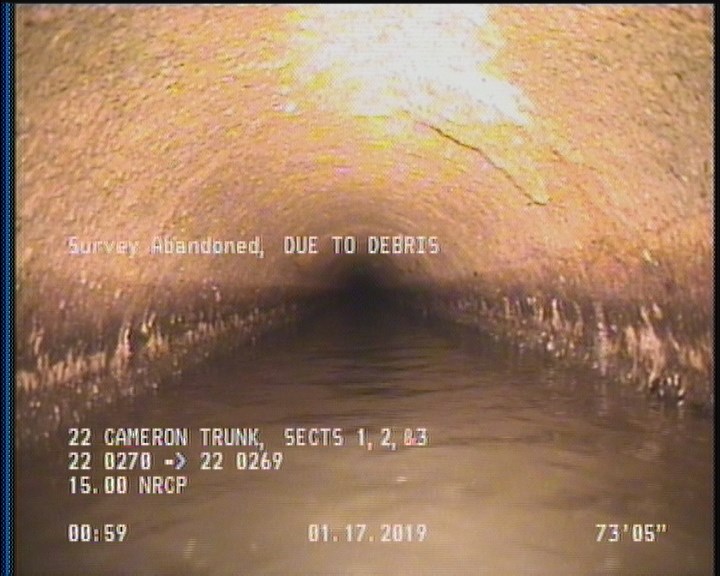

73.4 ft. - Survey Abandoned - DUE TO DEBRIS
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 27.4 | TFC | — |
| 8.9 | DSZ | DEBRIS |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 22 0270 |
| 73.4 | SAP | — |
| 2 | SSS | — |
| 73.4 | MSA | DUE TO DEBRIS |
| 73.4 | DSZ | — |
| 2 | SAP | — |
| 2 | DAGS | — |
| 73.4 | SSS | — |
| 43.8 | TFC | — |
| 73.4 | DAGS | — |
Properties (6)
- additional_info
- SC365674
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-01-17T00:50:34-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
