Wastewater/Activity/PacpInspection/1.0Jan 15, 2019, 09:53 AM
22 0255_22 0254 _01152019_020028.mp4
- Date
- 01/15/2019
- W/O
- 745520
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00793
- PipeID
- P16537
- Time
- 1:53 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6304
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745520_TV22016_JAN2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0255
- Downstream MH
- 22 0254
- Dir. of Survey
- Downstream
- Length Surveyed
- 109.5 ft.
- Total Length
- 109.5 ft.
- Structural Index
- 3
- Structural Quick
- 3C2C
- Structural Rating
- 105
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 42
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 147
Observation photos (2)

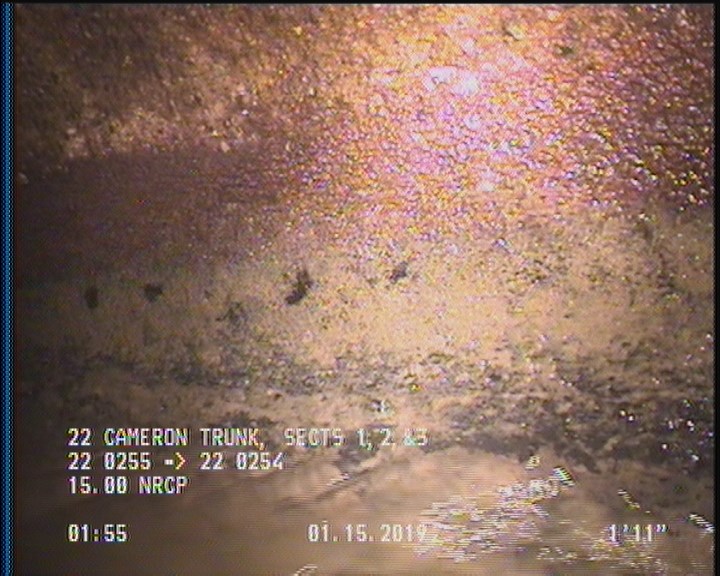

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

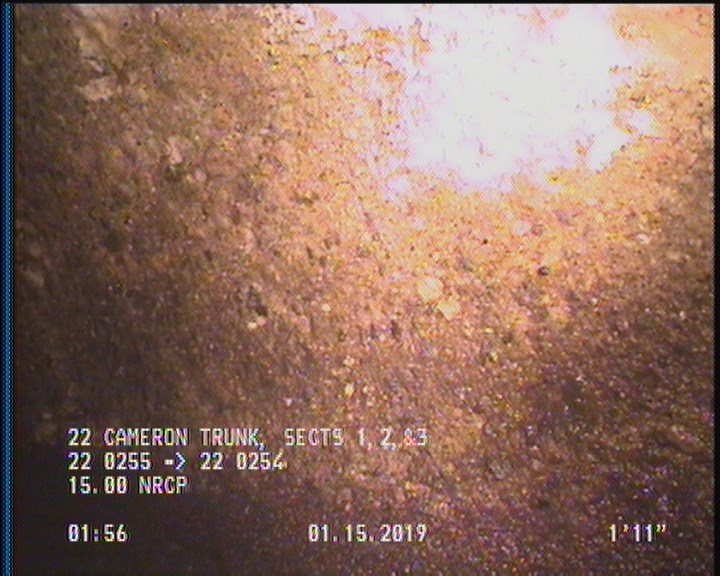

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 107.4 | DAGS | — |
| 0 | AMH | 22 0255 |
| 107.4 | SSS | — |
| 109.5 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 63.5 | TF | — |
| 2 | DAGS | — |
| 2 | SAP | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 109.5 | AMH | 22 0254 |
| 107.4 | SAP | — |
| 27.4 | TFC | — |
| 66.4 | TFC | — |
| 2 | SSS | — |
Properties (6)
- additional_info
- SC365670
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-15T01:53:39-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
