Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 11, 2019, 09:24 AM

  • 22 0275_22 0274_02112019_020500.mp4

Date
02/11/2019
W/O
745520
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00793
PipeID
P16561
Time
1:24 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6389
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
RFIR_WO_745520_TV22016_JAN2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0275
Downstream MH
22 0274
Dir. of Survey
Downstream
Length Surveyed
196.6 ft.
Total Length
196.6 ft.
Structural Index
4
Structural Quick
5B3G
Structural Rating
189
O&M Index
2
O&M Quick
2G00
O&M Rating
76
Overall Index
3
Overall Quick
—
Overall Rating
265
Pipe schematic from manhole 22 0275 to 22 0274
MH: 22 0275MH: 22 0274downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 02750 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start84.9 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start98.4 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish134.1 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start194.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish194.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish194.1 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish196.6 ft. AMH - Downstream Manhole, Survey Ends - 22 0274196.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE196.6 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (5)

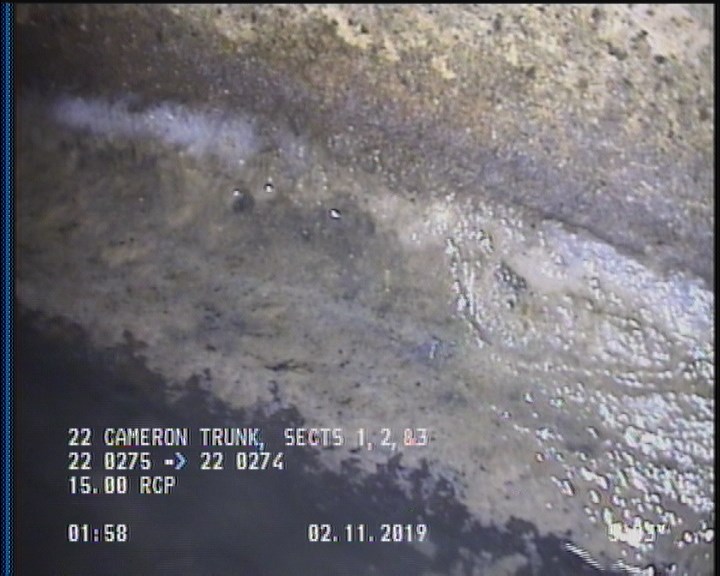

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

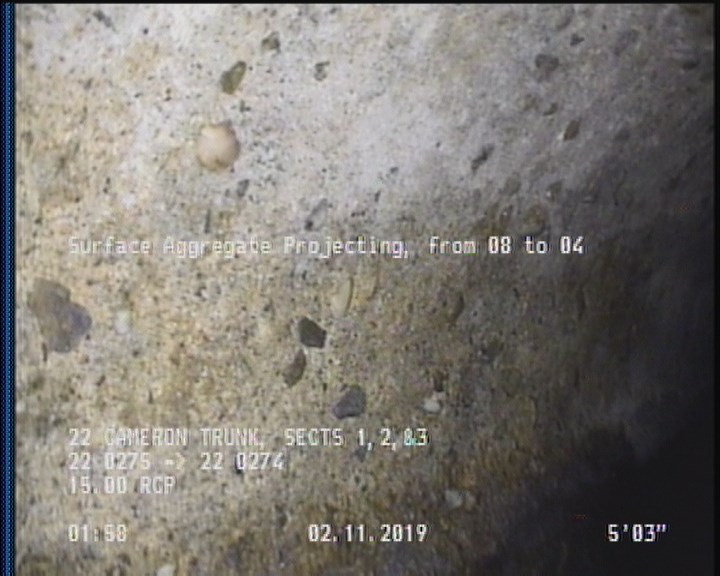

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

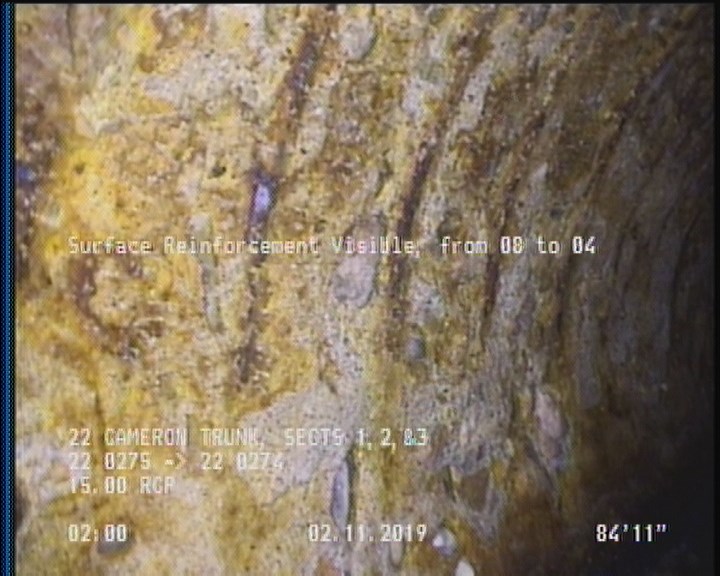

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    84.9 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

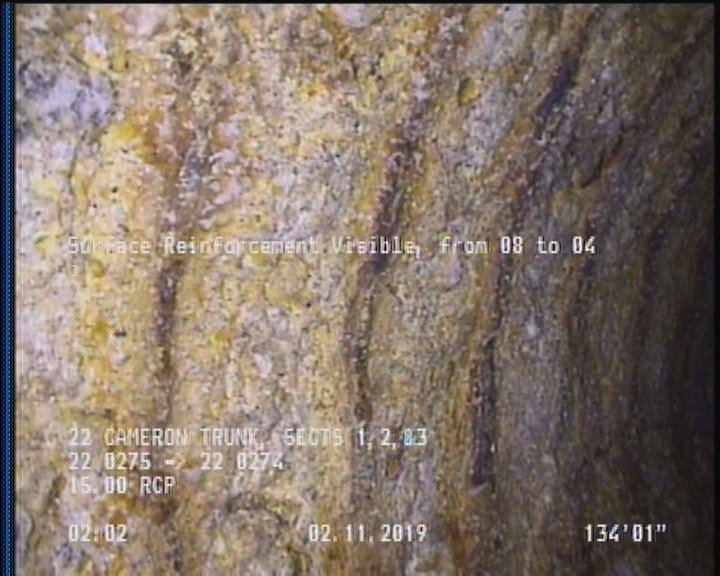

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    134.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

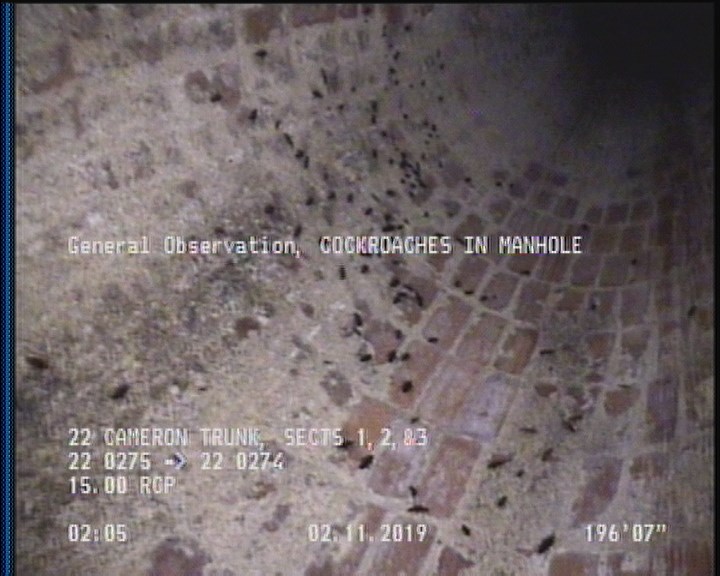

  • General Observation - COCKROACHES IN MANHOLE

    196.6 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P16561Work order 745520

Observations (14)

DistanceCodeObservation
196.6AMH22 0274
5.2SAP—
84.9SRV—
2DAGS—
194.1SAP—
196.6MGOCOCKROACHES IN MANHOLE
0AMH22 0275
134.1SRV—
196.6MGOACTIVE CONNECTION AT MH 9 O'CLOCK
194.1DAGS—
0MWL—
98.4SRV—
194.1SRV—
0MWM—

Properties (6)

additional_info
SC365700
custom_field_two
2
customer
LACSD
datetime
2019-02-11T01:24:59-08:00
documentation
PRO PIPE
is_lateral_inspection
false
