Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 17, 2019, 07:40 AM

  • 22 0239_22 0238 _01172019_000307.mp4

Date
01/16/2019
W/O
745520
Weather
Heavy Rain
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00793
PipeID
P16521
Time
11:40 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6358
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
35
Purpose
Routine Assessment
Project
RFIR_WO_745520_TV22016_JAN2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0239
Downstream MH
22 0238
Dir. of Survey
Downstream
Length Surveyed
385.8 ft.
Total Length
385.8 ft.
Structural Index
2
Structural Quick
322N
Structural Rating
158
O&M Index
3
O&M Quick
4122
O&M Rating
8
Overall Index
2
Overall Quick
—
Overall Rating
166
Pipe schematic from manhole 22 0239 to 22 0238
MH: 22 0239MH: 22 0238downstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 02390 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start25.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"27.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"76.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"85.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"116 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"127.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"152.9 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"182.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"200.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"246.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"264.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"279.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"294.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"324.4 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: NO, 6"330.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"339.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"376.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"379.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"384.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish384.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish384.4 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish385.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE385.8 ft. AMH - Downstream Manhole, Survey Ends - 22 0238385.8 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (4)

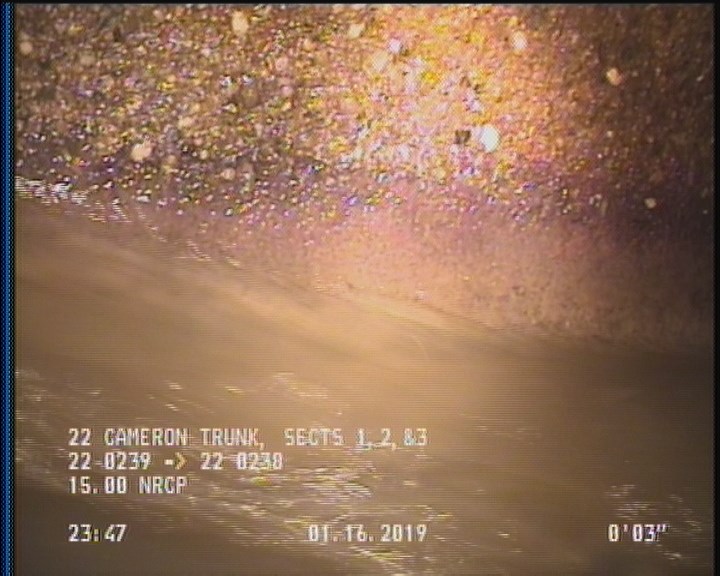

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

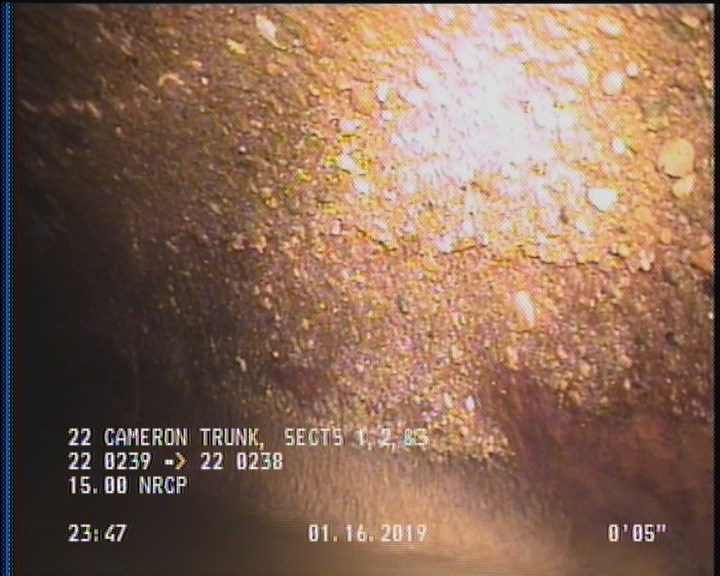

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

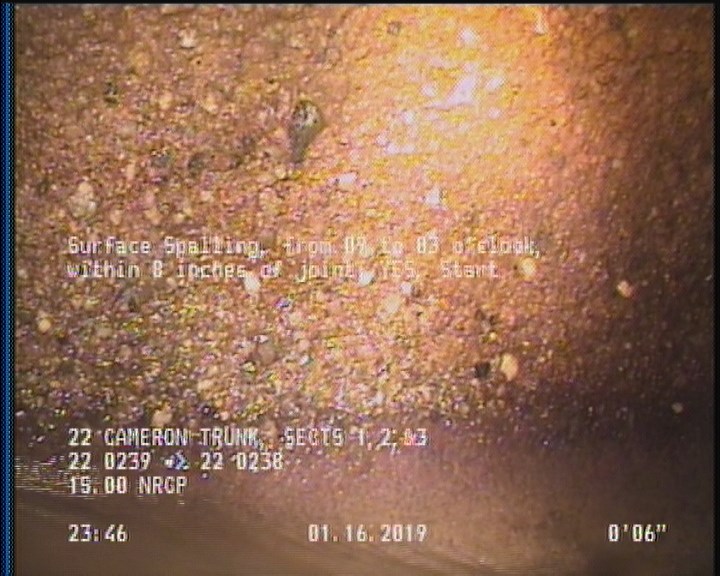

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

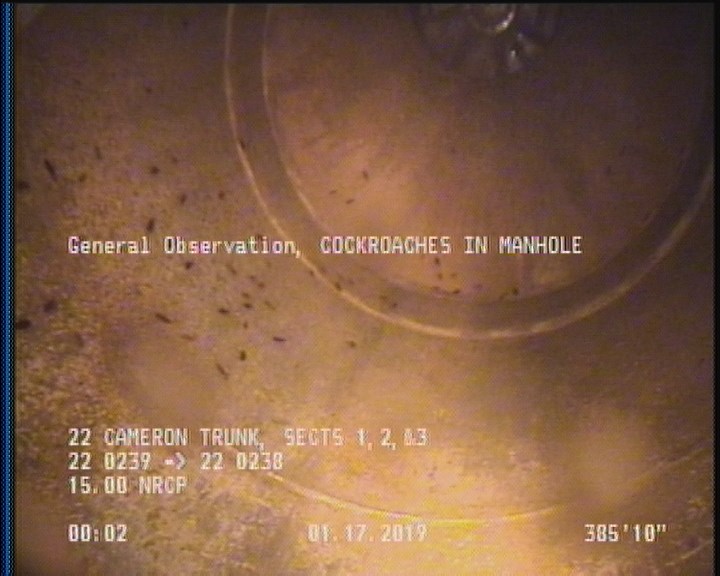

  • General Observation - COCKROACHES IN MANHOLE

    385.8 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P16521Work order 745520

Observations (31)

DistanceCodeObservation
152.9TB—
339.7TFC—
85.4TFC—
246.4TFC—
200.8TFA—
385.8MGOCOCKROACHES IN MANHOLE
2DAGS—
330.9TF—
264.7TFC—
127.9TFC—
384.4SAP—
2SSS—
385.8AMH22 0238
379.7TF—
384.4DAGS—
27.9TFC—
384.4SSS—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MWL—
376.5TFC—
0AMH22 0239
2SAP—
294.5TF—
324.4TB—
279.4TFC—
76.5TFC—
385.8MGOACTIVE CONNECTION AT MH 3 O'CLOCK
182.9TF—
116TFA—
25.3TFC—
0MWM—

Properties (6)

additional_info
SC365674
custom_field_two
2
customer
LACSD
datetime
2019-01-16T23:40:49-08:00
documentation
PRO PIPE
is_lateral_inspection
false
