Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 24, 2019, 06:21 AM

  • 01 0348_01 0347_01232019_224636.mp4

Date
01/23/2019
W/O
745391
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00215
PipeID
P00822
Time
10:21 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5345
Sewer Name
01 NADEAU TRUNK, SECTS 2&1
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
06
Purpose
Routine Assessment
Project
RFIR_WO_745391_TV01270_JAN2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0348
Downstream MH
01 0347
Dir. of Survey
Downstream
Length Surveyed
190.9 ft.
Total Length
190.9 ft.
Structural Index
4
Structural Quick
4300
Structural Rating
12
O&M Index
2
O&M Quick
2F00
O&M Rating
72
Overall Index
2
Overall Quick
—
Overall Rating
84
Pipe schematic from manhole 01 0348 to 01 0347
MH: 01 0348MH: 01 0347downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 03480 ft. MWL - Water Level, 30 %of cross sectional area11 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start12.1 ft. MGO - General Observation - SLIM COAT THROUGHOUT12.7 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES23 ft. FM - Fracture Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES187 ft. FM - Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES190 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish190.9 ft. AMH - Downstream Manhole, Survey Ends - 01 0347

Observation photos (6)

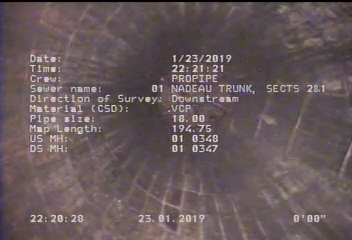

  • Upstream Manhole, Survey Begins - 01 0348

    0 ft. - Upstream Manhole, Survey Begins - 01 0348

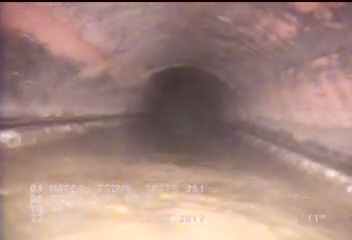

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    11 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

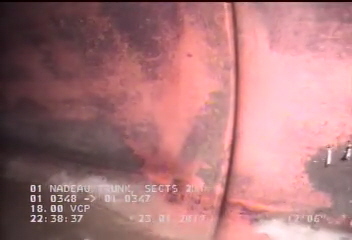

  • General Observation - SLIM COAT THROUGHOUT

    12.1 ft. - General Observation - SLIM COAT THROUGHOUT

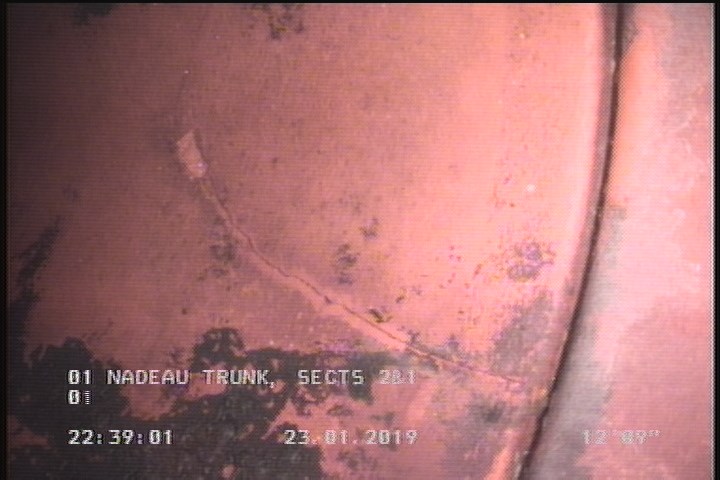

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    12.7 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

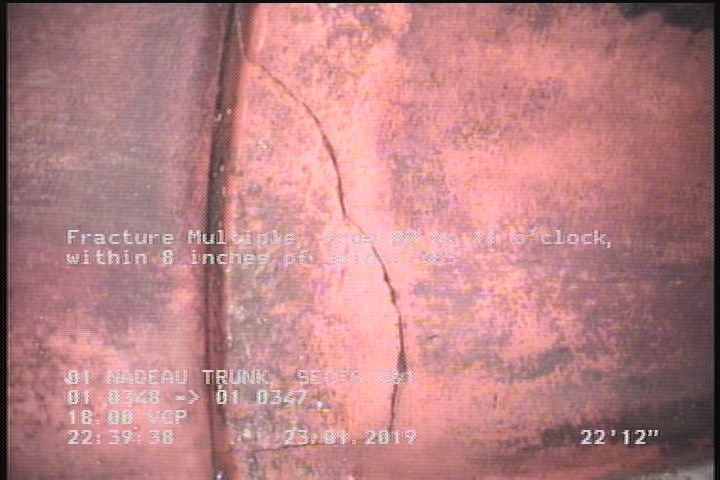

  • Fracture Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES

    23 ft. - Fracture Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES

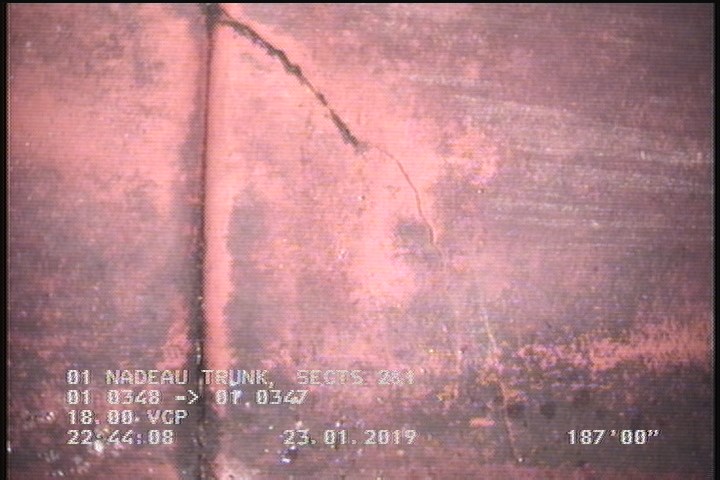

  • Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

    187 ft. - Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

All inspections of P00822Work order 745391

Observations (10)

DistanceCodeObservation
23FM—
0MWM—
190.9AMH01 0347
12.7FM—
190DAGS—
0AMH01 0348
12.1MGOSLIM COAT THROUGHOUT
187FM—
0MWL—
11DAGS—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-01-23T22:21:21-08:00
documentation
PROPIPE
is_lateral_inspection
false
