Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 11, 2019, 10:17 AM

  • 16 0623_16 0622A_10112019_022354.mp4

Date
10/11/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00664
PipeID
P13674
Time
3:17 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7033
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
09
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
16 0622A
Downstream MH
16 0623
Dir. of Survey
Upstream
Length Surveyed
42.7 ft.
Total Length
42.7 ft.
Structural Index
3
Structural Quick
3500
Structural Rating
15
O&M Index
2
O&M Quick
2B00
O&M Rating
30
Overall Index
2
Overall Quick
—
Overall Rating
45
Pipe schematic from manhole 16 0622A to 16 0623
MH: 16 0622AMH: 16 0623upstream0 ft. AMH - Upstream Manhole, Survey Ends - 16 06230 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - CONN @ MH 12 AND 3 O'CLOCK/ACTIVE0 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish23.3 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start33.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS38.6 ft. MGO - General Observation - 65% MAG COATING THROUGHOUT40.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start42.7 ft. AMH - Downstream Manhole, Survey Begins - 16 0622A42.7 ft. MWM - Water Mark, 15 %of cross sectional area42.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE42.7 ft. MGO - General Observation - CONN @ MH 3 O'CLOCK/ACTIVE42.7 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (4)

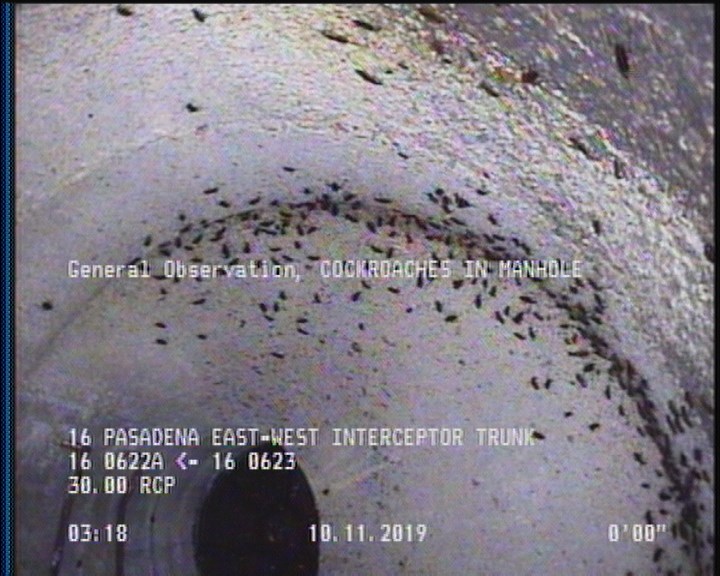

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

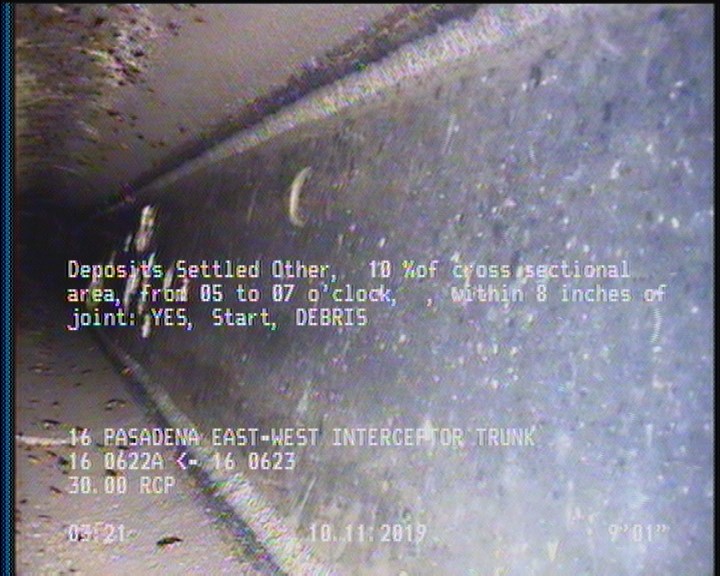

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

    9.1 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

  • Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    19.4 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

  • General Observation - COCKROACHES IN MANHOLE

    42.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13674Work order 792814

Observations (15)

DistanceCodeObservation
0AMH16 0622A
0MWM—
2DAGS—
42.7AMH16 0623
42.7DAGS—
19.4SAV—
0MGOCOCKROACHES IN MANHOLE
4.1MGO65% MAG COATING THROUGHOUT
0MGOCONN @ MH 3 O'CLOCK/ACTIVE
42.7MGOCONN @ MH 12 AND 3 O'CLOCK/ACTIVE
42.7DSZ—
9.1DSZDEBRIS
42.7MGOCOCKROACHES IN MANHOLE
0MWL—
42.7SAV—

Properties (5)

additional_info
SC378702
customer
LACSD
datetime
2019-10-11T03:17:27-07:00
documentation
PRO PIPE
is_lateral_inspection
false
