Wastewater/Activity/PacpInspection/1.0Oct 11, 2019, 10:41 AM
16 0622_16 0621_10112019_025537.mp4
- Date
- 10/11/2019
- W/O
- 792814
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00664
- PipeID
- P13672
- Time
- 3:41 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K7033
- Sewer Name
- 16 PASADENA EAST-WEST INTERCEPTOR TRUNK
- City
- PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_792814_TV16030_OCT2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 16 0622
- Downstream MH
- 16 0621
- Dir. of Survey
- Downstream
- Length Surveyed
- 486.8 ft.
- Total Length
- 486.8 ft.
- Structural Index
- 3
- Structural Quick
- 3R2R
- Structural Rating
- 483
- O&M Index
- 2
- O&M Quick
- 2R00
- O&M Rating
- 194
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 677
Observation photos (3)
2 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

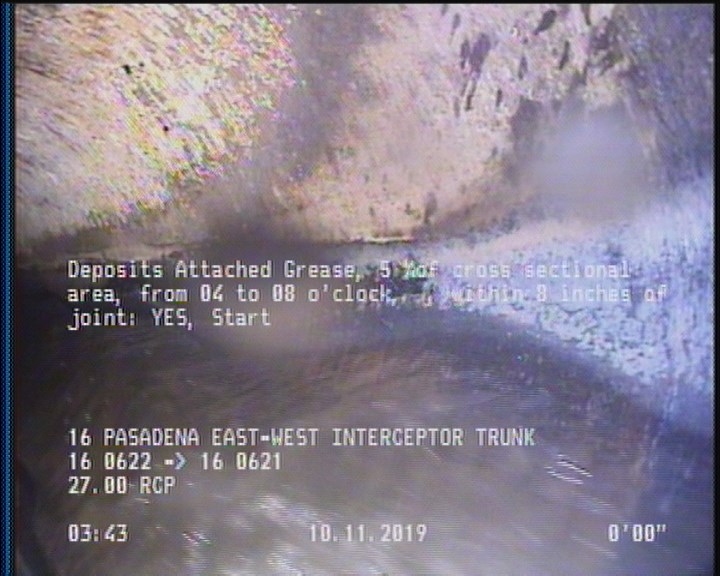

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

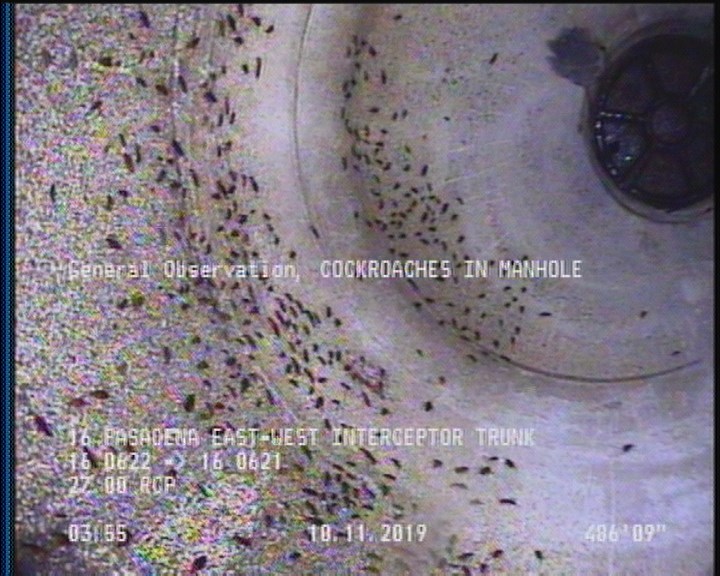

486.8 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 483 | SSS | — |
| 484.9 | DAGS | — |
| 0 | AMH | 16 0622 |
| 483 | SZ | 75% MAG |
| 2 | SZ | 75% MAG |
| 484.9 | SAV | — |
| 486.8 | MGO | CONN @ MH 9 O'CLOCK/ACTIVE |
| 2 | SSS | — |
| 0 | MWL | — |
| 486.8 | MGO | COCKROACHES IN MANHOLE |
| 486.8 | AMH | 16 0621 |
| 2 | SAV | — |
| 0 | MGO | CONN @ MH 9 O'CLOCK/ACTIVE |
| 2 | DAGS | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC378702
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-10-11T03:41:28-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
