Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 14, 2019, 09:58 AM

  • 16 0618_16 0617_10142019_022515.mp4

Date
10/14/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00664
PipeID
P13668
Time
2:58 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7034
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
09
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
16 0618
Downstream MH
16 0617
Dir. of Survey
Downstream
Length Surveyed
461.3 ft.
Total Length
461.3 ft.
Structural Index
3
Structural Quick
3Q2Q
Structural Rating
457
O&M Index
2
O&M Quick
2Q00
O&M Rating
184
Overall Index
2
Overall Quick
—
Overall Rating
641
Pipe schematic from manhole 16 0618 to 16 0617
MH: 16 0618MH: 16 0617downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 16 06182 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG3.7 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start459.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish459.7 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish460 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 65% MAG460 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish461.3 ft. AMH - Downstream Manhole, Survey Ends - 16 0617461.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE461.3 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE

Observation photos (4)

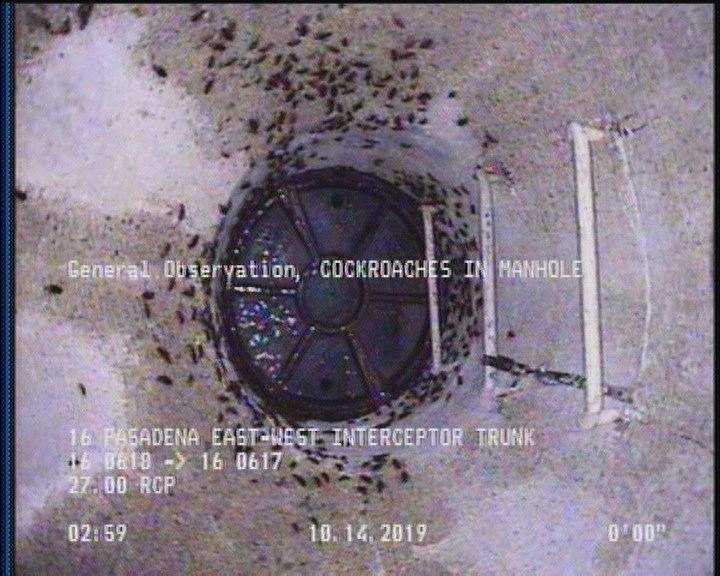

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

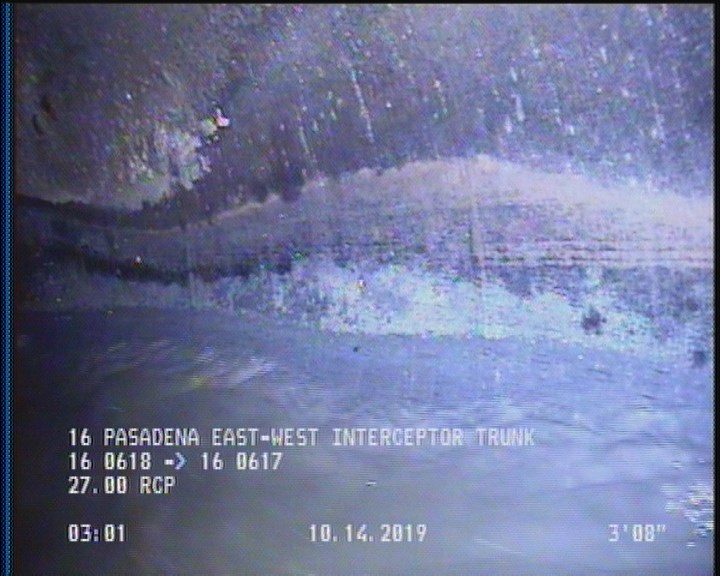

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

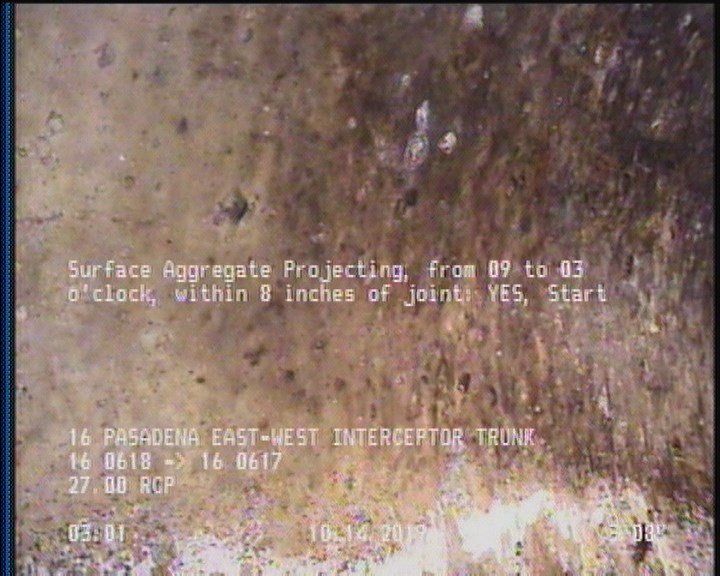

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    3.7 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

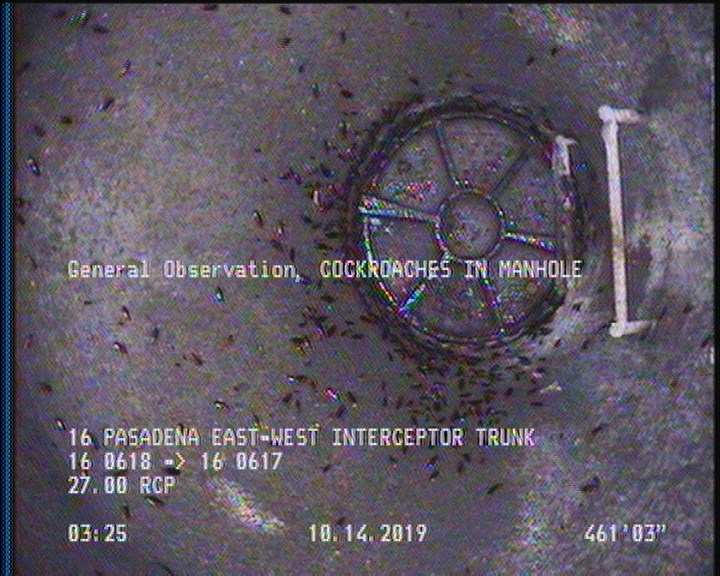

  • General Observation - COCKROACHES IN MANHOLE

    461.3 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13668Work order 792814

Observations (16)

DistanceCodeObservation
0MGOCOCKROACHES IN MANHOLE
459.7DAGS—
2SSS—
459.7SAP—
3.7SAP—
461.3AMH16 0617
0MWM—
461.3MGOCOCKROACHES IN MANHOLE
0MWL—
2DAGS—
0MGOCONN @ MH 9 O'CLOCK/ACTIVE
0AMH16 0618
460SZ65% MAG
2SZ65% MAG
460SSS—
461.3MGOCONN @ MH 9 O'CLOCK/ACTIVE

Properties (6)

additional_info
SC378703
custom_field_two
2
customer
LACSD
datetime
2019-10-14T02:58:40-07:00
documentation
PRO PIPE
is_lateral_inspection
false
