Wastewater/Activity/PacpInspection/1.0Oct 21, 2019, 10:51 AM
16 0617_16 0616_10212019_031751.mp4
- Date
- 10/21/2019
- W/O
- 792814
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00664
- PipeID
- P13667
- Time
- 3:51 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K7049
- Sewer Name
- 16 PASADENA EAST-WEST INTERCEPTOR TRUNK
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_792814_TV16030_OCT2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 16 0617
- Downstream MH
- 16 0616
- Dir. of Survey
- Downstream
- Length Surveyed
- 314.4 ft.
- Total Length
- 314.4 ft.
- Structural Index
- 3
- Structural Quick
- 3K2K
- Structural Rating
- 310
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 124
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 434
Observation photos (3)
2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

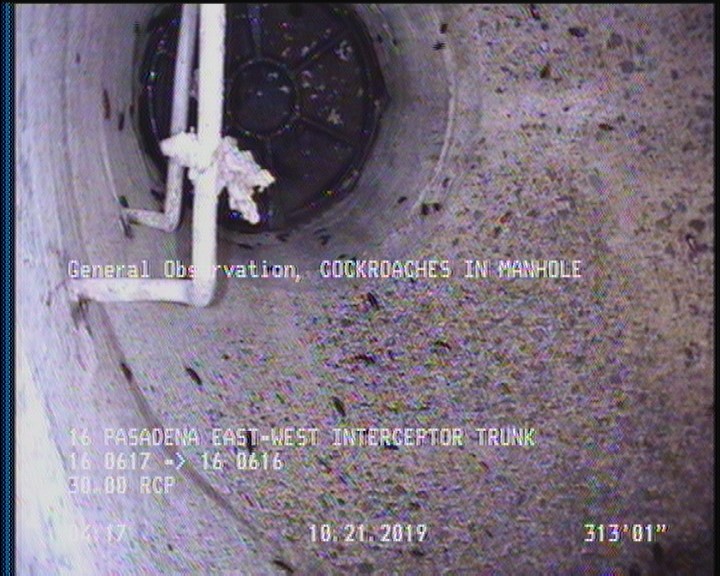

313 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 236.1 | TB | OPEN |
| 2 | SZ | 70% MAG |
| 313 | MGO | COCKROACHES IN MANHOLE |
| 145 | TB | OPEN |
| 2 | SSS | — |
| 0 | MWM | — |
| 314.4 | AMH | 16 0616 |
| 2 | SAP | — |
| 313 | MGO | CONN @ MH 9 O'CLOCK/ACTIVE |
| 2 | DAGS | — |
| 0 | MGO | CONN @ MH 9 O'CLOCK/ACTIVE |
| 313 | SAP | — |
| 312 | SSS | — |
| 312 | SZ | 70% MAG |
| 0 | AMH | 16 0617 |
| 0 | MWL | — |
| 313 | DAGS | — |
Properties (6)
- additional_info
- SC378718
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-10-21T03:51:16-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
