Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 18, 2019, 09:38 AM

  • 16 0616_16 0615_10182019_021819.mp4

Date
10/18/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00664
PipeID
P13666
Time
2:38 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7048
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
09
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
16 0615
Downstream MH
16 0616
Dir. of Survey
Upstream
Length Surveyed
364.4 ft.
Total Length
364.4 ft.
Structural Index
3
Structural Quick
3M2M
Structural Rating
360
O&M Index
2
O&M Quick
2M00
O&M Rating
144
Overall Index
2
Overall Quick
—
Overall Rating
504
Pipe schematic from manhole 16 0615 to 16 0616
MH: 16 0615MH: 16 0616upstream0 ft. MGO - General Observation - CONN @ MH 3 O'CLOCK/ACTIVE0 ft. AMH - Upstream Manhole, Survey Ends - 16 06160 ft. MGO - General Observation - COCKROACHES IN MANHOLE2.4 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 75% MAG2.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2.6 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish2.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish45.2 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6" - 15% GREASE/OPEN86 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6" - 40% GREASE/OPEN142.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6" - OPEN155.4 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6" - 25% GREASE181.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"239.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"362.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start362.4 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG362.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start362.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start364.4 ft. MWM - Water Mark, 15 %of cross sectional area364.4 ft. AMH - Downstream Manhole, Survey Begins - 16 0615364.4 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (3)

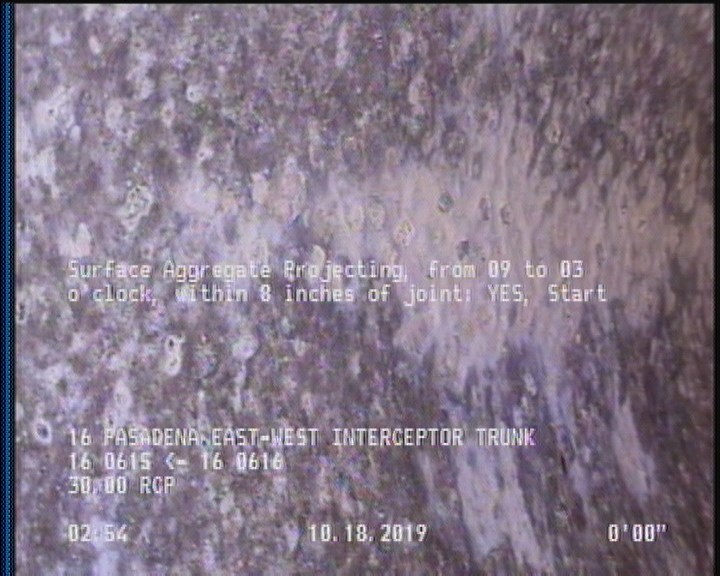

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

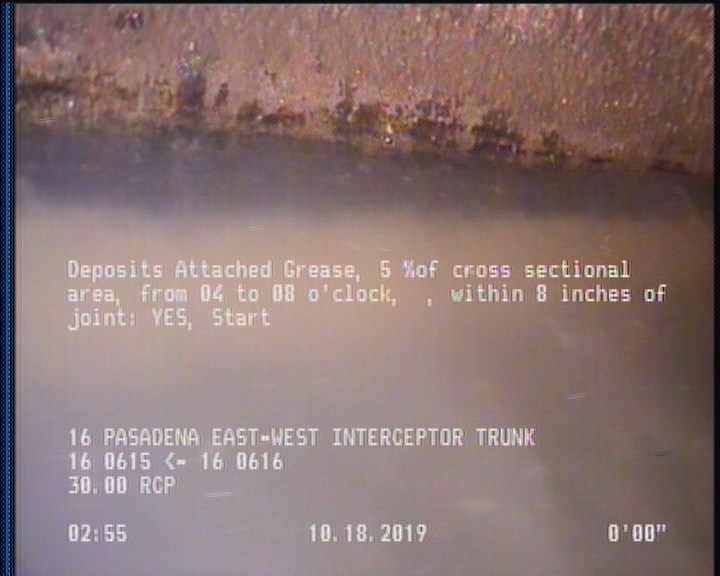

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

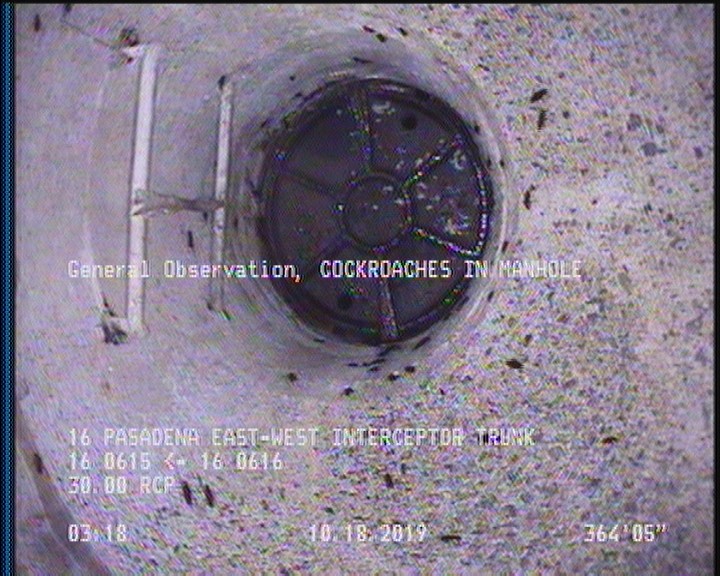

  • General Observation - COCKROACHES IN MANHOLE

    364.4 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13666Work order 792814

Observations (20)

DistanceCodeObservation
319.2TB15% GREASE/OPEN
0MWM—
183.1TFC—
0AMH16 0615
2SAP—
364.4MGOCONN @ MH 3 O'CLOCK/ACTIVE
209TB25% GREASE
2SZ75% MAG
125.3TB—
361.8SAP—
362SZ75% MAG
278.4TB40% GREASE/OPEN
2SSS—
361.8DAGS—
2DAGS—
364.4AMH16 0616
362SSS—
364.4MGOCOCKROACHES IN MANHOLE
0MWL—
222.3TBOPEN

Properties (6)

additional_info
SC378717
custom_field_two
2
customer
LACSD
datetime
2019-10-18T02:38:19-07:00
documentation
PRO PIPE
is_lateral_inspection
false
