Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 18, 2019, 07:48 AM

  • 16 0615_16 0614_10182019_002114.mp4

Date
10/18/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00664
PipeID
P13665
Time
12:48 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7048
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
09
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
16 0615
Downstream MH
16 0614
Dir. of Survey
Downstream
Length Surveyed
646.8 ft.
Total Length
646.8 ft.
Structural Index
3
Structural Quick
3Y2Y
Structural Rating
642
O&M Index
2
O&M Quick
2Y00
O&M Rating
258
Overall Index
2
Overall Quick
—
Overall Rating
900
Pipe schematic from manhole 16 0615 to 16 0614
MH: 16 0615MH: 16 0614downstream0 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 06150 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. MGO - General Observation - PEELING AND FLKAING THROUGHOUT2 ft. MGO - General Observation - MAG COATING THROUGHOUT2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start204 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"268.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"308.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"388.9 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"444 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6" - UNKNOWN453.5 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"509.9 ft. TBI - Tap Break-In Intruding, at 10 o'clock, -, -, within 8 inches of joint: YES, 4", .5", 6" - OPEN643 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80% MAG644.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE644.3 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish644.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish645 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish646.8 ft. AMH - Downstream Manhole, Survey Ends - 16 0614646.8 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE

Observation photos (5)

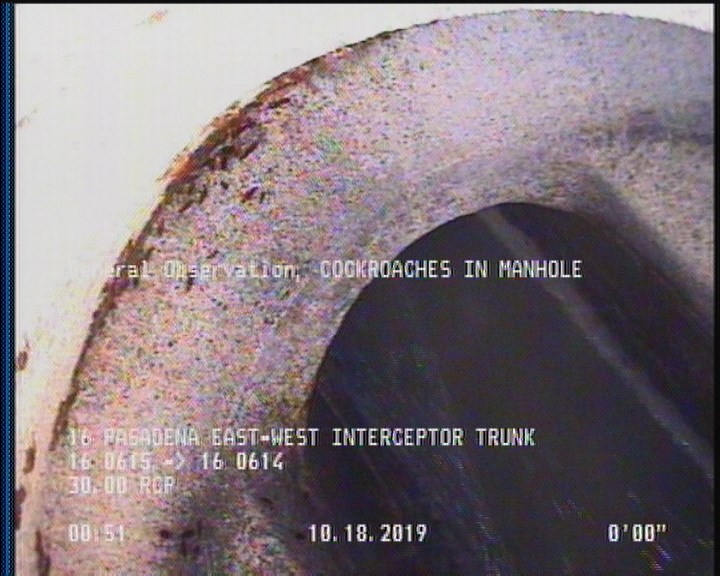

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

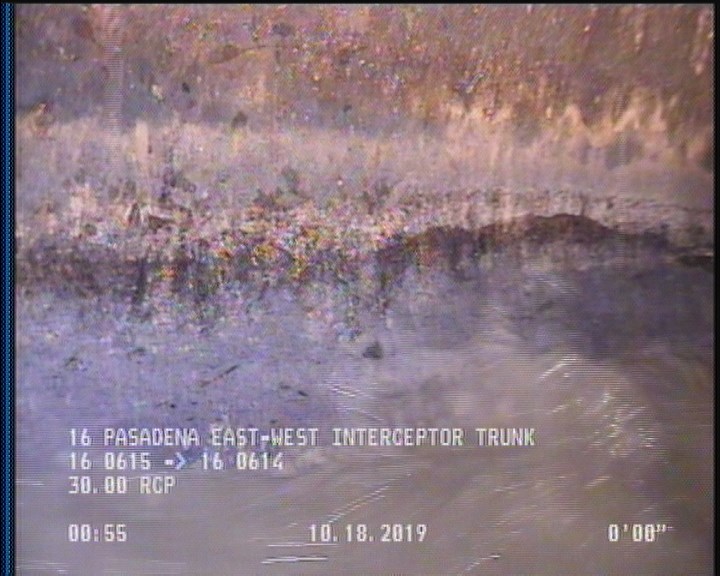

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • General Observation - MAG COATING THROUGHOUT

    2 ft. - General Observation - MAG COATING THROUGHOUT

  • General Observation - COCKROACHES IN MANHOLE

    644.3 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13665Work order 792814

Observations (25)

DistanceCodeObservation
2SZ70% MAG
308.8TFC—
644.3MGOCOCKROACHES IN MANHOLE
643SZ80% MAG
453.5TBA—
2SAP—
204TFC—
0MGOCONN @ MH 9 O'CLOCK/ACTIVE
0MWM—
2DAGS—
2MGOPEELING AND FLKAING THROUGHOUT
268.4TFC—
0AMH16 0615
644.3SAP—
2MGOMAG COATING THROUGHOUT
509.9TBIOPEN
646.8AMH16 0614
645SSS—
0MWL—
388.9TBA—
444TBUNKNOWN
644.3DAGS—
0MGOCOCKROACHES IN MANHOLE
646.8MGOCONN @ MH 9 O'CLOCK/ACTIVE
2SSS—

Properties (6)

additional_info
SC378717
custom_field_two
2
customer
LACSD
datetime
2019-10-18T00:48:37-07:00
documentation
PRO PIPE
is_lateral_inspection
false
