Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 21, 2019, 09:11 AM

  • 16 0609_16 0608_10212019_013307.mp4

Date
10/21/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00664
PipeID
P13659
Time
2:11 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7049
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
10
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
16 0609
Downstream MH
16 0608
Dir. of Survey
Downstream
Length Surveyed
420.3 ft.
Total Length
420.3 ft.
Structural Index
3
Structural Quick
3O2P
Structural Rating
412
O&M Index
2
O&M Quick
2P00
O&M Rating
166
Overall Index
2
Overall Quick
—
Overall Rating
578
Pipe schematic from manhole 16 0609 to 16 0608
MH: 16 0609MH: 16 0608downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 06090 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG6.3 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start192.1 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN249.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"296.4 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"417 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish417 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 75% MAG418.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE418.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish418.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish419.8 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE420.3 ft. AMH - Downstream Manhole, Survey Ends - 16 0608

Observation photos (4)

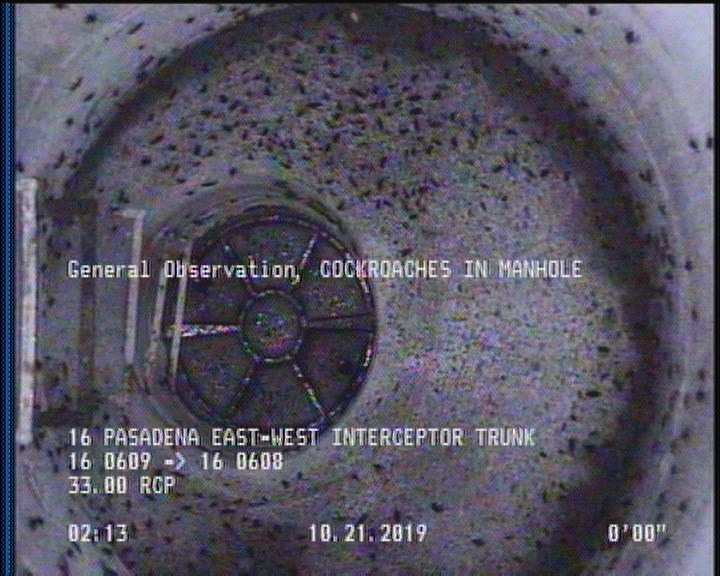

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

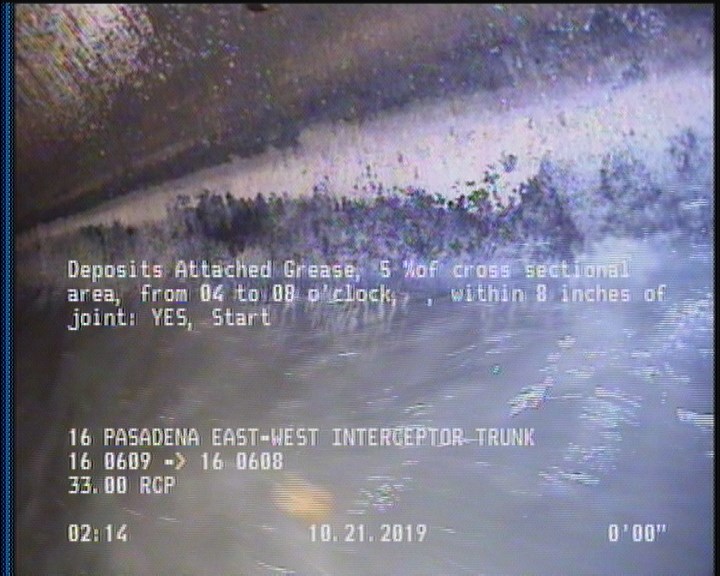

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

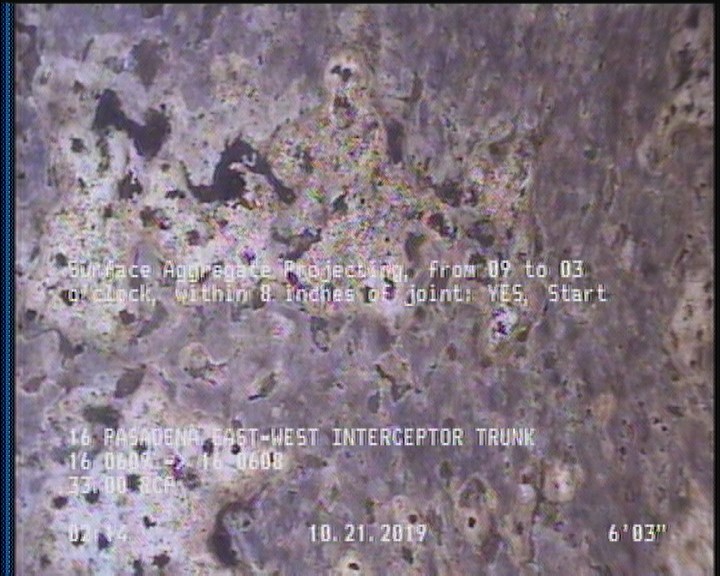

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    6.3 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

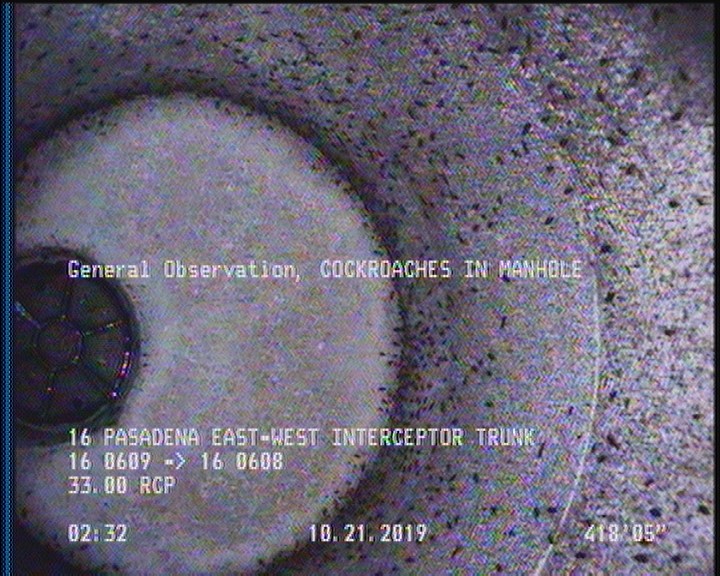

  • General Observation - COCKROACHES IN MANHOLE

    418.4 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13659Work order 792814

Observations (19)

DistanceCodeObservation
0MWM—
419.8MGOCONN @ MH 9 O'CLOCK/ACTIVE
417SSS—
6.3SAP—
418.4MGOCOCKROACHES IN MANHOLE
418.4SAP—
2DAGS—
0AMH16 0609
418.4DAGS—
2SSS—
2SZ75% MAG
420.3AMH16 0608
296.4TBA—
417SZ75% MAG
192.1TBOPEN
249.3TBA—
0MGOCONN @ MH 9 O'CLOCK/ACTIVE
0MGOCOCKROACHES IN MANHOLE
0MWL—

Properties (6)

additional_info
SC378718
custom_field_two
2
customer
LACSD
datetime
2019-10-21T02:11:50-07:00
documentation
PRO PIPE
is_lateral_inspection
false
