Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 21, 2019, 09:36 AM

  • 16 0608_16 0607 _10212019_020153.mp4

Date
10/21/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00664
PipeID
P13658
Time
2:36 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7049
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
10
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Width
39 in.
Upstream MH
16 0608
Downstream MH
16 0607
Dir. of Survey
Downstream
Length Surveyed
372.6 ft.
Total Length
372.6 ft.
Structural Index
3
Structural Quick
3N2N
Structural Rating
367
O&M Index
2
O&M Quick
2N00
O&M Rating
148
Overall Index
2
Overall Quick
—
Overall Rating
515
Pipe schematic from manhole 16 0608 to 16 0607
MH: 16 0608MH: 16 0607downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 16 06082 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG5.6 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start179.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"370.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish370.1 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish371 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% MAG371 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish372.6 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE372.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE372.6 ft. AMH - Downstream Manhole, Survey Ends - 16 0607

Observation photos (4)

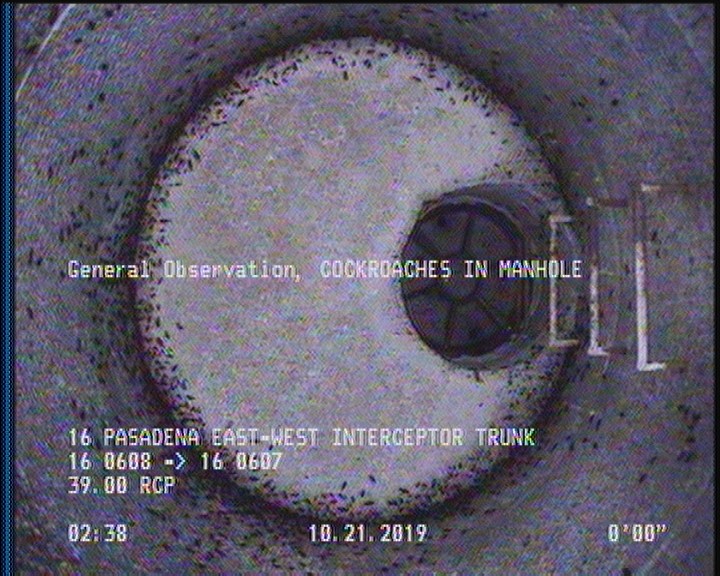

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

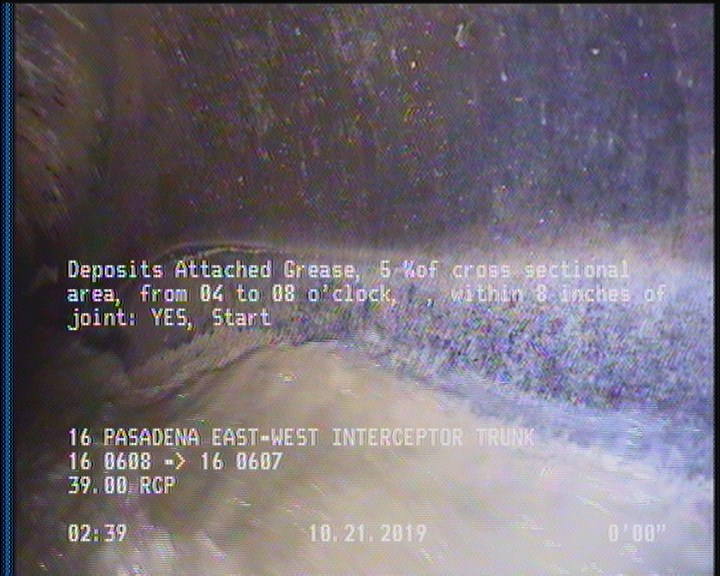

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

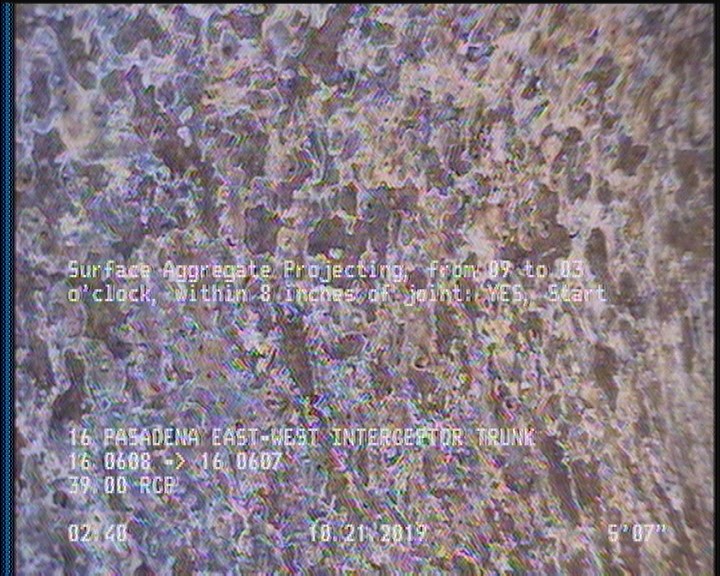

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    5.6 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

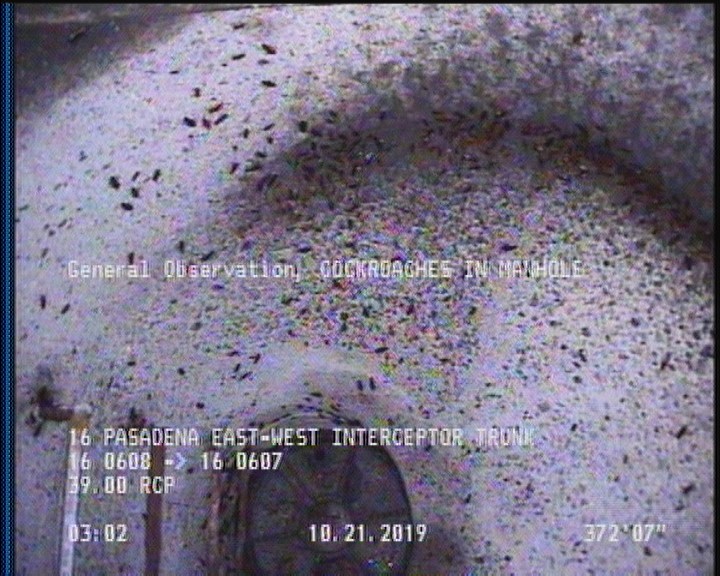

  • General Observation - COCKROACHES IN MANHOLE

    372.6 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13658Work order 792814

Observations (17)

DistanceCodeObservation
371SZ70% MAG
2SSS—
370.1DAGS—
2DAGS—
372.6MGOCONN @ MH 9 O'CLOCK/ACTIVE
372.6MGOCOCKROACHES IN MANHOLE
179.3TBA—
0MGOCOCKROACHES IN MANHOLE
0MWL—
372.6AMH16 0607
0MWM—
5.6SAP—
0MGOCONN @ MH 9 O'CLOCK/ACTIVE
370.1SAP—
371SSS—
2SZ70% MAG
0AMH16 0608

Properties (6)

additional_info
SC378718
custom_field_two
2
customer
LACSD
datetime
2019-10-21T02:36:32-07:00
documentation
PRO PIPE
is_lateral_inspection
false
