Wastewater/Activity/PacpInspection/1.0Oct 22, 2019, 04:25 AM
16 0607_16 0606 _10212019_203644.mp4
- Date
- 10/21/2019
- W/O
- 792814
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00664
- PipeID
- P13657
- Time
- 9:25 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K7050
- Sewer Name
- 16 PASADENA EAST-WEST INTERCEPTOR TRUNK
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_792814_TV16030_OCT2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Width
- 39 in.
- Upstream MH
- 16 0607
- Downstream MH
- 16 0606
- Dir. of Survey
- Downstream
- Length Surveyed
- 356.6 ft.
- Total Length
- 356.6 ft.
- Structural Index
- 3
- Structural Quick
- 3M2M
- Structural Rating
- 350
- O&M Index
- 2
- O&M Quick
- 2M11
- O&M Rating
- 141
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 491
Observation photos (3)

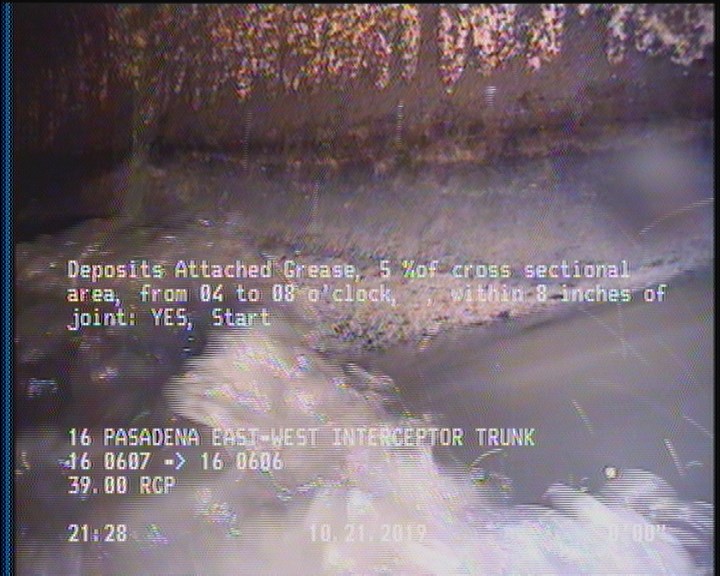

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

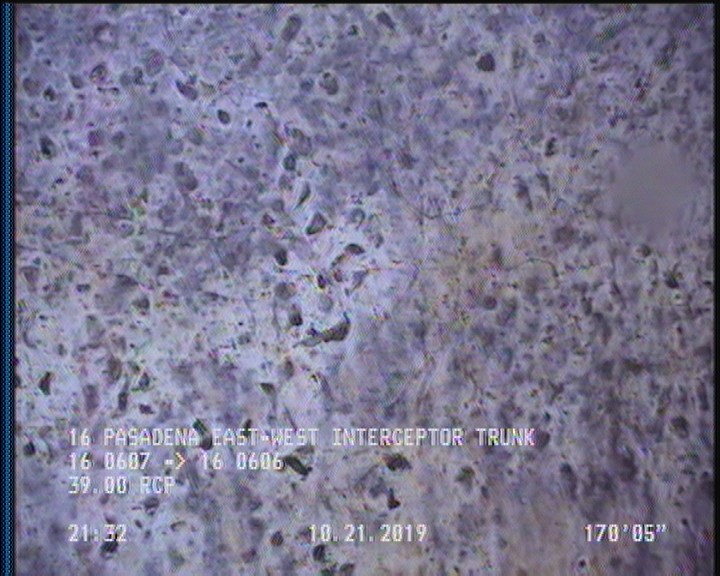

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

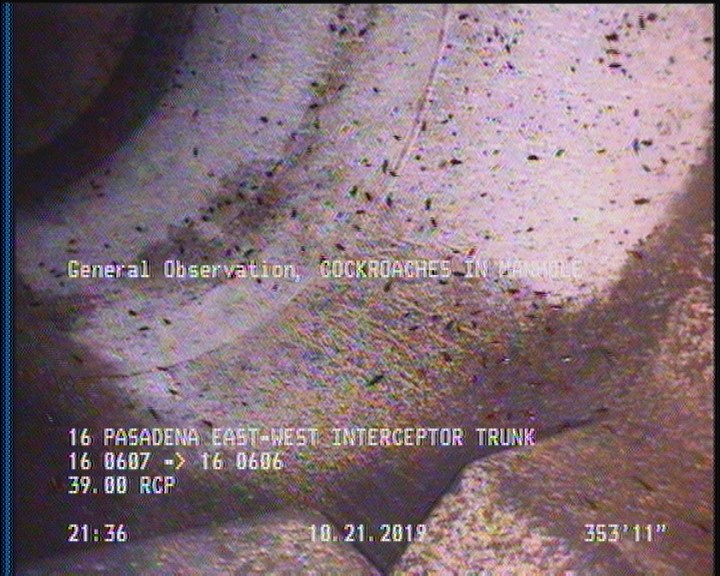

353.9 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 2 | DAGS | — |
| 2 | SAP | — |
| 0 | AMH | 16 0607 |
| 356.6 | AMH | 16 0606 |
| 352 | SSS | — |
| 2 | VC | @ MH |
| 356.6 | MGO | CONN @ MH 9 O'CLOCK/ACTIVE |
| 259.6 | TBA | — |
| 0 | MWM | — |
| 353.9 | MGO | COCKROACHES IN MANHOLE |
| 355 | SZ | 70% MAG |
| 353.9 | SAP | — |
| 0 | MGO | CONN @ MH 9 O'CLOCK/ACTIVE |
| 0 | MWL | — |
| 353.9 | DAGS | — |
| 2 | SZ | 70% MAG |
| 38.6 | TBA | — |
Properties (6)
- additional_info
- SC378719
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-10-21T21:25:14-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
