Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 22, 2019, 05:06 AM

  • 16 0606_16 0605 _10212019_204846.mp4

Date
10/21/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00664
PipeID
P13656
Time
10:06 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7050
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
10
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Width
39 in.
Upstream MH
16 0606
Downstream MH
16 0605
Dir. of Survey
Downstream
Length Surveyed
417.2 ft.
Total Length
417.2 ft.
Structural Index
3
Structural Quick
3O2O
Structural Rating
410
O&M Index
2
O&M Quick
2P00
O&M Rating
166
Overall Index
2
Overall Quick
—
Overall Rating
576
Pipe schematic from manhole 16 0606 to 16 0605
MH: 16 0606MH: 16 0605downstream0 ft. AMH - Upstream Manhole, Survey Begins - 16 06060 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. MGO - General Observation - PEELING AND FLAKING THROUGHOUT2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start71.4 ft. MGO - General Observation - 75% MAG COATING THROUGHOUT112.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"297.5 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"414 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish415.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE415.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish415.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish415.4 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE417.2 ft. AMH - Downstream Manhole, Survey Ends - 16 0605

Observation photos (4)

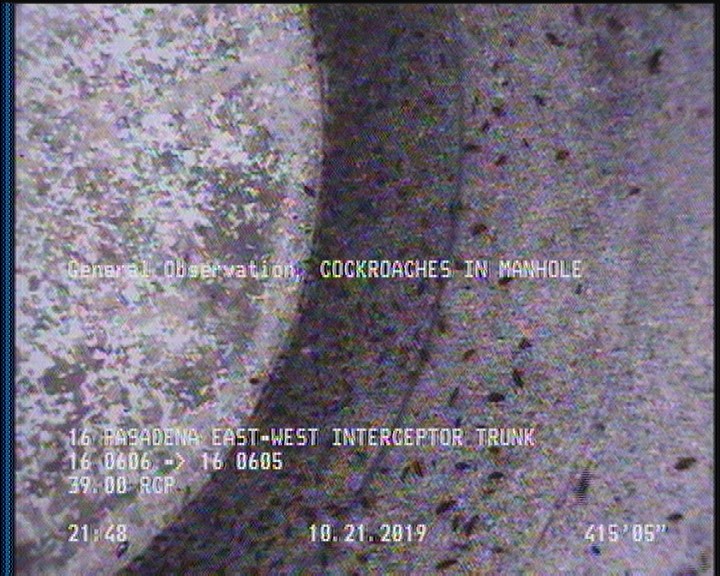

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

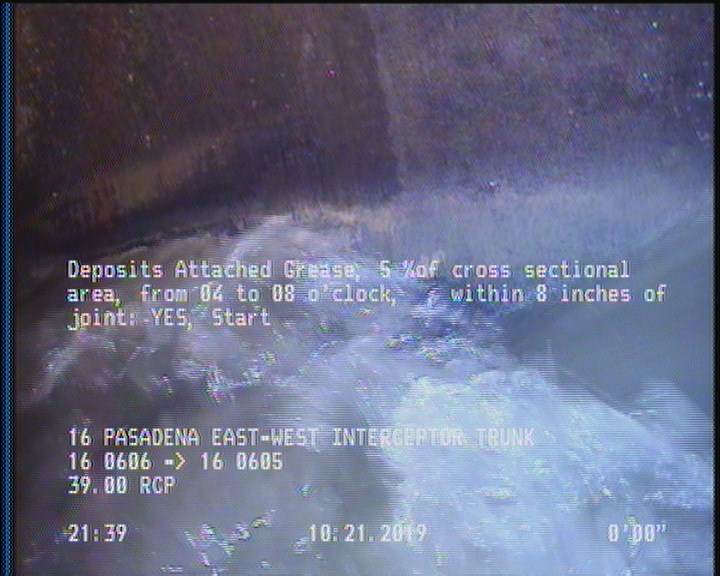

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

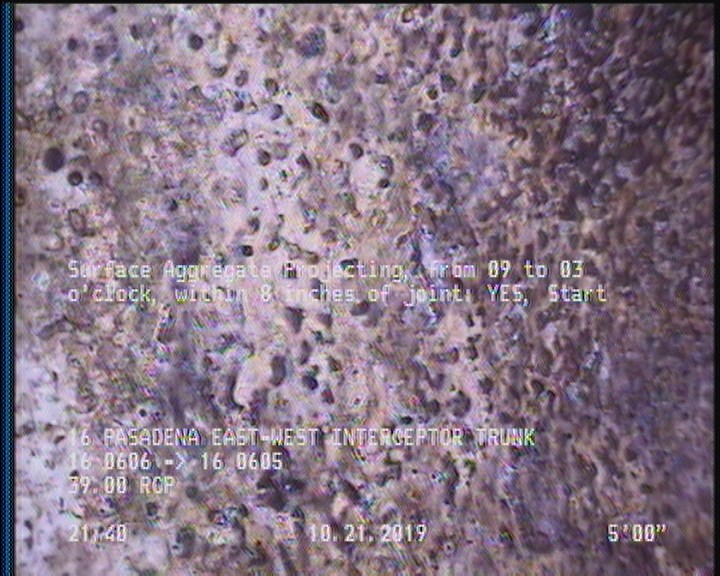

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    5 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

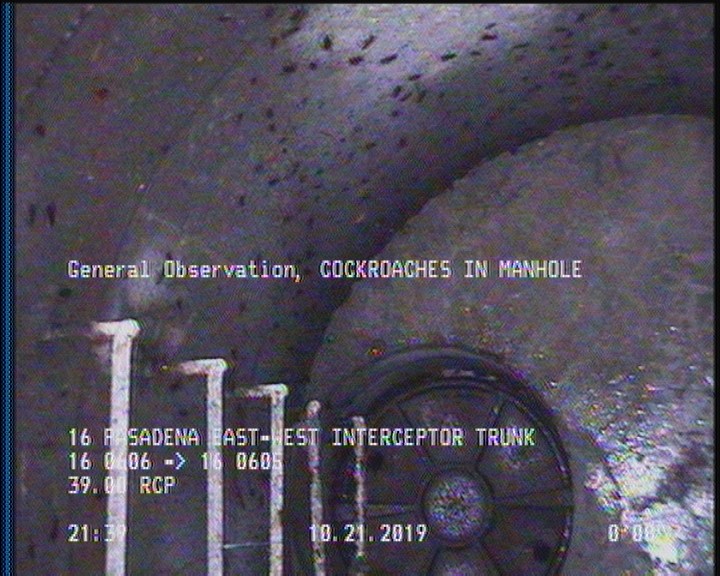

  • General Observation - COCKROACHES IN MANHOLE

    415.4 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13656Work order 792814

Observations (18)

DistanceCodeObservation
414SSS—
415.4MGOCOCKROACHES IN MANHOLE
0AMH16 0606
0MWL—
415.4DAGS—
415.4SAP—
415.4MGOCONN @ MH 9 O'CLOCK/ACTIVE
417.2AMH16 0605
112.1TFC—
2MGOPEELING AND FLAKING THROUGHOUT
297.5TBA—
2SSS—
0MGOCONN @ MH 9 O'CLOCK/ACTIVE
5SAP—
2DAGS—
71.4MGO75% MAG COATING THROUGHOUT
0MWM—
0MGOCOCKROACHES IN MANHOLE

Properties (6)

additional_info
S. LOPEZ
custom_field_two
2
customer
LACSD
datetime
2019-10-21T22:06:27-07:00
documentation
PRO PIPE
is_lateral_inspection
false
