Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 22, 2019, 06:27 AM

  • 16 0602_16 0601 _10212019_225501.mp4

Date
10/21/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOLPEZ
Sewer ID
Z00664
PipeID
P13652
Time
11:27 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7050
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
10
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
42 in.
Width
42 in.
Upstream MH
16 0602
Downstream MH
16 0601
Dir. of Survey
Downstream
Length Surveyed
809.7 ft.
Total Length
809.7 ft.
Structural Index
2
Structural Quick
312_
Structural Rating
325
O&M Index
2
O&M Quick
2D00
O&M Rating
54
Overall Index
2
Overall Quick
—
Overall Rating
379
Pipe schematic from manhole 16 0602 to 16 0601
MH: 16 0602MH: 16 0601downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 06020 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 80% MAG7.9 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start61 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"101.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"150.1 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN206.4 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN228.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS263.5 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN302.8 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"351.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN358.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish407.7 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN447.8 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"504.6 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"552.5 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"609.4 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6", 6" - OPEN641.1 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN696.9 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"805 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish806 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80% MAG806.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE806.7 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish806.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish809.7 ft. AMH - Downstream Manhole, Survey Ends - 16 0601809.7 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE

Observation photos (3)

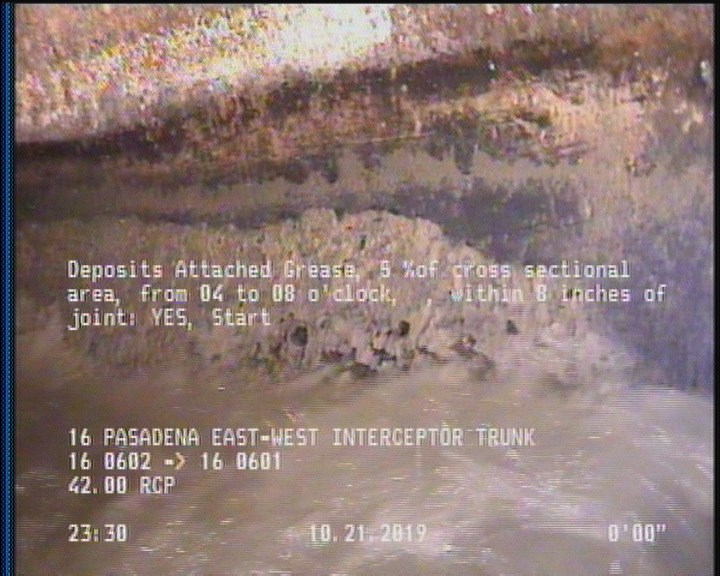

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    7.9 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

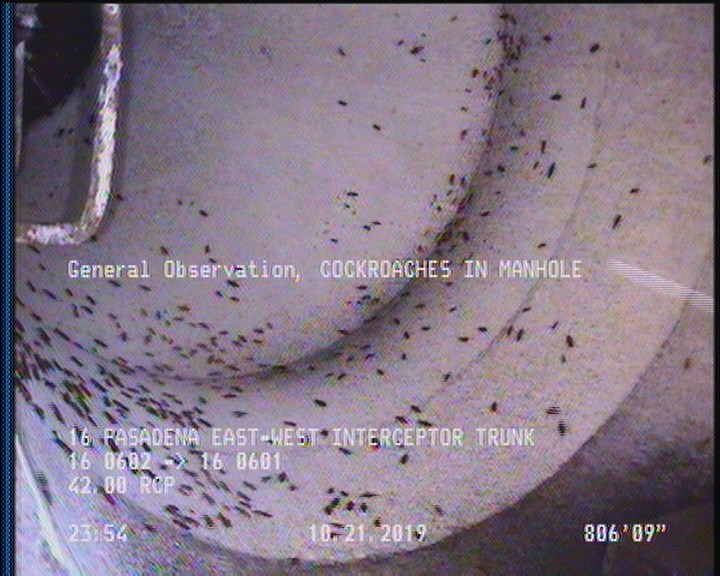

  • General Observation - COCKROACHES IN MANHOLE

    806.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13652Work order 792814

Observations (31)

DistanceCodeObservation
806.7MGOCOCKROACHES IN MANHOLE
228.6DSZDEBRIS
351.6TBOPEN
263.5TBOPEN
806SZ80% MAG
7.9SAV—
2DAGS—
805SSS—
809.7AMH16 0601
447.8TBA—
61TBA—
552.5TB—
2SSS—
302.8TBA—
0MWM—
0AMH16 0602
0MGOCONN @ MH 9 O'CLOCK/ACTIVE
609.4TBOPEN
809.7MGOCONN @ MH 9 O'CLOCK/ACTIVE
150.1TBOPEN
407.7TBOPEN
358.6DSZ—
101.3TBA—
206.4TBOPEN
2SZ80% MAG
806.7SAV—
504.6TBA—
696.9TBA—
806.7DAGS—
641.1TBOPEN
0MWL—

Properties (6)

additional_info
SC378719
custom_field_two
2
customer
LACSD
datetime
2019-10-21T23:27:43-07:00
documentation
PRO PIPE
is_lateral_inspection
false
