Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 22, 2019, 07:37 AM

  • 16 0601_16 0600 _10222019_001910.mp4

Date
10/22/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00664
PipeID
P13651
Time
12:37 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7050
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
10
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
42 in.
Width
42 in.
Upstream MH
16 0601
Downstream MH
16 0600
Dir. of Survey
Downstream
Length Surveyed
1187.9 ft.
Total Length
1187.9 ft.
Structural Index
2
Structural Quick
312n
Structural Rating
477
O&M Index
2
O&M Quick
2211
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
482
Pipe schematic from manhole 16 0601 to 16 0600
MH: 16 0601MH: 16 0600downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 06012 ft. VC - Vermin Cockroach, within 8 inches of joint: YES - @ MH2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. MGO - General Observation - PEELING AND FLAKING THROUGHOUT2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - 70% MAG COATING THROUGHOUT21.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start87.4 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"224 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN325.4 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN529.9 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"621 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS624.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"821 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"828.2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish904.1 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN1072.4 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN1185 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1186.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish1186.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish1187.9 ft. AMH - Downstream Manhole, Survey Ends - 16 06001187.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

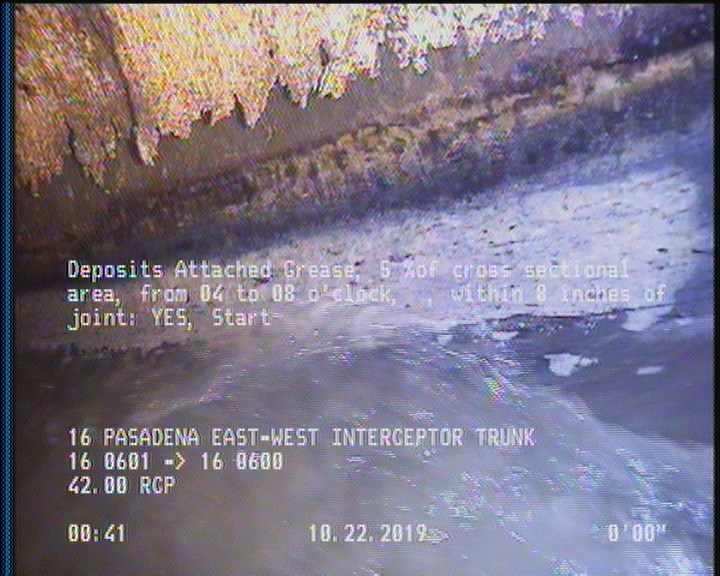

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

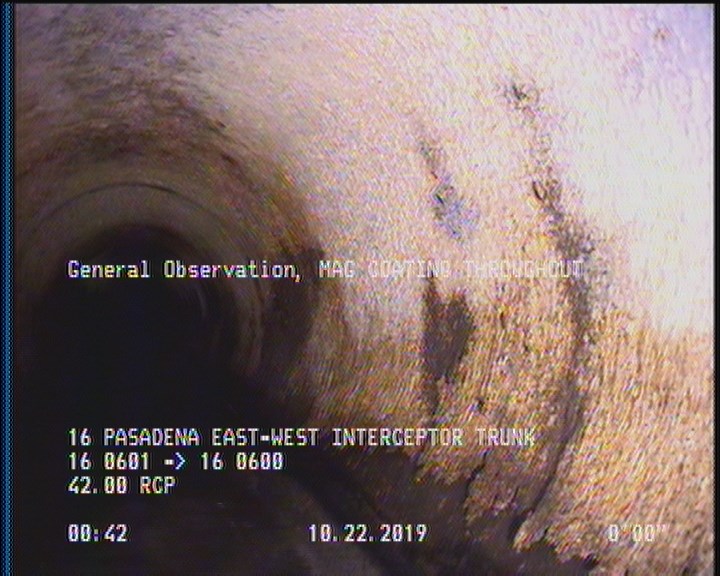

  • General Observation - 70% MAG COATING THROUGHOUT

    2 ft. - General Observation - 70% MAG COATING THROUGHOUT

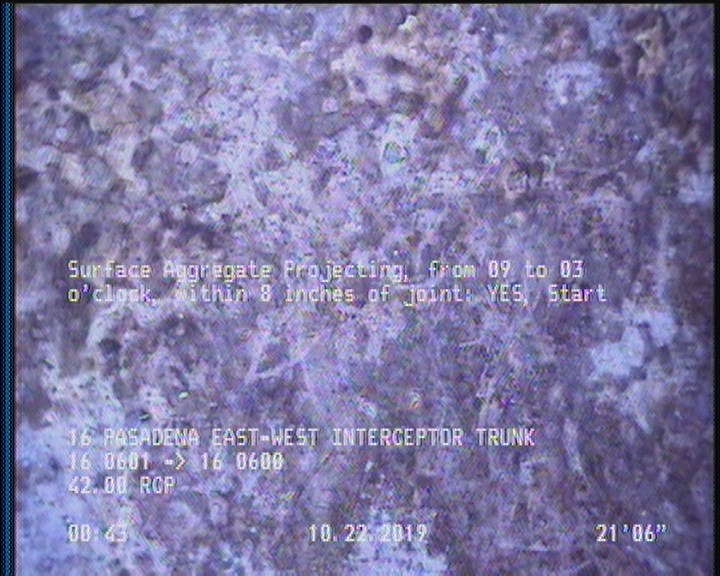

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    21.5 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • General Observation - COCKROACHES IN MANHOLE

    1187.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13651Work order 792814

Observations (24)

DistanceCodeObservation
2VC@ MH
904.1TBOPEN
21.5SAP—
1186.4DAGS—
1187.9AMH16 0600
2DAGS—
1072.4TBOPEN
2MGOPEELING AND FLAKING THROUGHOUT
0MWM—
1187.9MGOCOCKROACHES IN MANHOLE
2SSS—
0MWL—
0AMH16 0601
621DSZDEBRIS
224TBOPEN
325.4TBOPEN
828.2DSZ—
821TBA—
2MGO70% MAG COATING THROUGHOUT
87.4TBA—
624.3TBA—
1186.4SAP—
1185SSS—
529.9TBA—

Properties (6)

additional_info
SC378719
custom_field_two
2
customer
LACSD
datetime
2019-10-22T00:37:32-07:00
documentation
PRO PIPE
is_lateral_inspection
false
